Mono 160X160 Cog Stn Gray Graphic LCD Display for Electrical Instrument Blacklight RA8835 LCD
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Royal Display |
| Certification: | SGS ROHS |
| Model Number: | RYP320240B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| DOT Format: | 320X240 | Outline (mm): | 160X109 |
|---|---|---|---|
| Backlight Color: | White | Power Supply: | 3V |
| IC Package: | COG/ COB | Viewing Direction: | 12:00 |
| Appearance: | White On Black | Connector: | FPC |
| Display Type: | FSTN | Interface: | Parallel |
| Operating Temp.: | -20º C~70ºC | Storage Temp.: | -30º C~80ºC |
| Highlight: | 160X160 Cog Graphic LCD Display,Stn Gray Graphic LCD Display,RA8835 LCD 7 Segment Display |
||
Product Description

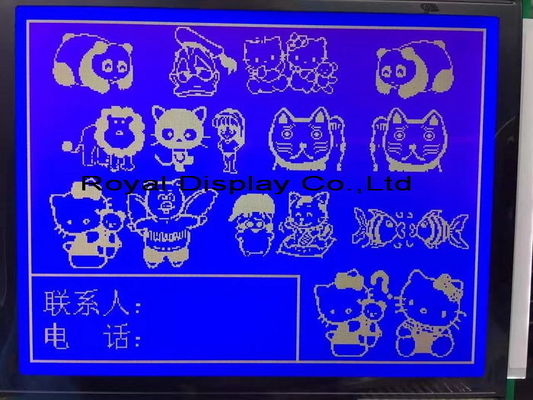

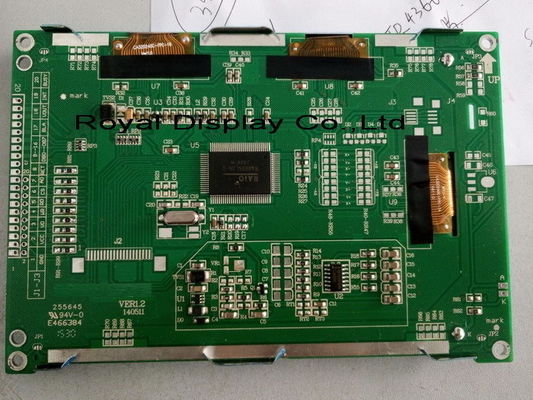

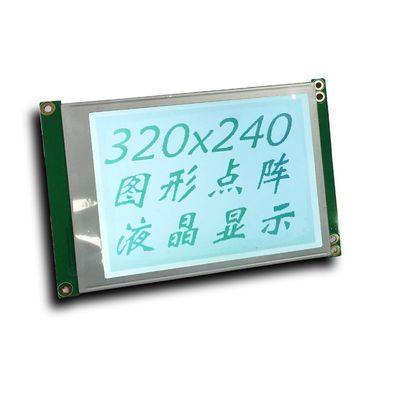

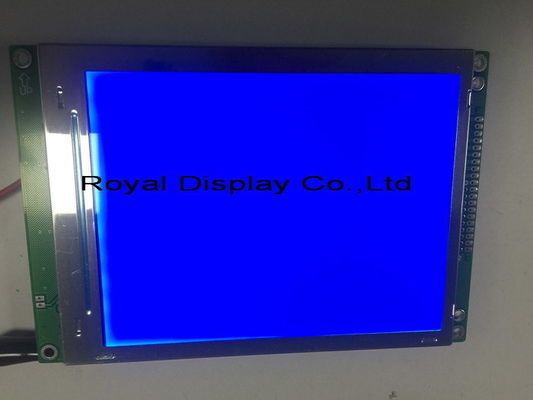

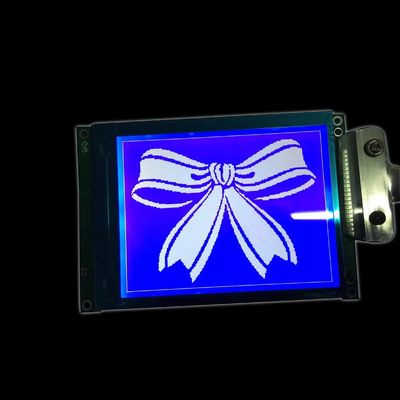

Custom COB Character LCD Display 320x240 LCD Module
PRODUCT DESCRIPTION
1. 320x240dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 320x240dots Graphic LCD Module |
| Model No. | RYP320240B |
| Dot Format | 320x240 |
| Outline (mm) | 160*109 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | RA8835 |
| Power supply | 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
Product Process
WARRANTY
Royal Display offers the original purchaser who has purchased a product from the lcd module tft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
ABOUT COMPANY
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.
ROYAL DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.
All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.
