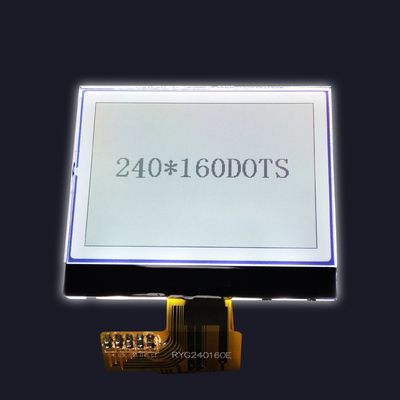

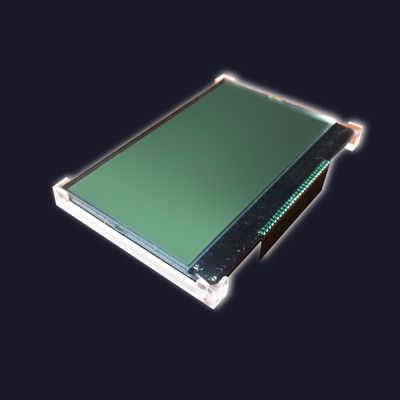

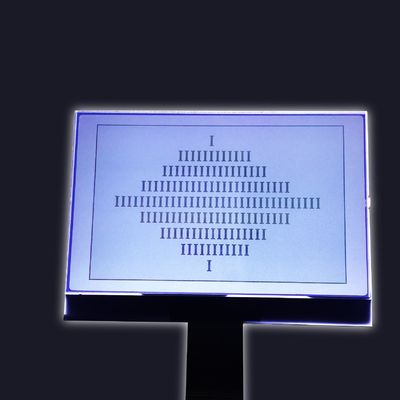

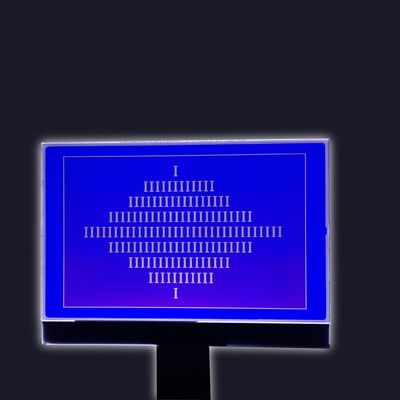

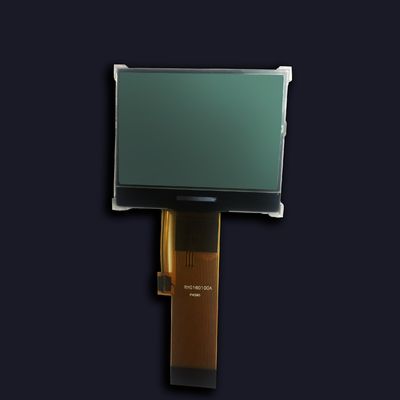

240X160 FSTN FSTN Parallel Graphic LCD Screen Transflective Positive RYB240160A
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Royal Display |
| Certification: | SGS ROHS |
| Model Number: | RYB240160A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| DOT Format: | 240X160 | Outline (mm): | 77*53 |
|---|---|---|---|
| Backlight Color: | White | Power Supply: | 3.3V |
| IC Package: | COG | Viewing Direction: | 12:00 |
| Appearance: | Black On White | Connector: | FPC |
| Display Type: | FSTN | Interface: | Parallel |
| Operating Temp.: | -20º C~70ºC | Storage Temp.: | -30º C~80ºC |
| Highlight: | 240X160 FSTN Graphic LCD Screen,FSTN Parallel Graphic LCD Screen,RYB240160A Transflective Positive LCD Module |
||
Product Description
Mono 240x160 FSTN Transflective Positive Graphic LCD
PRODUCT DESCRIPTION
1. 240x160dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 240x160dots Graphic LCD Module |
| Model No. | RYB240160A |
| Dot Format | 240x160 |
| Outline (mm) | 77*53 |
| Viewing Area(mm) | 12:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 12 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | UC1611S |
| Power supply | 3.3V |
| Interface |
Parallel |
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
WARRANTY
Royal Display offers the original purchaser who has purchased a product from the lcd module tft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
LCD Glass Workshop
FEATURE
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip based
8. Easy mounting on printed circuit board and sockets
9. Rhos&Reach approved
10. Better show effect and wide view angle
