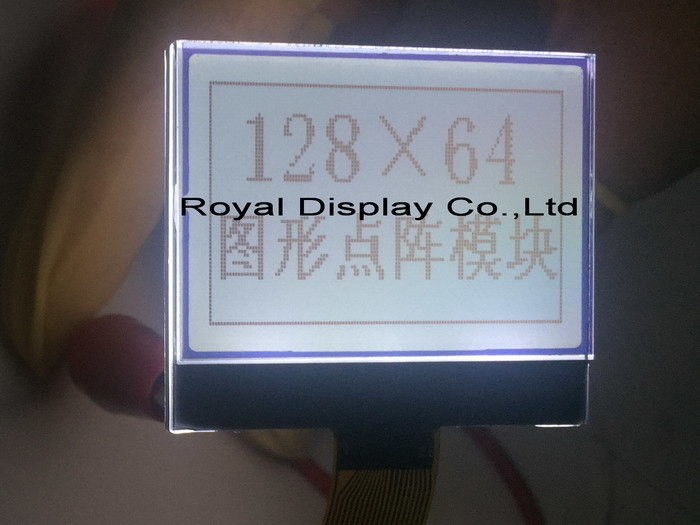

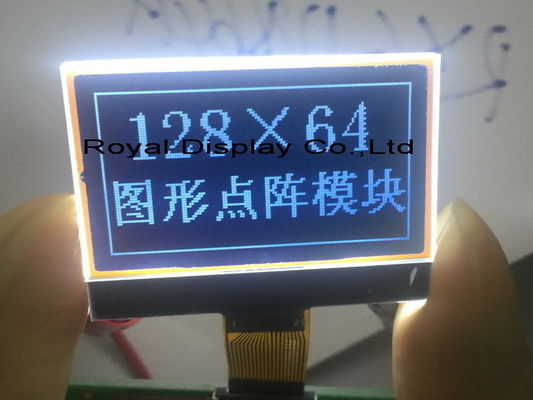

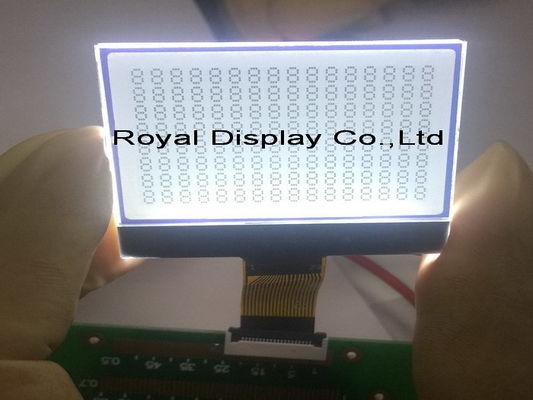

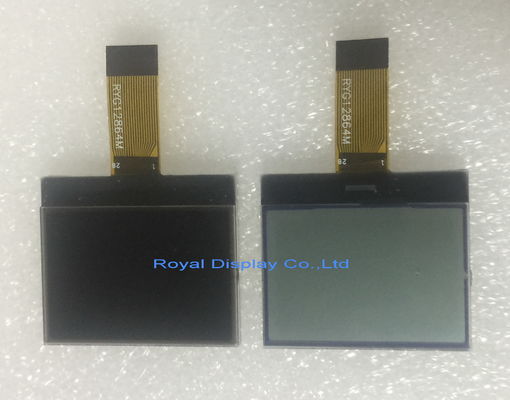

OEM/ODM Stn Gray 128X64 Dots Matrix with Blacklight COB LCD Module LCD Display RYG12864M ST7565R

OEM/ODM Stn Gray 128X64 Dots Matrix with Blacklight COB LCD Module LCD Display RYG12864M ST7565R
OEM/ODM Stn Gray 128X64 Dots Matrix with Blacklight COB LCD Module LCD Display RYG12864M ST7565R OEM/ODM Stn Gray 128X64 Dots Matrix with Blacklight COB LCD Module LCD Display RYG12864M ST7565R OEM/ODM Stn Gray 128X64 Dots Matrix with Blacklight COB LCD Module LCD Display RYG12864M ST7565R OEM/ODM Stn Gray 128X64 Dots Matrix with Blacklight COB LCD Module LCD Display RYG12864M ST7565R OEM/ODM Stn Gray 128X64 Dots Matrix with Blacklight COB LCD Module LCD Display RYG12864M ST7565R

Large Image :  OEM/ODM Stn Gray 128X64 Dots Matrix with Blacklight COB LCD Module LCD Display RYG12864M ST7565R

Product Details:
Place of Origin: CHINA
Brand Name: Royal Display
Certification: SGS ROHS
Model Number: RYG12864M
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 128X64 Outline (mm): 41*35
Backlight Color: White Power Supply: 3V
IC Package: COB/COG Viewing Direction: 12:00
Appearance: Black On White Connector: FPC
Display Type: FSTN Interface: Parallel
Operating Temp.: -20º C~70ºC Storage Temp.: -30º C~80ºC
High Light:

128X64 Dots LCD Display Module

,

RYG12864M LCD Display Module

,

FSTN FPC COG LCD Panel

Industrial Use Resolution 128x64dots STN Gray Blue Film LCD Display Module

PRODUCT DESCRIPTION
1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 128x64dots Graphic LCD Module
Model No. RYG12864M
Dot Format 128x64
Outline (mm) 41*35
Viewing Area(mm) 12:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 12 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7565R
Power supply 3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC





OUR SERVICE ADVANTAGES

1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3, Payment Terms: T/T, Western Union,L/C, PayPal

4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5, Service: Best after-sales service to ensure satisfaction from customers.

6, Warranty: Usually, product warranty for one year.

7, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

8. If mass production has any quality problem, customer can return it.





OUR FACTORY



OEM/ODM Stn Gray 128X64 Dots Matrix with Blacklight COB LCD Module LCD Display RYG12864M ST7565R 0



OEM/ODM Stn Gray 128X64 Dots Matrix with Blacklight COB LCD Module LCD Display RYG12864M ST7565R 1





WHAT CAN WE CUSTOM?



1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN

2.Display form: LCD panel/COB/COG/COF

3.Polarizer: Transflective, Transmissive, Reflective

4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others

5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others

6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC



OEM/ODM Stn Gray 128X64 Dots Matrix with Blacklight COB LCD Module LCD Display RYG12864M ST7565R 2









ROYAL DISPLAY bring decades of experiences in engineering and product developing to deliver product with high quality. Our goal is to serve the need of with advanced solutions.
