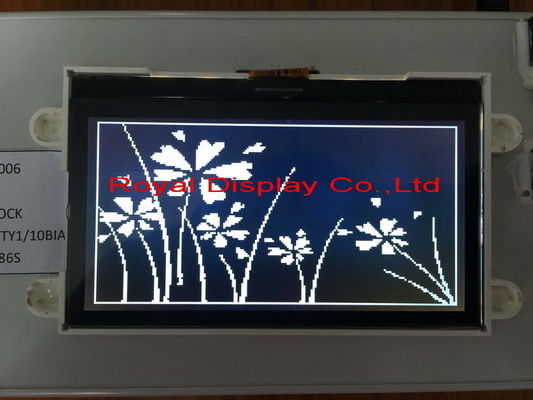

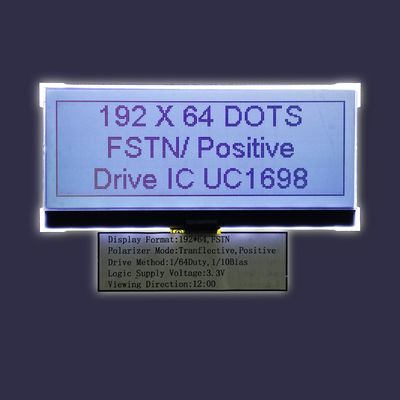

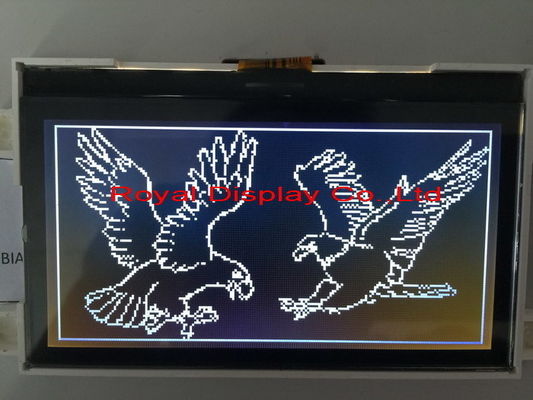

192X64 UC1698 Positive Transflective LCD Display FPC FSTN Parallel
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Royal Display |
| Certification: | SGS ROHS |
| Model Number: | RY19264 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 15-20 work days |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K/M |
|
Detail Information |
|||
| DOT Format: | 192X64 | Outline (mm): | 135X65 |
|---|---|---|---|
| Backlight Color: | White | Power Supply: | 3.3V |
| IC Package: | COB | Viewing Direction: | 6:00 |
| Appearance: | White On Black | Connector: | FPC |
| Display Type: | FSTN | Interface: | Parallel |
| Operating Temp.: | -20º C~70ºC | Storage Temp.: | -30º C~80ºC |
| Highlight: | 192X64 Positive Transflective LCD Display,UC1698 Positive Transflective LCD Display,FPC FSTN Transflective LCD Module |
||
Product Description
Positive Transflective Custom LCD Display In Stock 192x64 Resolution
PRODUCT DESCRIPTION
1. 192x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 192x64dots Graphic LCD Module |
| Model No. | RY19264 |
| Dot Format | 192x64 |
| Outline (mm) | 135*65 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7586S |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
WARRANTY
Royal Display offers the original purchaser who has purchased a product from the lcd module tft a limited warranty that the product (including accessories in the product's package) will be free from defects in material or workmanship.
