Graphics 0.28'' 10mm Pixels LED Segment Display Triple Digit

Graphics 0.28'' 10mm Pixels LED Segment Display Triple Digit
Graphics 0.28'' 10mm Pixels LED Segment Display Triple Digit

Large Image :  Graphics 0.28'' 10mm Pixels LED Segment Display Triple Digit

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYS5229W
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15~25 working days
Supply Ability: 1000K pieces/Month
Detailed Product Description
Size: 0.28''~4' Tube Chip Color: Full Color
Display Function: Graphics Pixels: 10mm
Surface Color: Black Or Grey Color Polarity: Common Anode
Digits: 1 To 6 Color: Red, Green, Blue, Yellow, Orange...
High Light:

10mm Pixels LED Segment Display

,

Graphics 0.28'' LED Segment Display

,

Triple Digit Led Smd Module



Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)





Emitting Color



Test Condition

Wavelength(nm) Forward Voltage(V) Luminous Intensity (mcd)
(λp) λ Typ Max Typ Max
Amber IF=10-15mA 600-605 30 1.9 2.0 90 100
Super green IF=10-15mA 565-575 30 1.9 2.0 48 55
Super red IF=10-15mA 620-625 20 1.8 2.0 110 130
Ultra red 1 IF=10-15mA 620-625 20 1.8 2.0 200 210
Ultra red 2 IF=10-15mA 620-625 20 1.8 2.0 300 350
High red IF=10-15mA 638-660 20 1.8 1.9 15 20
Yellow green IF=10-15mA 570-580 30 1.9 2.0 43 50
Yellow IF=10-15mA 580-600 35 1.9 2.0 70 80
Blue IF=10-15mA 465-475 40 2.95 3.0 150 200
Pure green IF=10-15mA 515-525 40 2.95 3.0 180 250
White IF=10-15mA - - 2.8 2.9 180 200





Parameters
Emitted color various
Emitted source chips
Luminance 75mcd
DC Forward Voltage 2.6-3.6 v
Suggestion Forward Current 20 mA
Operating Temperature -25℃~+85℃





WHY CHOOSE ROYAL DISPLAY?



1. Best Quality

---THREE times of inspection on all products on production:

Step 1: Raw Material check

Step 2: Process check and full inspection after wire bonding&chip bonding

Step 3: full test before packaging and partial check before shippment



2. Best Price

---manufacturer

---best suppliers sources

---all products by oneself



3.Company strength

---good quality&competitive price

---Listed company

---Management System: ISO 9001:2015



4.Rich experiences

---Over 10 years experiences in Lcd display field.

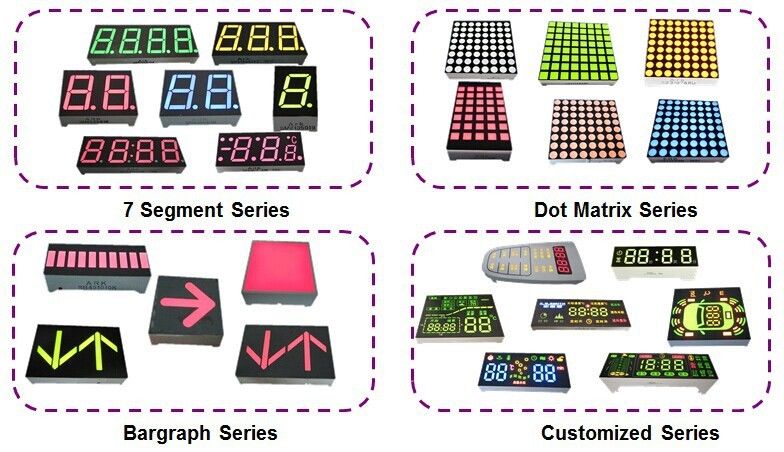

Graphics 0.28'' 10mm Pixels LED Segment Display Triple Digit 0





What can a custom segment LCD be used for?

Custom Segment Liquid Crystal Displays are seen in products that measure the PH level of swimming pools, monitors used to measure specific gases in a mine, or in thermometers used to see if a child is running a fever. They are one of the oldest display technologies, but still one of the most popular.



What makes a segment LCD liquid crystal display?
Segment Liquid Crystal Displays. Segment LCDs, also called static displays or glass-only displays, are constructed of two pieces of ITO (Indium tin oxide) glass with a twisted nematic fluid sandwiched in between. A static display is a segment display with one pin for every one segment.
What kind of display is a segmented display?
Using Segmented Displays (LCD) Using Segmented Displays (LCD) Introduction This chapter introduces the segmented liquid crystal display (LCD). We begin with a quick introduction to LCD’s and how they work.
