CC Polarity 575nm Full Color Muti-Color LED Backlight Digital Display 10mm Pixels Smd Module

CC Polarity 575nm Full Color Muti-Color LED Backlight Digital Display 10mm Pixels Smd Module
CC Polarity 575nm Full Color Muti-Color LED Backlight Digital Display 10mm Pixels Smd Module

Large Image :  CC Polarity 575nm Full Color Muti-Color LED Backlight Digital Display 10mm Pixels Smd Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYS5228W
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15~25 working days
Supply Ability: 1000K pieces/Month
Detailed Product Description
Size: 0.28''~4'' Tube Chip Color: Full Color
Display Function: Graphics Pixels: 10mm
Surface Color: Black Or Grey Color Polarity: Common Anode
Digits: 1 To 6 Color: Red, Green, Blue, Yellow, Orange...
High Light:

CC Polarity Full Color Digital Display

,

575nm Full Color Digital Display

,

10mm Pixels Led Smd Module

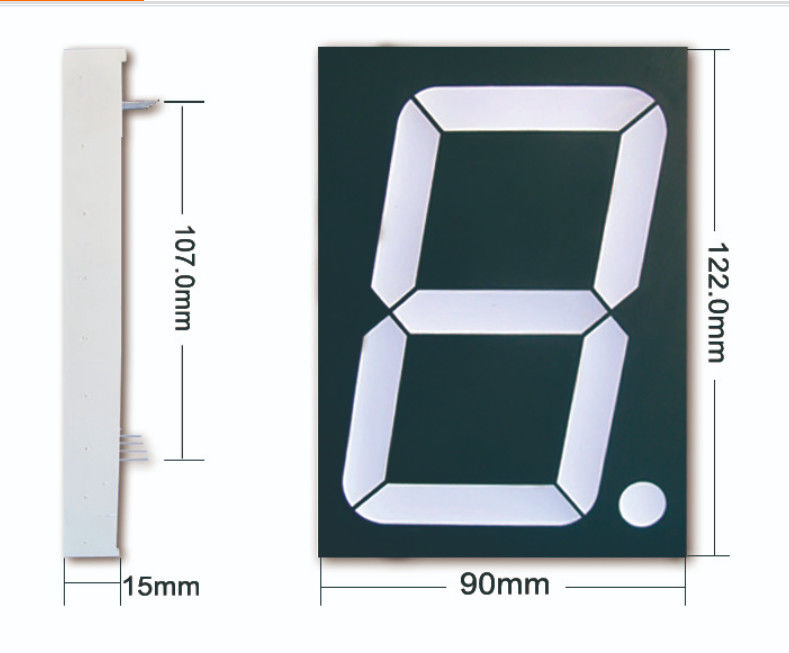

Part No KEM-40011-BSR
Dimension 122*90*15mm
Digit height 101.6mm
Surface color Black/gray
Segment color White / clear
Emitting color super red(620~630nm)
Luminous intensity 100mcd/chip
Pin configuration Common anode/common cathode





Color Code & Chip characteristic PER CHIP: (Test Condition: IF=10-15Ma)





Emitting Color



Test Condition

Wavelength(nm) Forward Voltage(V) Luminous Intensity (mcd)
(λp) λ Typ Max Typ Max
Amber IF=10-15mA 600-605 30 1.9 2.0 90 100
Super green IF=10-15mA 565-575 30 1.9 2.0 48 55
Super red IF=10-15mA 620-625 20 1.8 2.0 110 130
Ultra red 1 IF=10-15mA 620-625 20 1.8 2.0 200 210
Ultra red 2 IF=10-15mA 620-625 20 1.8 2.0 300 350
High red IF=10-15mA 638-660 20 1.8 1.9 15 20
Yellow green IF=10-15mA 570-580 30 1.9 2.0 43 50
Yellow IF=10-15mA 580-600 35 1.9 2.0 70 80
Blue IF=10-15mA 465-475 40 2.95 3.0 150 200
Pure green IF=10-15mA 515-525 40 2.95 3.0 180 250
White IF=10-15mA - - 2.8 2.9 180 200







Segment Liquid Crystal Displays

Segment LCDs, also called static displays or glass-only displays, are constructed of two pieces of ITO (Indium tin oxide) glass with a twisted nematic fluid sandwiched in between. A static display is a segment display with one pin for every one segment.



These displays are still one of the most popular technologies in use and the majority of them are custom. Many people think the process of designing a custom segment liquid crystal display is complicated and too complex to be understood except for a few experienced people. But after designing custom LCDs for over 14 years, it can be said that just about anyone can select the best options for their product.



In other words, you don’t have to be an engineer, or have a PHD from MIT to design a custom LCD for your application. So instead of offering a list of technical terms and equations, these are the different options available.







CC Polarity 575nm Full Color Muti-Color LED Backlight Digital Display 10mm Pixels Smd Module 0



CC Polarity 575nm Full Color Muti-Color LED Backlight Digital Display 10mm Pixels Smd Module 1



CC Polarity 575nm Full Color Muti-Color LED Backlight Digital Display 10mm Pixels Smd Module 2





Overview



1. We can supply you all kinds of 7 segment LED display:

---Digit size: from 0.25" to 16"

---Digit Numer: 1, 2, 3, 4, 5 and 6 digits



2. Segment : 7 segment and 16 segment both available



3. Available Emitting color: Super green,Super red, Yellow green, Pure green, Yellow, Blue, White RGB and bi-color



4. Available surface color: black, grey or red



5. Lens color: white or same as emitting color



6. We can offer below 7 segment LED display.









CC Polarity 575nm Full Color Muti-Color LED Backlight Digital Display 10mm Pixels Smd Module 3
