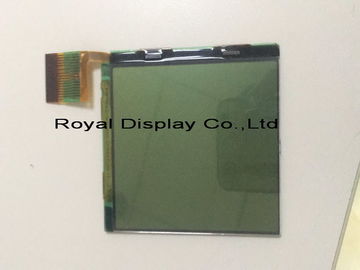

FSTN Postive COG Graphic LCD Module RYG320240A Replace HANTRONIX HDG320240
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYG320240A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Supply Ability: | 10k/Month |
|
Detail Information |
|||
| Product Name: | COG Graphic LCD Module For Industrial Application RYG320240A 320x240 Dots 100% Replace HANTRONIX HDG320240 | Model No.: | RYG320240A |
|---|---|---|---|
| LCD Type: | FSTN Postive | Dot Format: | 320X240 |
| LED Backlight: | White | Viewing Angle: | 6 O' Clock |
| Operating Temp: | -20º C~70º C | ||
| Highlight: | Cog Lcd Display,Tft Lcd Screen,Graphic LCD Module RYG320240A |
||
Product Description
COG Graphic LCD Module For Industrial Application RYP320240A 320x240 Dots 100% replace HANTRONIX HDG320240
1. 320x240 dots
2. Parallel interface
3. STN-blue, STN-Positive display results as option
4. Ultra high contrast, YG & White LED backlight as option
| Item | Description |
| Product Name | 320X240 dots Graphic LCD Module |
| Model No. | RYG320240A |
| LCD Type | FSTN-Positive, STN-Blue |
| Dot Format | 320x 240 |
| Outline Dimension(mm) | 88.3x69.1 |
| Viewing Area(mm) | 79.8 x 57.85 |
| Pixel Size( mm) | 0.24 x 0.24 |
| Viewing Angle | 6 O' clock |
| Controller | NT7701&NT7709 |
| Backlight | White or Y/G LED backlight |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Typical Applications:
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features:
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
Wide Operation & Storage temperature range
Support gray scale display
