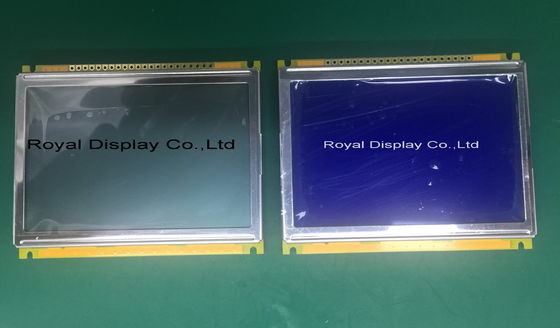

RYP240128B 240x128 Dots Graphic LCD Module With RA8822B-T Build In Chinese Character
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYP240128B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Supply Ability: | 10k/Month |
|
Detail Information |
|||
| Product Name: | Graphic LCD Module For Industrial Application RYP240128B 240x128 | Model No.: | RYP240128B |
|---|---|---|---|
| Dot Format: | 240X128 | Viewing Angle: | 6 O' Clock |
| LED Backlight: | White Y/G | Controller: | RA8822B-T |
| Operating Temp: | -20º C~70º C | LCD Type: | FSTN Postive |
| Highlight: | Lcd Graphic Display Module,Monochrome Graphic Display |
||
Product Description
Graphic LCD Module For Industrial Application RYP240128B 240x128 Dots With RA8822B-T Build In Chinese Character
1. 240x128 dots
2. Parallel interface
3. DC/DC on board, 5V power supply
4. Ultra high contrast, YG & White LED backlight as option
5. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 240X128 dots Graphic LCD Module |
| Model No. | RYP240128B |
| Dot Format | 240x 128 |
| Outline Dimension(mm) | 91.8x74 |
| Assem. Size(mm) | 84.0 x 71.0 |
| Viewing Area(mm) | 83.2 x 54.0 |
| Pixel Size( mm) | 0.3 x 0.33 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Blue, STN-YG |
| Backlight | White or Y/G LED backlight |
| Controller | RA8822B-T |
| Power supply | 3V or 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Typical Applications:
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features:
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
