1.3 Inch Oled Lcd Led Display Module For Arduino White / Blue Color QG-2864KSWLG01

Name: 1.3 Inch Oled Lcd Led Display Module For Arduino White / Blue Color QG-2864KSWLG01
Brand: Allvision
SKU: QG-2864KSWLG01
Rating: 4.9 (139 reviews)

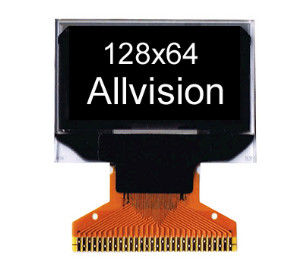

Large Image : 1.3 Inch Oled Lcd Led Display Module For Arduino White / Blue Color QG-2864KSWLG01

Product Details:

Place of Origin:	CHINA
Brand Name:	Allvision
Certification:	ROHS REACH
Model Number:	QG-2864KSWLG01

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable

Contact Now

Detailed Product Description

Diagonal Screen Size:	1.30"	Color:	White Or Blue
Number Of Pixels:	128x64	Active Area(mm):	29.42×14.70
Drive IC:	SH1106G	Interface:	Parallel /I2C/ 4-wire SPI
High Light:	Serial Oled Display , Oled Screen Module

QG-2864KSWLG01 1.30' OLED display module, White or Blue characters in black background , 128x 64 pixels resolution,

Functions & features:

1.3 Inch Oled Lcd Led Display Module For Arduino White / Blue Color QG-2864KSWLG01 0

What's OLED?

OLED (Organic Light Emitting Display) refers to the phenomenon when several organic thin films are placed between an anode and a cathode, under a positive bias voltage, a bright light is emitted from the anode side via a process of carriers´ injection, transfer and recombination. OLED Character.

Why do we choose OLED

Low power consumption
Fast response
High Contrast
Free Viwwing Angle
Vivid Color
