High Contrast Color Oled Display Module With Rohs Reach 26.279×19.708 Mm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Allvision |
| Certification: | ROHS REACH |
| Model Number: | QG-2896TDEAF01/02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
|
Detail Information |
|||
| Diagonal Screen Size: | 1.29" | Color: | 262,144 Colors |
|---|---|---|---|
| Number Of Pixels: | 128RGB×96 | Active Area(mm): | 26.279×19.708 |
| Drive IC: | SSD1351 | Interface: | Parallel / SPI |
| Operating Temperature: | '-40~70℃ | ||
| Highlight: | Oled Dot Matrix Display,Oled Screen Module |
||
Product Description

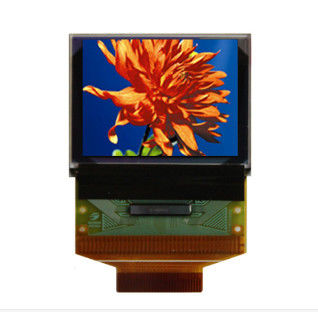

QG-2896TDEAF01/02 1.29" Full Color OLED display module, 128RGB×96 pixels resolution
Functions & features:
What's OLED?
OLED (Organic Light Emitting Display) refers to the phenomenon when several organic thin films are placed between an anode and a cathode, under a positive bias voltage, a bright light is emitted from the anode side via a process of carriers´ injection, transfer and recombination. OLED Character.
Why do we choose OLED
- Low power consumption
- Fast response
- High Contrast
- Free Viwwing Angle
- Vivid Color
Want to Know more details about this product
