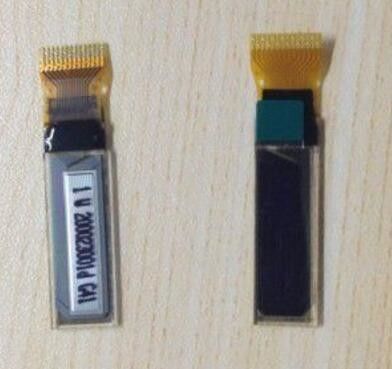

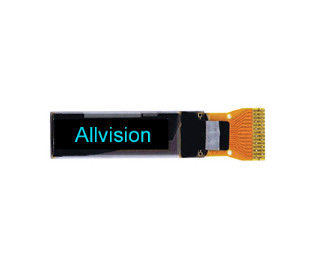

Blue Color Monochrome Oled Display Module 0.69" Low Power Consumption
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Allvision |
| Certification: | ROHS REACH |
| Model Number: | QG-9616TLBCG02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
|
Detail Information |
|||
| Diagonal Screen Size: | 0.69" | Color: | Blue |
|---|---|---|---|
| Number Of Pixels: | 96x16 | Active Area(mm): | 17.26*3.18 |
| Drive IC: | SSD1306 | Interface: | I2C |
| Highlight: | Oled Dot Matrix Display,Serial Oled Display |
||
Product Description
QG-9616TLBCG02 0.69'' OLED display module, Blue characters in black background , 96 x 16 pixels resolution
Functions & features:
- Module Model: QG-9616TSWCG02
- LCD type: 0.69" OLED Blue
- Duty : 1/16
- Drive IC : SSD1306
- Interface : I2C
- Panel Size :26.3×8×1.2mm
- Active Area : 17.26×3.18mm
- Pixel Pitch : 0.18×0.2 mm
- Pixel Size :0.16×0.18 mm
- Pins :14
What's OLED?
OLED (Organic Light Emitting Display) refers to the phenomenon when several organic thin films are placed between an anode and a cathode, under a positive bias voltage, a bright light is emitted from the anode side via a process of carriers´ injection, transfer and recombination. OLED Character.
Why do we choose OLED
- Low power consumption
- Fast response
- High Contrast
- Free Viwwing Angle
- Vivid Color
