| Product Name: | Graphic COG LCD Module RYG320160A | Model No.: | RYG320160A |
|---|---|---|---|
| Dot Format: | 320X160 | Viewing Angle: | 6 O' Clock |
| Operating Temp: | -20º C~70º C | LCD Type: | FSTN Postive |
| Driver: | UC1698 | ||
| High Light: | Lcd Graphic Display Module,Monochrome Graphic Display |
||

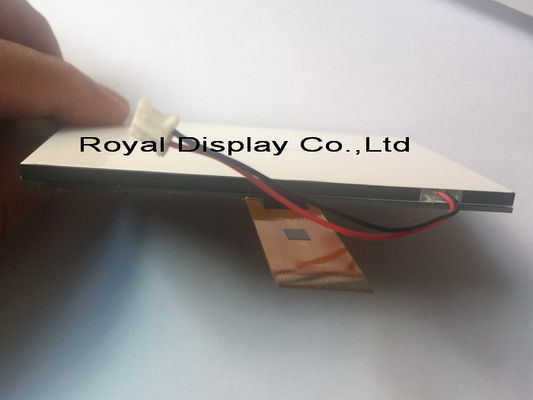

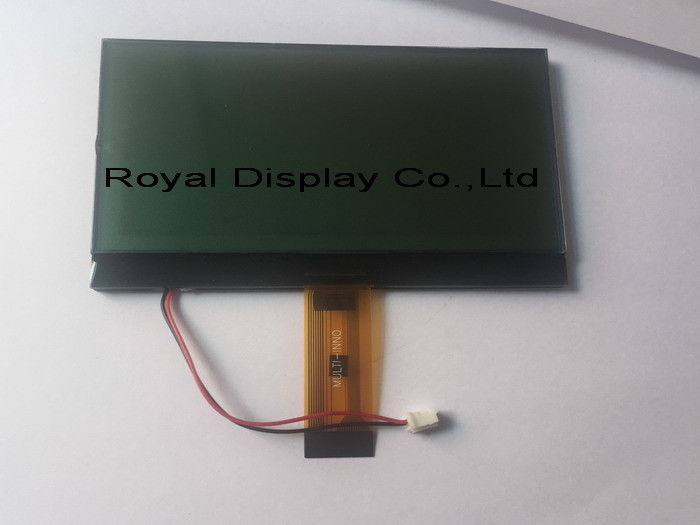

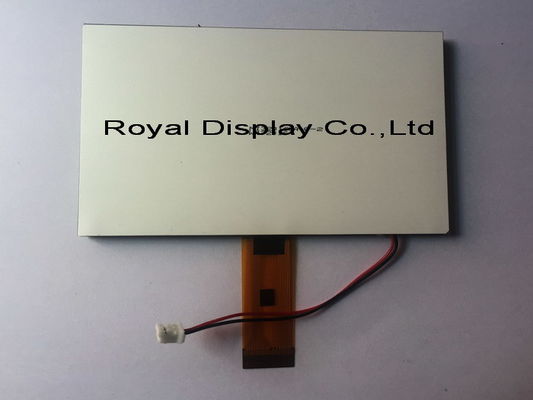

Graphic COG LCD Module 320X160 Dots With UC1698 RYG320160A FSTN Positive Black On White
1. 320x160dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 320*160 dots Graphic LCD Module |
| Model No. | RYG320160A |
| Dot Format | 320*160 |
| Outline Dimension(mm) | 104*64 |
| Viewing Area(mm) | 100*52 |
| Pixel Size( mm) | 0.275 x 0.29 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | UC1698 |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
