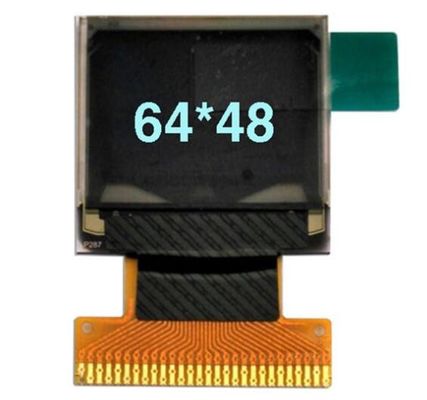

64 X 48 Pixels Resolution OLED Display Module Various Size / Color Acceptable

64 X 48 Pixels Resolution OLED Display Module Various Size / Color Acceptable
64 X 48 Pixels Resolution OLED Display Module Various Size / Color Acceptable 64 X 48 Pixels Resolution OLED Display Module Various Size / Color Acceptable 64 X 48 Pixels Resolution OLED Display Module Various Size / Color Acceptable

Large Image :  64 X 48 Pixels Resolution OLED Display Module Various Size / Color Acceptable

Product Details:
Place of Origin: CHINA
Brand Name: Allvision
Certification: ROHS REACH
Model Number: QG-6448KSWEG03
Payment & Shipping Terms:
Price: Negotiable
Detailed Product Description
Diagonal Screen Size: 0.66" Color: White
Number Of Pixels: 64x48 Active Area(mm): 13.42×10.06
Drive IC: SSD1306 Interface: Parallel /I2C/ 4-wire SPI
High Light:

Oled Dot Matrix Display

,

Oled Screen Module



0.66" OLED display Module QG-6448KSWEG03 Low Power Consumption , 64 x 48 pixels resolution, white colors





Functions & features:







  • Module Model: QG-6448KSWEG03
  • LCD type: 0.66" OLED white
  • Duty : 1/48
  • Drive IC : SSD1306
  • Interface : Parallel /I2C/ 4-wire SPI

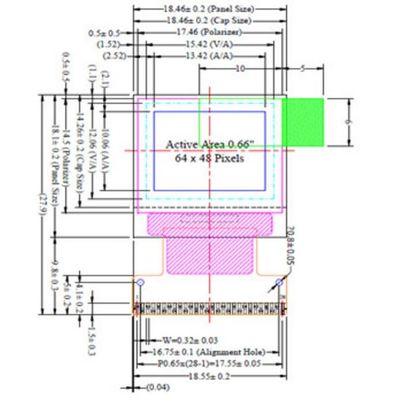

  • Panel Size :18.46×18.1×1.5mm
  • Active Area : 13.42×10.06mm
  • Pixel Pitch : 0.21×0.21 mm
  • Pixel Size : 0.19×0.19 mm
  • Pins :28

64 X 48 Pixels Resolution OLED Display Module Various Size / Color Acceptable 0



What's OLED?



OLED (Organic Light Emitting Display) refers to the phenomenon when several organic thin films are placed between an anode and a cathode, under a positive bias voltage, a bright light is emitted from the anode side via a process of carriers´ injection, transfer and recombination. OLED Character.



Why do we choose OLED

  •
  • Low power consumption
  • Fast response
  • High Contrast
  • Free Viwwing Angle
  • Vivid Color
