Product Details:
Payment & Shipping Terms:
|
| Product Name: | RYB12864C Graphic LCD Module FSTN Positive Black On White Or STN Blue White 240*128 Dots | Model No.: | RYB12864C |
|---|---|---|---|
| Dot Format: | 128X64 | Viewing Angle: | 6 O' Clock |
| LED Backlight: | White | Controller: | T6963C |
| Operating Temp: | -20º C~70º C | LCD Type: | FSTN Postive STN Bule |
| High Light: | Transflective Lcd Display,Monochrome Graphic Display |
||

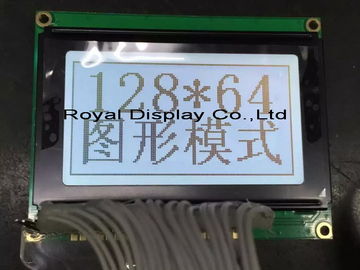

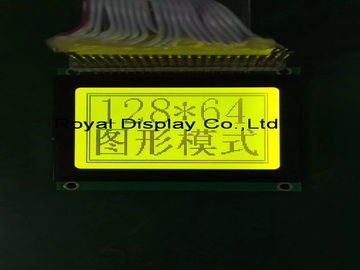

RYB12864C Graphic LCD Module FSTN Positive Black On White or STN Blue White 128*64 Dots
| Item | Description |
| Product Name | 128x64 dots Graphic LCD Module |
| Model No. | RYB12864C |
| Dot Format | 128X64 |
| Outline Dimension(mm) | 90.0 x 73.0 |
| Assem. Size(mm) | 88 x 65 |
| Viewing Area(mm) | 73.7 x 38.8 |
| Pixel Size( mm) | 0.508 x 0.408 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Blue, STN-YG |
| Backlight | White or Y/G LED backlight |
| Driver IC | AT0107 |
| Power supply | 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
