Mechanical Size Graphic LCD Module Compatible With Hitachi LMG7420PLFC-X
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYP240128G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Supply Ability: | 10k/Month |
|
Detail Information |
|||
| Product Name: | RYP240128G Compatible With Hitachi LMG7420PLFC-X | Model No.: | RYP240128G |
|---|---|---|---|
| Dot Format: | 240*128 | Viewing Angle: | 6 O' Clock |
| LED Backlight: | White | Operating Temp: | -20º C~70º C |
| LCD Type: | FSTN Postive Or STN Blue | Driver: | T6963/ LC7981 |
| Highlight: | Lcd Graphic Display Module,Transflective Lcd Display |
||
Product Description

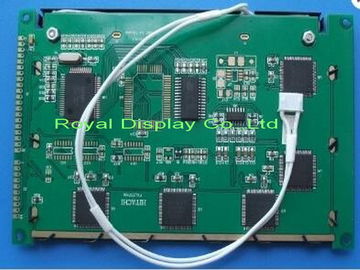

RYP240128G Graphic LCD Module 240*128 dots , Mechanical Size Compatible With Hitachi LMG7420PLFC-X
1.240x128 dots, 5.7"
2.Parallel interface
3.DC/DC on board, 5v power supply
4.STN-blue, FSTN-positive with white LED backlight
5.Mechanical size With Hitachi LMG7420PLFC-X
6.Compact structure, high reliable, pure new design
2.Parallel interface
3.DC/DC on board, 5v power supply
4.STN-blue, FSTN-positive with white LED backlight
5.Mechanical size With Hitachi LMG7420PLFC-X
6.Compact structure, high reliable, pure new design
7.Touch panel optional
| Item | Description |
| Product Name | 240X128dots Graphic LCD Module |
| Model No. | RYP240128G |
| Dot Format | 240X128 |
| Outline Dimension(mm) | 159.4*101 |
| Viewing Area(mm) | 124*70 |
| Pixel Size( mm) | 0.50 x 0.47 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Blue, |
| Backlight | White |
| Driver IC | T6963/ LC7981 |
| Power supply | 5.0V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Typical Applications:
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features:
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
