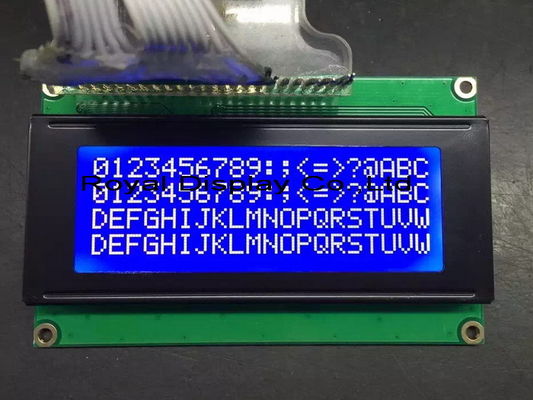

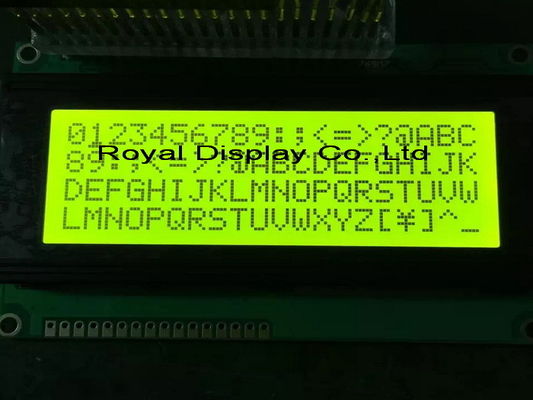

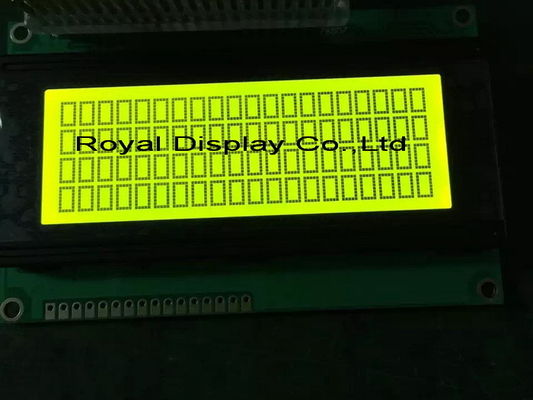

RYP2004A Standard 20x4 Character Lcd , Alphanumeric LCD Module Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYB240128B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Product Name: | RYP2004A Standard Character Moudle 20X4 LCD | Model No.: | RYP2004A |
|---|---|---|---|
| Dot Format: | 20X4 | Viewing Angle: | 6 O' Clock |
| LED Backlight: | White | Operating Temp: | -20º C~70º C |
| LCD Type: | FSTN Postive STN Bule | ||
| Highlight: | Lcd Graphic Display Module,Monochrome Graphic Display |
||
Product Description
RYP2004A Standard Character Moudle 20X4 LCD
Alphanumeric LCD Module
1. 20x4 Characters
2. Parallel interface
3. 3.3V & 5V power supply optional
4. STN-YG, STN-Gray & STN-Blue with YG & White LED backlight optional
| Item | Description |
| Product Name | Alphanumeric LCD Module |
| Model No. | RYP2004A |
| Dot Format | 20 x 4 |
| Outline Dimension(mm) | 98 x 60 x 13.7 |
| Assem. Size(mm) | 93 x 55 |
| Viewing Area(mm) | 76 x 25.2 |
| Pixel Size( mm) | 0.55 x 0.55 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN & STN |
| Backlight | White or Y/G LED backlight |
| Driver IC | ST7063C |
| Power supply | 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
