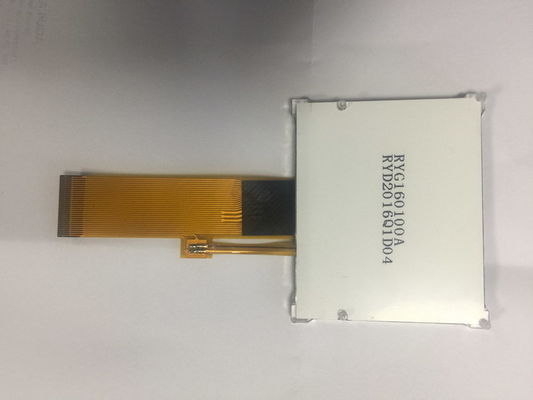

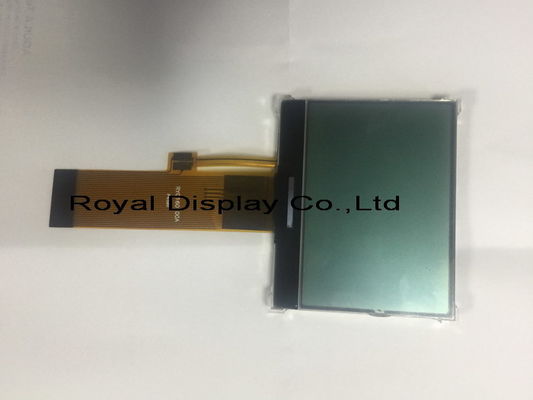

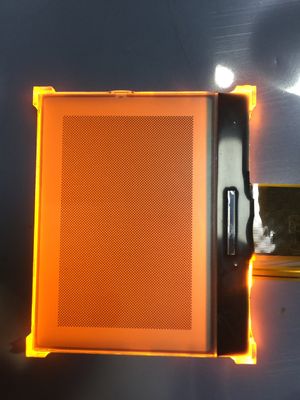

High Resolution 3.3V Graphic Lcd Display Programming 160*100 Dots
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS ROHS |
| Model Number: | RYG160100A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 220pcs/CTN 11Kg L45*W36*H32CM |
| Delivery Time: | 25~28 Working Days |
| Supply Ability: | 300k/Month |
|
Detail Information |
|||
| Product Name: | 160*100 Dots With ST7528 RYG160100A COG Graphic LCD Module FSTN Positive Black On White Or STN Blue White | Model No.: | RYG160100A |
|---|---|---|---|
| Dot Format: | 160X100 | Viewing Angle: | 6 O' Clock |
| LED Backlight: | White Or Amber | Operating Temp: | -20º C~70º C |
| LCD Type: | FSTN Postive | Driver: | ST7528 |
| Highlight: | Lcd Graphic Display Module,Transflective Lcd Display |
||
Product Description
160*100 Dots With UC1611S RYG160100A COG Graphic LCD Module FSTN Positive Black On White or Amber
| Item | Description |
| Product Name | 160x100 dots Graphic LCD Module |
| Model No. | RYG160100A |
| Dot Format | 160 x 100 |
| Outline Dimension(mm) | 55*45 |
| Viewing Area(mm) | 47.1*31 |
| Pixel Size( mm) | 0.25 x 0.2 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Blue, STN-YG |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7528 |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
Typical Applications:
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features:
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
Transmissive, Transflective and Reflective Mode
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
