Small Pixel Pitch Indoor OLED Display Module For Commercial 0.49 Inch

Name: Small Pixel Pitch Indoor OLED Display Module For Commercial 0.49 Inch
Brand: Allvision
SKU: QG-6432TSWEG02
Rating: 4.7 (145 reviews)

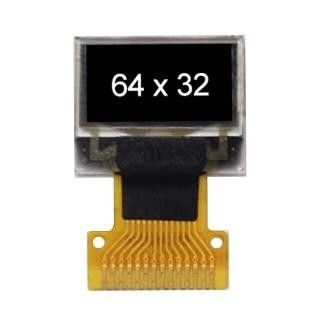

Large Image : Small Pixel Pitch Indoor OLED Display Module For Commercial 0.49 Inch

Product Details:

Place of Origin:	CHINA
Brand Name:	Allvision
Certification:	ROHS REACH
Model Number:	QG-6432TSWEG02

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable

Contact Now

Detailed Product Description

Diagonal Screen Size:	0.49"	Color:	White
Number Of Pixels:	64x32	Active Area(mm):	11.18×5.58
Drive IC:	SSD1306	Interface:	I2C
Duty:	1/32
Highlight:	Oled Dot Matrix Display , Serial Oled Display

Low Power Consumption 0.49" OLED display Module QG-6432TSWEG02 , 64 x 32 pixels resolution, white colors

Functions & features:

Module Model: QG-6432TSWEG02
LCD type: 0.49" OLED withe
Duty: 1/32
Drive IC SSD1306
Interface: IIC
Panel Size:14.5×11.6×1.2mm
Active Area: 11.18×5.58mm
Pixel Pitch: 0.175×0.175 mm
Pixel Size: 0.155×0.155 mm

What's OLED?

OLED (Organic Light Emitting Display) refers to the phenomenon when several organic thin films are placed between an anode and a cathode, under a positive bias voltage, a bright light is emitted from the anode side via a process of carriers´ injection, transfer and recombination. OLED Character.

Why do we choose OLED

Low power consumption
Fast response
High Contrast
Free Viwwing Angle
Vivid Color
