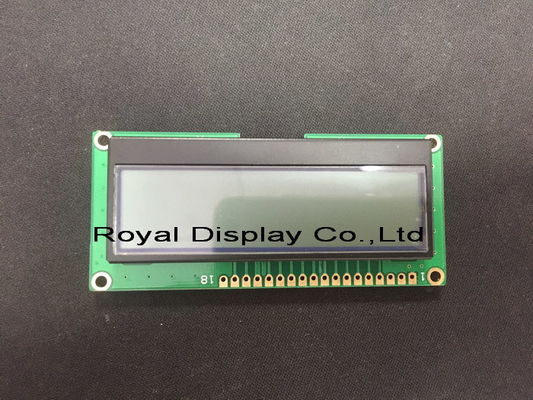

Hand Held Device Led Graphic Display , Monochrome Lcd Display Module

Hand Held Device Led Graphic Display , Monochrome Lcd Display Module
Hand Held Device Led Graphic Display , Monochrome Lcd Display Module Hand Held Device Led Graphic Display , Monochrome Lcd Display Module Hand Held Device Led Graphic Display , Monochrome Lcd Display Module

Large Image :  Hand Held Device Led Graphic Display , Monochrome Lcd Display Module

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYP13232AGFTWWN
Payment & Shipping Terms:
Minimum Order Quantity: 1.8K
Price: Negotiable
Packaging Details: 220pcs/CTN 9.5Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 500k/Month
Detailed Product Description

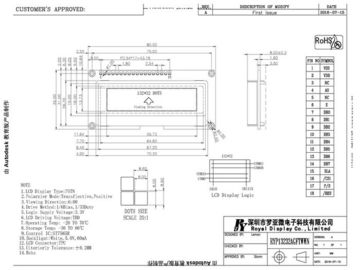

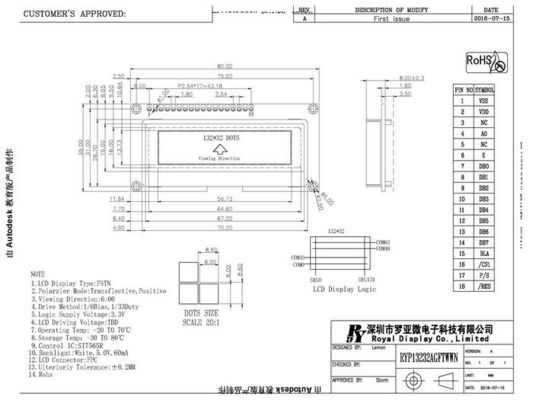

Product Name: COG Graphic LCD 132 X 132(RYP13232AGFTWWN) Model No.: RYP13232AGFTWWN
Dot Format: 132x32 Viewing Angle: 6 O' Clock
LCD Type: FSTN LED Backlight: White
Driver IC: ST7565R Operating Temp: -20º C~70º C
Storage Temp: -30º C~80º C
High Light:

Transflective Lcd Display

,

Monochrome Graphic Display

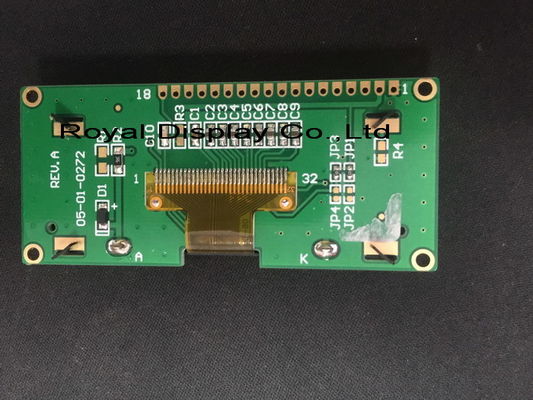

Completely Replace LM13232ACW , RYP13232AGFTWWN COG Graphic LCD FSTN Positve 132*32 dots , 3.3V Power supply With PCBA

  1. COG LCD Module
  2. Dots Format , 132x32
  3. Controller , ST7565R OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. Widely Use On Hand-held Device
  6. PIN SYMBOL
    1 VSS
    2 VDD
    3 NC
    4 A0
    5 NC
    6 E
    7~14 DB0~DB7
    15 BLA
    16 /CS1
    17 P/S
    18 /RES

    Hand Held Device Led Graphic Display , Monochrome Lcd Display Module 0
