Product Details:
Payment & Shipping Terms:
|
| Product Name: | Builing In Controller UC6963 RYB24064B FSTN Positive 240*64 Dots ,COB Graphic LCD Module 5.0V Power Supply | Model No.: | RYB24064B |
|---|---|---|---|
| Dot Format: | 240X64 | Viewing Angle: | 6 O' Clock |
| LCD Type: | FSTN-Positive | LED Backlight: | White |
| Controller: | UC6963 | Operating Temp: | -20º C~70º C |
| Storage Temp: | -30º C~80º C | ||
| Highlight: | Lcd Graphic Display Module,Transflective Lcd Display |
||

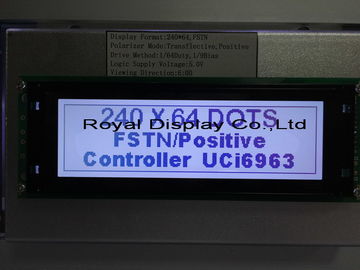

Builing in Controller UC6963 RYB24064B FSTN Positive 240*64 Dots ,COB Graphic LCD Module 5.0V Power Supply
| PIN | SYMBOL | PIN | SYMBOL |
| 1 | FG | 9 | NC |
| 2 | GND | 10 | RST |
| 3 | VCC | 11~18 | DB0~DB7 |
| 4 | V0 | 19 | FS |
| 5 | /WR | 20 | VEE |
| 6 | RD | 21 | LED-A |
| 7 | CS | 22 | LED-K |
| 8 | C/D |
