Wide Operation Graphic LCD Module For Clusters / Car Radios / Air Conditioner

Wide Operation Graphic LCD Module For Clusters / Car Radios / Air Conditioner
Wide Operation Graphic LCD Module For Clusters / Car Radios / Air Conditioner Wide Operation Graphic LCD Module For Clusters / Car Radios / Air Conditioner Wide Operation Graphic LCD Module For Clusters / Car Radios / Air Conditioner Wide Operation Graphic LCD Module For Clusters / Car Radios / Air Conditioner Wide Operation Graphic LCD Module For Clusters / Car Radios / Air Conditioner Wide Operation Graphic LCD Module For Clusters / Car Radios / Air Conditioner

Large Image :  Wide Operation Graphic LCD Module For Clusters / Car Radios / Air Conditioner

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYB240128A
Payment & Shipping Terms:
Minimum Order Quantity: 1K
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Detailed Product Description
Product Name: RYB240128A Graphic LCD Module FSTN Positive Black On White Or STN Blue White 240*128 Dots With T6963C Model No.: RYB240128A
Dot Format: 240X128 Viewing Angle: 6 O' Clock
LED Backlight: White Controller: T6963C
Operating Temp: -20º C~70º C LCD Type: FSTN Postive
High Light:

Transflective Lcd Display

,

Monochrome Graphic Display

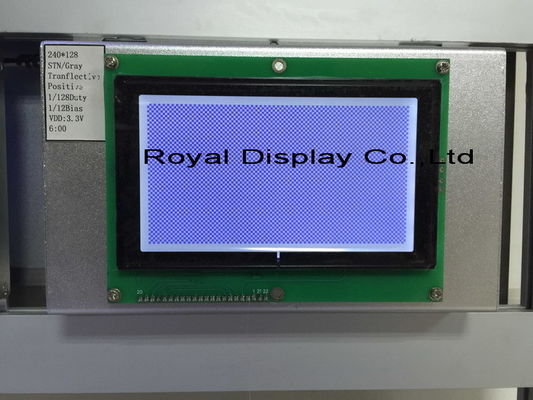

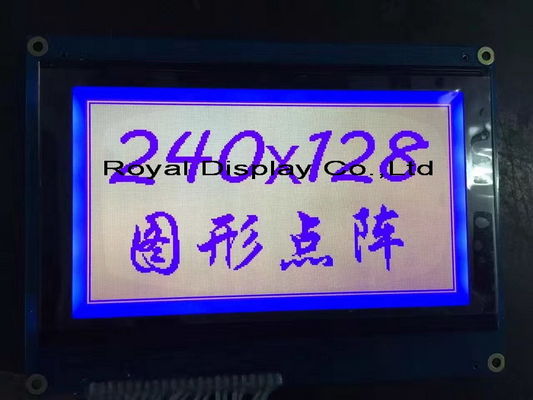

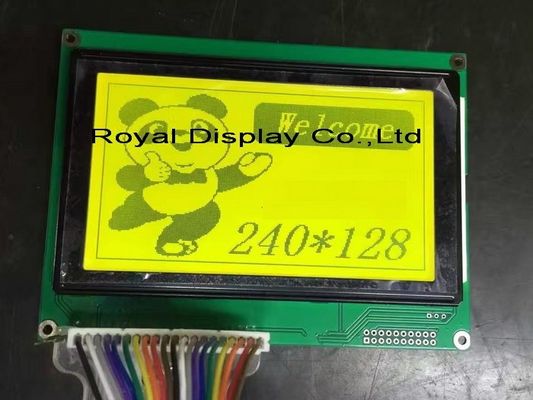

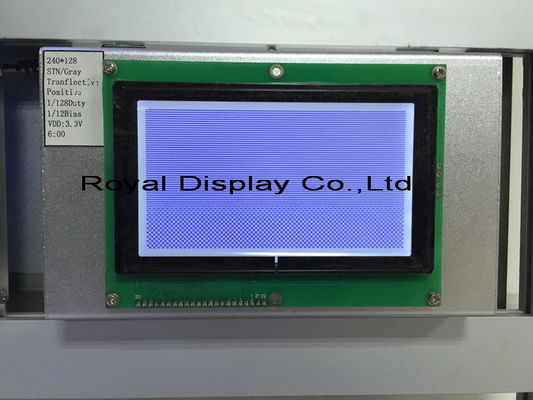

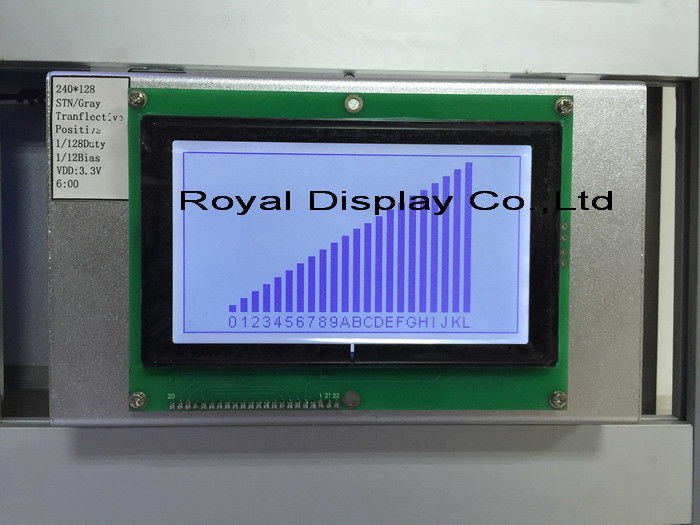

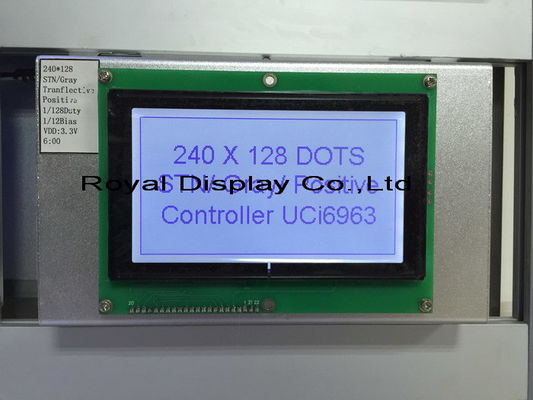

RYB240128A Graphic LCD Module FSTN Positive Black On White or STN Blue White 240*128 Dots With T6963C



Item Description
Product Name 240x128 dots Graphic LCD Module
Model No. RYB240128A
Dot Format 240 x 128
Outline Dimension(mm) 144.0 x 104.0
Assem. Size(mm) 138.0 x 97.0
Viewing Area(mm) 114.0 x 64.0
Pixel Size( mm) 0.42 x 0.42
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Blue, STN-YG
Backlight White or Y/G LED backlight
Driver IC T6963C
Power supply 3V or 5V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C

Wide Operation Graphic LCD Module For Clusters / Car Radios / Air Conditioner 0

Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range
