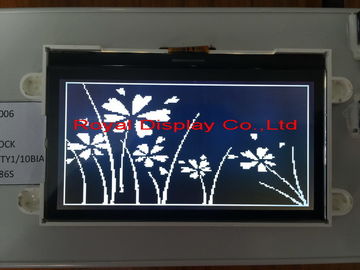

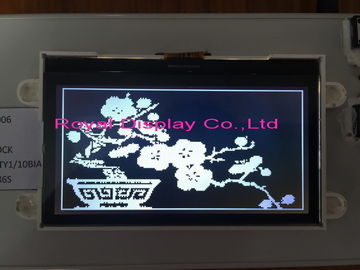

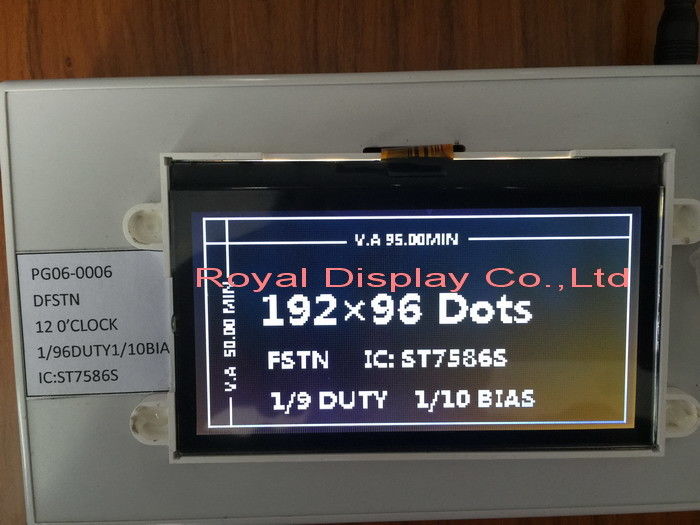

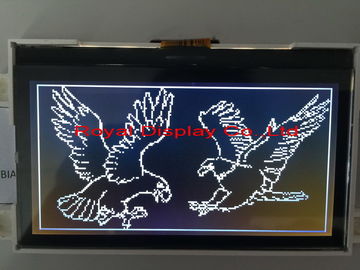

Small Size Standard COG Graphic LCD Module DFSTN LCD Type RYG19264B

Small Size Standard COG Graphic LCD Module DFSTN LCD Type RYG19264B
Small Size Standard COG Graphic LCD Module DFSTN LCD Type RYG19264B  Small Size Standard COG Graphic LCD Module DFSTN LCD Type RYG19264B  Small Size Standard COG Graphic LCD Module DFSTN LCD Type RYG19264B  Small Size Standard COG Graphic LCD Module DFSTN LCD Type RYG19264B

Large Image :  Small Size Standard COG Graphic LCD Module DFSTN LCD Type RYG19264B

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG19264B
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Detailed Product Description
Product Name: COG Graphic LCD Module DFSTN White On Black RYG19264B 192*64 Dots , 3.3V Power Supply Model No.: RYG19264B
Dot Format: 192X64 Viewing Angle: 6 O' Clock
LED Backlight: White Driver IC: ST7586S
Operating Temp: -20º C~70º C LCD Type: DFSTN
High Light:

Transflective Lcd Display

,

Monochrome Graphic Display



COG Graphic LCD Module STN Blue RYG12864A 128*64 dots , 3.3V Power supply



  1. COG Graphic LCD Module
  2. Dots Format , 192x64
  3. Controller , ST7586S OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. LED Back Light , White , Red , Amber .
  6. Widely Use On Hand-held Device .
  7. CN1 SYMBOL CN1 SYMBOL
    1 ESD 17 NC
    2 /CS1 18 VO
    3 /RES 19 XVO
    4 A0 20~23 NC
    5 /WR 24 VG
    6 /RD 25~27 NC
    7~14 DB0~DB7 28 C86
    15 VDD 29 P/S
    16

    VSS

    30 ESD

    Small Size Standard COG Graphic LCD Module DFSTN LCD Type RYG19264B  0

Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range
