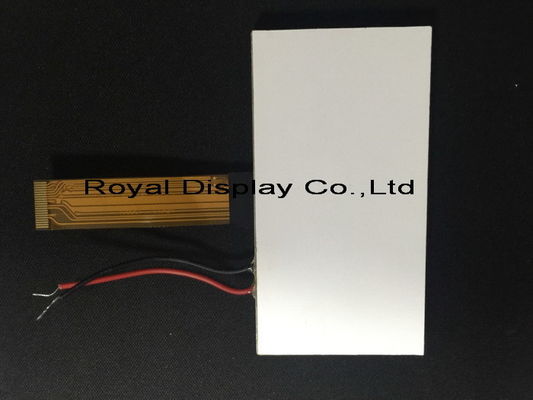

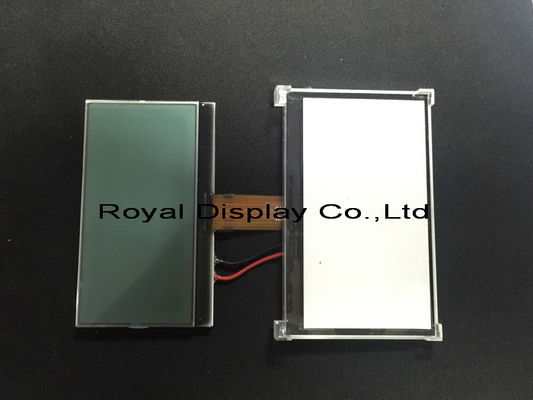

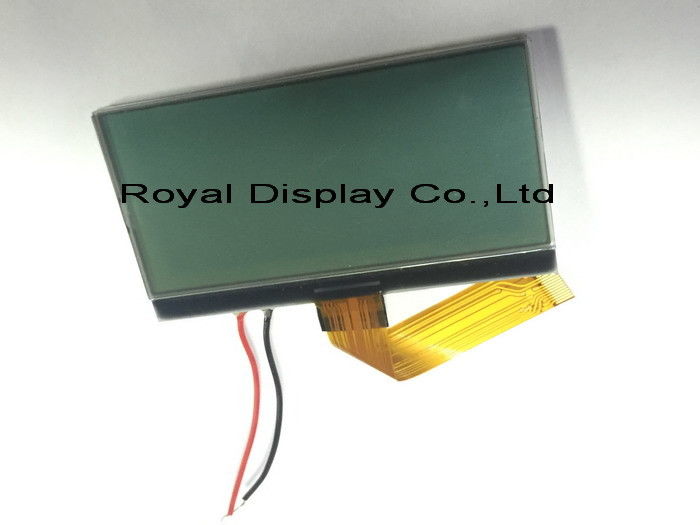

Original Monochrome Graphic Display , Lcd Graphic Display White LED Backlight

Original Monochrome Graphic Display , Lcd Graphic Display White LED Backlight
Original Monochrome Graphic Display , Lcd Graphic Display White LED Backlight Original Monochrome Graphic Display , Lcd Graphic Display White LED Backlight Original Monochrome Graphic Display , Lcd Graphic Display White LED Backlight

Large Image :  Original Monochrome Graphic Display , Lcd Graphic Display White LED Backlight

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG255128A
Payment & Shipping Terms:
Minimum Order Quantity: 2K
Price: Negotiable
Packaging Details: 420pcs/CTN 14Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Contact Now
Detailed Product Description
Product Name: Qr Code Recognizer Graphic LCD Module FSTN RYG255128A 255*128 Dots , 3.3V Power Supply Model No.: RYG255128A
Dot Format: 255X128 Viewing Angle: 6 O' Clock
LED Backlight: White Driver IC: ST7586S
Highlight:

Lcd Graphic Display Module

,

Monochrome Graphic Display





Qr Code Recognizer Graphic LCD Module FSTN RYG255128A 255*128 dots , 3.3V Power supply



  1. COG Graphic LCD Module
  2. Dots Format , 255X128
  3. Controller , ST7586S OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. LED Back Light , White , Red , Amber .
  6. Used for Qr Code Recognizer
  7. CN1 SYMBOL CN1 SYMBOL
    1 VDD 10 NC
    2 /CS 11 V0
    3 RST 12 XV0
    4 A0 13~14 NC
    5 CLOCK 15 VM
    6 MOSI 16 VG
    7 VDD 17~20 NC
    8 VSS
    9

    VD1



    Original Monochrome Graphic Display , Lcd Graphic Display White LED Backlight 0

Typical Applications:

Qr Code Recognizer , N-Pos Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range





Tag:

Lcd Graphic Display Module,

Monochrome Graphic Display,

Transflective Lcd Display
