Custom STN Blue Negative Transmissive LCD Module for Air Purification Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Display |
| Certification: | SGS, ROHS |
| Model Number: | RYD2075BV01 |
| Document: | RYD2075BV01-A.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 5.99 USD EXW negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union, |
| Supply Ability: | 30K pcs/month |
|
Detail Information |
|||
| Display Type: | STN LCD | Polarizer Mode: | Transmissive Negative |
|---|---|---|---|
| Viewing Direction: | 6:00 | Drive Method: | 1/8 Duty, 1/4 Bias |
| Connector Type: | PIN | Module Dimensions: | 111.00 Mm X 70.00 Mm (approx.) |
| Viewing Area (V.A): | 108.00 Mm X 62.00 Mm (approx.) | Pin Pitch: | 2.54 Mm |
| Highlight: | Transmissive Negative LCD Module,Blue STN LCD Display,Air Purification Systems Custom LCD Panel |
||
Product Description
Custom STN Blue Negative Transmissive LCD Module for Air Purification Systems
The RYD2075BV01 is a high-performance, custom-designed monochrome LCD display module. Featuring a Transmissive Negative STN (Blue) mode, this module offers excellent visibility and a sleek, modern aesthetic. It is specifically engineered for industrial control panels, particularly for air purification, HVAC systems, and environmental monitoring equipment. The display integrates multiple numeric segments and dedicated icons to provide comprehensive system status at a glance.
Key Features
- Display Type: STN (Blue) Transmissive Negative - Provides high contrast and a professional blue background appearance.
- Drive Mode: 1/8 Duty, 1/4 Bias - Optimized for low power consumption and stable performance.
- Operating Voltage: Standard 5.0V logic supply, compatible with most microcontrollers and driver ICs.
- Wide Temperature Range:
- Operating: -20°C to +70°C - Reliable performance in harsh environments.
- Storage: -30°C to +80°C - Durable for long-term storage and shipping.
- Viewing Direction: 6 O'Clock - Optimal viewing angle for vertical panel mounting.
- Connector Type: Pin (Metal Pin) - Robust mechanical connection for industrial applications.
- Comprehensive Display Layout: Includes multiple 3-digit and 4-digit numeric fields for precise data reading, alongside dedicated icons for system alerts and functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display Type | STN LCD |
| Polarizer Type | Transmissive Negative |
| Viewing Direction | 6:00 |
| Drive Method | 1/8 Duty, 1/4 Bias |
| Logic Voltage | 5.0V |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Connector type | PIN |
Display Content & Interface
This module is designed to display a wide array of critical system parameters:

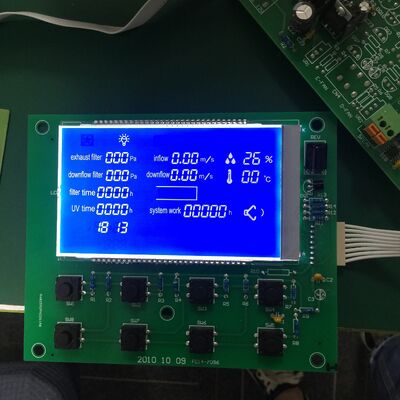

- Numeric Data: Displays values for Exhaust Filter (Pa), Downflow Filter (Pa), Inflow (m/s), Downflow (m/s), Filter Time (h), UV Time (h), System Work (h), Negative Pressure (Pa), and Dust Particle (m³/h).
- Icons & Indicators: Includes symbols for Fan, UV Lamp, Alarm/Warning (Triangle), Humidity (%), Temperature (°C), Airflow, and a "Please Change Filter" alert.
- Status Bar: A dedicated bar graph for filter life or system status.
Applications
- Air Purifiers & Clean Rooms: Ideal for monitoring filter life, airflow speed, and particle counts.
- HVAC Control Systems: Used for displaying temperature, humidity, and negative pressure metrics.
- Industrial Equipment: Suitable for any control panel requiring a durable, multi-variable digital interface.
- Medical & Laboratory Devices: Reliable display for environmental control units.
Our Service Advantages
- Best Quality Control: Every LCD tested with special instruments or main boards before delivery
- Secure Packaging: Packed in anti-static bags with foam box for transportation safety
- Multiple Payment Methods: T/T, Western Union, L/C, PayPal
- Reliable Shipping: Prompt delivery by UPS, EMS, DHL, TNT, or by air
- Customized Service: Professional team providing OEM & ODM service
- Competitive Pricing: Direct factory pricing
- After-sales Support: One year warranty included
Packaging & Shipping
Packaging: All products are packed securely to ensure safety during transit. For small sizes, we use tray + carton packaging, while larger sizes utilize foam slot + carton. Custom packaging solutions are available to meet specific customer requirements.
Shipping: Small quantity orders are shipped via UPS Air-Express, DHL, FEDEX, TNT, or EMS Express service. Large quantity orders can be shipped using buyer's cargo agent in China, or via air/sea transportation through our cargo agents.
Delivery Time:
- Ready-made Sample: within 1 week
- Custom Sample: 1-2 weeks
- Mass production: 3-4 weeks
