Numeric Monochrome Digital Custom LCD Display 7 Segment Type
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Display |
| Certification: | RoHS, REACH, ISO |
| Model Number: | RYG8671A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray |
| Delivery Time: | 20-25 Working Days |
| Payment Terms: | Western Union, MoneyGram, T/T, D/A, D/P |
| Supply Ability: | 30K/ M |
|
Detail Information |
|||
| Type: | Custom Design Lcd | Display Mode: | VA Transmissive Negative (Customized) |
|---|---|---|---|
| Viewing Direction: | 12 O'clock | Interface: | I2C |
| Display Content: | Custom Design | Operating Voltage: | Custom Design |
| Highlight: | Digital Custom LCD Display,Monochrome Custom LCD Display,Numeric Monochrome 7 Segment Display |
||
Product Description

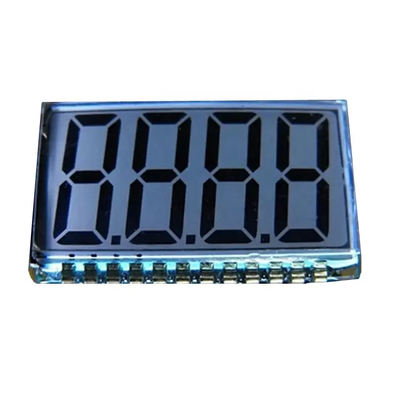

Numeric Monochrome Digital Custom LCD Display 7 Segment Type
Customized Size Numeric Monochrome 7 Segment Display Custom Digital LCD
What Can We Custom?
LCD type : VA(NBT/ EBN/ IBN),TN, HTN, STN, FSTN, FFSTN, DFSTN
Polarizer: Transflective, Transmissive, Reflective, Anti- Glare, Anti-UV
Background: Gray, Yellow- Green, Blue, Black,white
Viewing direction: 6:00, 12:00, 3:00, 9:00, Customization
Operating temperature: 0 ℃ to 50 ℃, -20 ℃ to +70 ℃, -30 ℃ to +80 ℃, -30 ℃ to +85 ℃, Customization
Storage temperature: -10 ℃ to +60 ℃, -20 ℃ to +70 ℃, -30 ℃ to +80 ℃, -40 ℃ to +90 ℃, Customization
Drive Method Static: 1/2 duty to 1/16 duty, 1/2 Bias to 1/5 Bias
Votage(VOP): 1.5V to 5.0 V
Connector/ Connection: Metal PIN, Rubber/Zebra, Heat seal, Flat cable(FPC)
Pitch of Metal PIN: 1.27mm, 1.5mm, 1.8mm, 2.0mm, 2.54 mm
Thickness of Glass: 2.8mm, 1.1mm, 0.7mm, 0.55mm
Silkprint: Without, or with 1 to 4 colors
Quality control: Strictly tested one by one to make sure all the goods best quality
Each item has been checked and in good condition before shipping
Warranty: 12 Months
Service Advantages
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/ T, Western Union,L/ C, PayPal
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Warranty: Usually, product warranty for one year.
7. Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
8. If mass production has any quality problem, customer can return it.
Accessories
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
Applcation
Car Audio devices. instruments, Energy meter, digital meter, etc.
FAQ:
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
Q: Can you design the lcd in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
Q: How to place orders?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1) Product information- Quantity, part number.
2) Delivery time required.
3) Shipping information- Company name, Street address, Phone& Fax number,Destination sea port.
4) Forwarder's contact details if you have any in China.
