RYG12832K 128x32 Graphic LCD Module with Reflective FSTN Panel and ST7567A Driver IC
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Display |
| Certification: | SGS, ROHS |
| Model Number: | RYG12832K |
| Document: | RYG12832K_20220228.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 1.65 USD EXW negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union, |
| Supply Ability: | 50K pcs/month |
|
Detail Information |
|||
| Display Type: | FSTN LCD | Polarizer Mode: | Reflective / Positive |
|---|---|---|---|
| Viewing Direction: | 6:00 | Drive Method: | 1/33 Duty, 1/6 Bias |
| Driver IC: | ST7567A | Connector Type: | LCD + PIN |
| Highlight: | Reflective FSTN Graphic LCD Module,ST7567A Driver IC LCD Display,128x32 Resolution FSTN LCD Panel |
||
Product Description

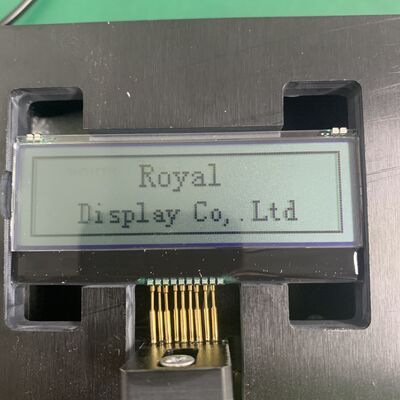

RYG12832K 128x32 Graphic LCD Module FSTN Reflective ST7567A IC
The RYG12832K is a high-performance 128x32 dot matrix Graphic Liquid Crystal Display (LCD) module. Featuring an FSTN (Film Compensated STN) reflective positive panel and the industry-standard ST7567A controller IC, this module delivers sharp, high-contrast graphics without the need for a backlight, making it an excellent choice for low-power, sunlight-readable applications. Its wide operating temperature range and robust pin connection ensure reliable performance in demanding environments.
Key Features
- Display Type: FSTN (Film Compensated STN) - provides superior contrast and wider viewing angles compared to standard TN.
- Polarizer Mode: Reflective, Positive - ideal for outdoor readability and ultra-low power consumption (no backlight required).
- Resolution: 128 x 32 Dots.
- Viewing Direction: 6 O'Clock.
- Drive Method: 1/33 Duty, 1/6 Bias.
- Driver IC: ST7567A (built-in RAM, supports SPI interface).
- Logic Voltage: 3.0V; LCD Driving Voltage: 6.0V.
- Wide Temperature Range: Operating: -30°C to +85°C; Storage: -40°C to +85°C.
- Interface: 10-Pin (V0, XV0, VSS, VDD, SDA, SCL, RST, ESD, etc.) via LCD + PIN connector.
- Mechanical Tolerance: ±0.2mm.
- Compliance: RoHS Compliant.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display Type | FSTN LCD |
| Polarizer Type | Reflective / Positive |
| Viewing Direction | 6:00 |
| Drive Method | 1/33 Duty, 1/6 Bias |
| Logic Voltage | 3.0V; LCD Driving Voltage: 6.0V |
| Operating Temperature | -30°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Driver IC | ST7567A |
| Connector type | LCD + PIN |
Applications
With its reflective FSTN panel, wide temperature range, and low power consumption, the RYG12832K is ideal for:
- Industrial Instruments: Portable meters, data loggers, and handheld testing equipment.
- Medical Devices: Blood glucose meters, thermometers, and portable monitors.
- Smart Home & Utility Meters: Gas meters, water meters, and heat cost allocators.
- Consumer Electronics: Remote controls, audio equipment, and battery chargers.
- Automotive & Outdoor Devices: GPS trackers, outdoor sensors, and dashboard accessories.
Our Service Advantages
- Best Quality Control: Every LCD tested with special instruments or main boards before delivery
- Secure Packaging: Packed in anti-static bags with foam box for transportation safety
- Multiple Payment Methods: T/T, Western Union, L/C, PayPal
- Reliable Shipping: Prompt delivery by UPS, EMS, DHL, TNT, or by air
- Customized Service: Professional team providing OEM & ODM service
- Competitive Pricing: Direct factory pricing
- After-sales Support: One year warranty included
Packaging & Shipping
Packaging: All products are packed securely to ensure safety during transit. For small sizes, we use tray + carton packaging, while larger sizes utilize foam slot + carton. Custom packaging solutions are available to meet specific customer requirements.
Shipping: Small quantity orders are shipped via UPS Air-Express, DHL, FEDEX, TNT, or EMS Express service. Large quantity orders can be shipped using buyer's cargo agent in China, or via air/sea transportation through our cargo agents.
Delivery Time:
- Ready-made Sample: within 1 week
- Custom Sample: 1-2 weeks
- Mass production: 3-4 weeks
