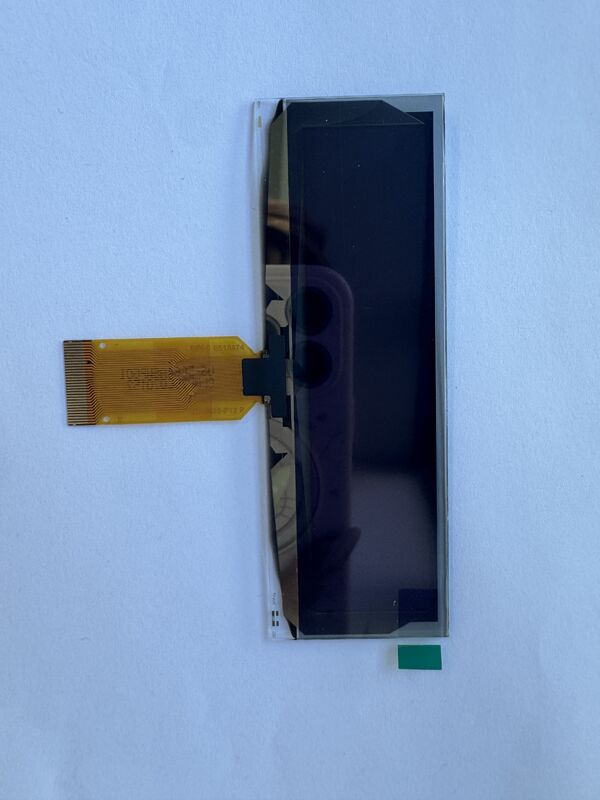

UG-5664ASWPG01 3.55inch 256*64 Pixels OLED Display Module with SSD1322 Driver IC for Guitar
Product Details:
| Place of Origin: | China |
| Brand Name: | WiseChip |
| Certification: | SGS, ROHS |
| Model Number: | UG-5664ASWPG01 |
| Document: | SAS1-0E071-A UG-5664ASWPG01...1).pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 19.00 USD EXW negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union, |
| Supply Ability: | 20K pcs/month |
|
Detail Information |
|||
| Part Number: | UG-5664ASWPG01 | Display Type: | PMOLED |
|---|---|---|---|
| Size: | 3.55inch | Pixel: | 256*64 |
| Interface: | 8-bit 68XX/80XX Parallel, 4-wire SPI, 3-wire SPI | Panel Size: | 99.20*33.50*2.00 (mm) |
| Module Size: | 99.20*68.88*2.00 (mm) | Active Area: | 87.522*21.282 (mm) |
| Driver IC: | SSD1322 | Wide Range Of Operating Temperature: | -40 To +85 ºC |
| Wide Range Of Storage Temperature: | -40 To +85 ºC | ||
| Highlight: | 3.55inch OLED Display Module,256*64 Pixels PMOLED Display,SSD1322 Driver IC Graphic OLED Display |
||
Product Description
UG-5664ASWPG01 3.55inch 256×64 OLED Display White Color for Guitar
The UG-5664ASWPG01 is a high-performance 3.55-inch passive matrix OLED display module from WiseChip Semiconductor Inc. Featuring a crisp 256×64 resolution and a wide active area of 87.522 × 21.282 mm, this module delivers sharp monochrome white graphics with 16 gray scales. Designed for durability and versatility, it integrates the industry-standard SSD1322 driver IC and supports multiple interface options including 68XX/80XX parallel, 4-wire SPI, and 3-wire SPI. With an ultra-wide viewing angle, high contrast ratio exceeding 10,000:1, and an extended operating temperature range of -40°C to +80°C, this module is ideal for industrial, medical, and outdoor applications requiring reliable performance in harsh environments.
Key Features
- Display Type: Passive Matrix OLED (PMOLED)
- Resolution: 256 × 64 Pixels
- Display Color: Monochrome White with 16 Gray Scales
- Active Area: 87.522 × 21.282 mm
- Module Size: 99.20 × 68.88 × 2.00 mm
- Driver IC: SSD1322
- Interface: 8-bit 68XX/80XX Parallel, 4-wire SPI, 3-wire SPI
- High Contrast: >10,000:1 in dark room conditions
- Wide Viewing Angle: Free degree
- Low Power Consumption: Sleep mode current as low as 2µA (VCC)
Technical Specifications
| Parameter | Specification |
|---|---|
| Pixels | 256×96 |
| Display Type | PMOLED |
| Active Area | 3.55 inch |
| Interface | 8-bit 68XX/80XX Parallel, 4-wire SPI, 3-wire SPI |
| Surface | Normal Glare |
| Driver IC | SSD1322 |
| Operating Temperature | -40°C to +80°C |
| Storage Temperature | -40°C to +85°C |
| Panel Size | 99.20×33.50×2.00 (mm) |
| Module Size | 99.20×68.88×2.00 (mm) |
| Active Area | 87.522×21.282 (mm) |
Applications
OLED display modules are widely adopted across diverse industries due to their exceptional visual performance, ultra-thin form factor, and energy efficiency.
- Industrial Control Systems: Clear, high-contrast readouts in HMI panels and instrumentation for reliable operation in harsh environments
- Smart Wearables: Low power consumption and slim profile for smartwatches, fitness trackers, and healthcare monitors
- Medical Devices: Crisp, easy-to-read displays for portable diagnostic tools and patient monitoring equipment
- Automotive Applications: Dashboard clusters, infotainment systems, and head-up displays with wide viewing angles
Our Service Advantages
Best Quality Control: Every LCD tested with special instruments or main boards before delivery
Secure Packaging: Packed in anti-static bags with foam box for transportation safety
Multiple Payment Methods: T/T, Western Union, L/C, PayPal
Reliable Shipping: Prompt delivery by UPS, EMS, DHL, TNT, or by air
Customized Service: Professional team providing OEM & ODM service
Competitive Pricing: Direct factory pricing
After-sales Support: One year warranty included
