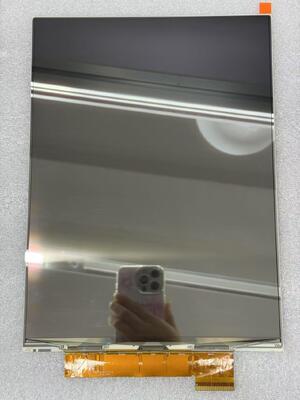

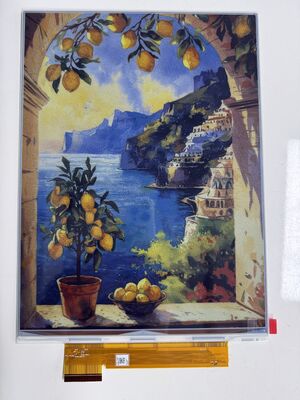

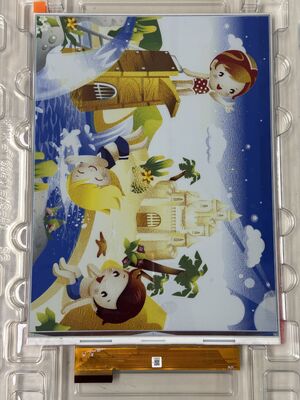

13.3 Inch E Ink Display Module with 1200*1600 Pixels Six Color E Paper for E Reader
Product Details:
| Place of Origin: | China |
| Brand Name: | E-ink |
| Certification: | SGS, ROHS |
| Model Number: | EL133UF1 |
| Document: | T133A01_1.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 229 USD EXW negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 50K pcs/month |
|
Detail Information |
|||
| Screen Size: | 13.3'' | Active Area: | 202.8*270.4 Mm |
|---|---|---|---|
| Pixel Pitch: | 0.169*0.169 Mm | Outline Dimension: | 208.8*284.7*0.85 Mm |
| Display Mode: | Reflective Mode | FPI: | E Ink Spectra 6 |
Product Description
High Resolution 13.3 Inch E Ink Display Module featuring 1200 × 1600 pixels with 6-color e-paper technology, designed for e-readers and digital signage applications.
An e-paper display, also known as an electronic paper display or e-ink display, is a display technology that mimics the appearance of ink on paper. It provides a low-power, reflective display that is readable even in bright sunlight, making it suitable for various applications.
E-paper displays use tiny microcapsules containing charged white and black particles suspended in a clear fluid. These microcapsules are sandwiched between two transparent electrodes with a layer of circuitry behind them. When a positive or negative electric field is applied, the charged particles move, causing the microcapsules to appear white or black.
Unlike traditional displays that emit light, e-paper displays rely on ambient light to illuminate the screen. This eliminates the need for a backlight, resulting in significantly lower power consumption. The display technology is bistable, meaning it retains the image without using any power until the next update.
| Item | Standard Value |
|---|---|
| LCD Type | E-paper |
| Screen Size | 13.3 inch |
| Active Area | 202.8 × 270.4 mm |
| Outline Dimension | 208.8 × 284.7 × 0.85 mm |
| Resolution | 1200 × 1600 |
| Operating & Storage Temperature | 0 to +40°C & -25 to +60°C |
| Storage Relative Humidity | 30 to 60% |
- Excellent readability in various lighting conditions
- Wide viewing angle and high contrast
- Does not cause eye strain
- Low power consumption and long battery life
- Relatively robust and resistant to damage from impacts or vibrations
- Can be manufactured in various sizes and resolutions
- New developments including higher resolutions, faster refresh rates, improved color reproduction, and increased flexibility
- Specialized in LCD display module design, development and production for over 10 years
- Each product undergoes professional design, debugging, production and quality inspection
- Broad selection of off-the-shelf products available with same-day shipping
- Custom services with drawings and procedures for customer confirmation
- Sunlight readable options with capacitive and resistive touch options
- Reliable warranty service with one-year warranty period
Packaging: All products are properly packed to ensure safety. Small sizes use tray + carton, larger sizes use foam slot + carton. Custom packaging available to meet specific requirements.
Shipping: Small quantity orders ship via UPS Air-Express, DHL/FEDEX/TNT/EMS Express. Large quantity orders ship via buyer's cargo agent in China, or by air/sea through our cargo agent.
Delivery Time:
- Ready-made Sample: within 1 week
- Custom Sample: 1-2 weeks
- Mass production: 3-4 weeks
Yes, we offer OEM & ODM service. Please send us your requirements.
We accept TT, West Union, and PayPal.
Yes, we offer samples but you need to pay the sample fee and delivery fee.
It depends on the specific product requirements. Different needs determine the production time.
PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instruction by Clients → Delivery → Cargo tracking → Receipt of cargo
