|Active Area:||27.00x34.56mm||Applications:||Smart Watch|
|Display Type:||COG TFT Active Matrix||Display Mode:||Pure Reflective|
E Ink Screen,
E Ink Paper Display

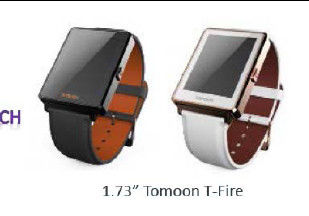

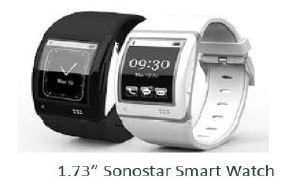

1.73 Inch E-Paper E Ink Display for Smart Watch
DPI Resolution: 190
Display Type: COG TFT active matrix
Display Mode: Pure Reflective
Contrast: Super High
Display Color: Real Black/White
Interface: Serial peripheral interface available
Operating Temperature: 0ºC~50ºC
Storage Temperature: -10ºC~60ºC
Feture: Super thin,super light
Application: ESL,Smart Watch
What is E Ink?
E Ink is the creator of electronic ink — the optical component of a film used in Electronic Paper Displays. Although futuristic-sounding, electronic ink is actually a straightforward fusion of existing knowledge of chemistry, physics and electronics to create this new material. It's so much like paper, it actually utilizes the same pigments used in the printing industry today.
What is a Bistable Display:
E Ink's technology is commonly referred to as "bistable". What does this mean? Bistable means that the image on an E Ink screen will be retained even when all power sources are removed. In practice, this means that the display is consuming power only when something is changing. For example, when reading on an eReader, power is only needed when turning to a new page but no power is consumed by the display while reading the page. This is most noticeable when an eReader goes into sleep mode yet there is still an image being displayed. By contrast, with a traditional LCD, the display is needs to be refreshed around 30X per second, regardless of the whether anything new is being displayed. Bistability significantly reduces the power consumption of displays using E Ink and is a key reason eReaders have such long battery life.
