2.25inch 256*96 Pixel OLED Display Module with SPI Interface for WiFi Devices
Product Details:
| Place of Origin: | China |
| Brand Name: | Royal Display |
| Certification: | SGS, ROHS |
| Model Number: | RYO256096A0W01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 13.90 USD EXW negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 30K pcs/month |
|
Detail Information |
|||
| Part Number: | RYO256096A0W01 | LCD Type: | OLED |
|---|---|---|---|
| Size: | 2.25inch | Pixel: | 256*96 |
| Interface: | 4-Wire SPI | Panel Size: | 61.1(W)×26.15(H) ×1.80(T) |
| Module Size: | 111.1(W)×26.15(H) ×2.06(T) | Active Area: | 53.0(W)×21.7(H) |
| Driver IC: | SP5110 | Wide Range Of Operating Temperature: | -40 To +85 ºC |
| Wide Range Of Storage Temperature: | -40 To +85 ºC | ||
| Highlight: | 2.25inch OLED Display Module,256*96 Pixel OLED Screen Module,SPI Interface PMOLED Display |
||
Product Description

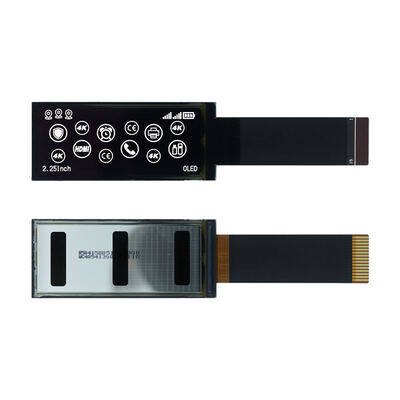

2.25-inch 256*96 Pixel OLED Display with SPI Interface
The RYO256096A0W01 is a high-performance 2.25-inch passive matrix OLED (PMOLED) display module featuring a resolution of 256 * 96 pixels for sharp and vibrant visual output. Driven by the SP5110 driver IC, it supports a 4-wire SPI interface, enabling efficient data transfer and seamless integration with embedded systems.
Designed with an ultra-thin form factor, the module offers excellent visual characteristics including high contrast ratio, wide viewing angle, and fast response time. With self-emissive pixels requiring no backlight and full-color capability, this OLED display delivers outstanding performance for industrial control, portable devices, and human-machine interface applications.
Key Features
- High-resolution 256 * 96 pixel PMOLED display
- 4-wire SPI interface for efficient data transfer
- Ultra-thin form factor with compact dimensions
- High contrast ratio and wide viewing angle
- Fast response time characteristic of OLED technology
- Low power consumption with pixel-level illumination
- Wide operating temperature range: -40°C to +85°C
- Self-emissive pixels requiring no backlight
- Full-color capability for vibrant displays
Technical Specifications
| Parameter | Specification |
|---|---|
| Pixels | 256*96 |
| Display Type | OLED |
| Active Area | 2.25 inch |
| Interface | 4-Wire SPI |
| Surface | Normal Glare |
| Driver IC | SP5110 |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Panel Size | 61.1 mm * 26.15 mm * 1.80 mm |
| Module Size | 111.1 mm * 26.15 mm * 2.06 mm |
| Active Area | 53.0 mm * 21.7 mm |

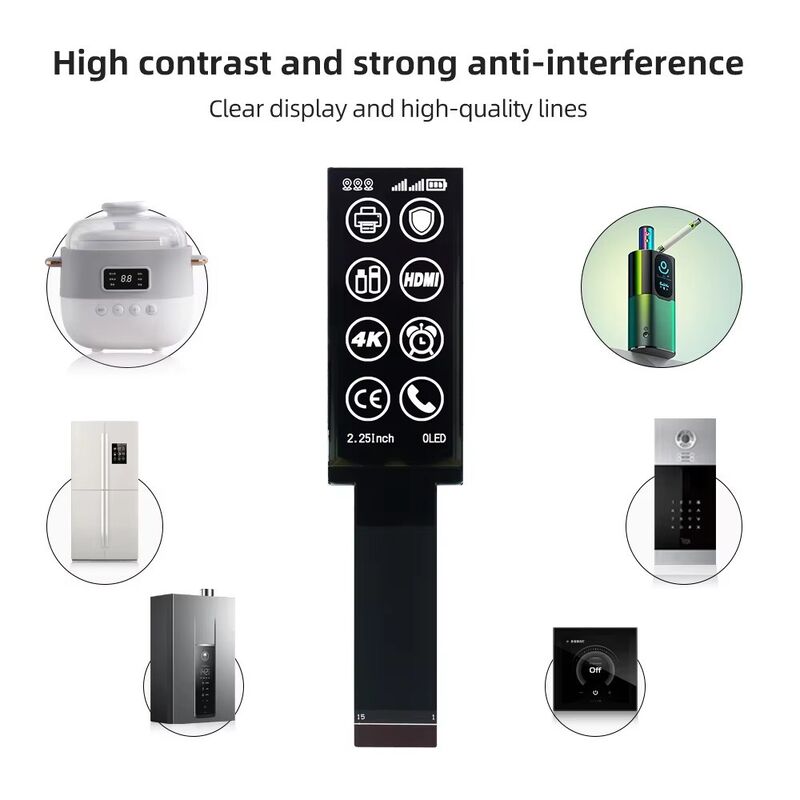

Applications
OLED display modules are widely adopted across diverse industries due to their exceptional visual performance, ultra-thin form factor, and energy efficiency.
- Industrial Control Systems: Clear, high-contrast readouts in HMI panels and instrumentation for reliable operation in harsh environments
- Smart Wearables: Low power consumption and slim profile for smartwatches, fitness trackers, and healthcare monitors
- Medical Devices: Crisp, easy-to-read displays for portable diagnostic tools and patient monitoring equipment
- Automotive Applications: Dashboard clusters, infotainment systems, and head-up displays with wide viewing angles
Our Service Advantages
Best Quality Control: Every LCD tested with special instruments or main boards before delivery
Secure Packaging: Packed in anti-static bags with foam box for transportation safety
Multiple Payment Methods: T/T, Western Union, L/C, PayPal
Reliable Shipping: Prompt delivery by UPS, EMS, DHL, TNT, or by air
Customized Service: Professional team providing OEM & ODM service
Competitive Pricing: Direct factory pricing
After-sales Support: One year warranty included
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a manufacturer in China. Our factory is located in Dongguan, and our office is located in Shenzhen.
How can I get samples?
Send inquiry → Offer quotation → Confirm quotation & pay tooling charge → Provide drawing → Confirm drawing → Make tooling & samples → Samples finished → Delivery via freight or sea collection.
Can you design the LCD according to our requirements?
Yes. We have a professional team to meet all your requirements.
How to place orders?
If you confirm samples are acceptable, please send us your purchase order by Email or Fax. We will then send you an Invoice for deposit payment. We require the following information for your order:
- Product information: Quantity, part number
- Delivery time required
- Shipping information: Company name, Street address, Phone & Fax number, Destination sea port
- Forwarder's contact details if you have any in China
- Product information: Quantity, part number
- Delivery time required
- Shipping information: Company name, Street address, Phone & Fax number, Destination sea port
- Forwarder's contact details if you have any in China
How long for mass production?
25-30 business days. The timeline depends on different order quantities and part numbers.
