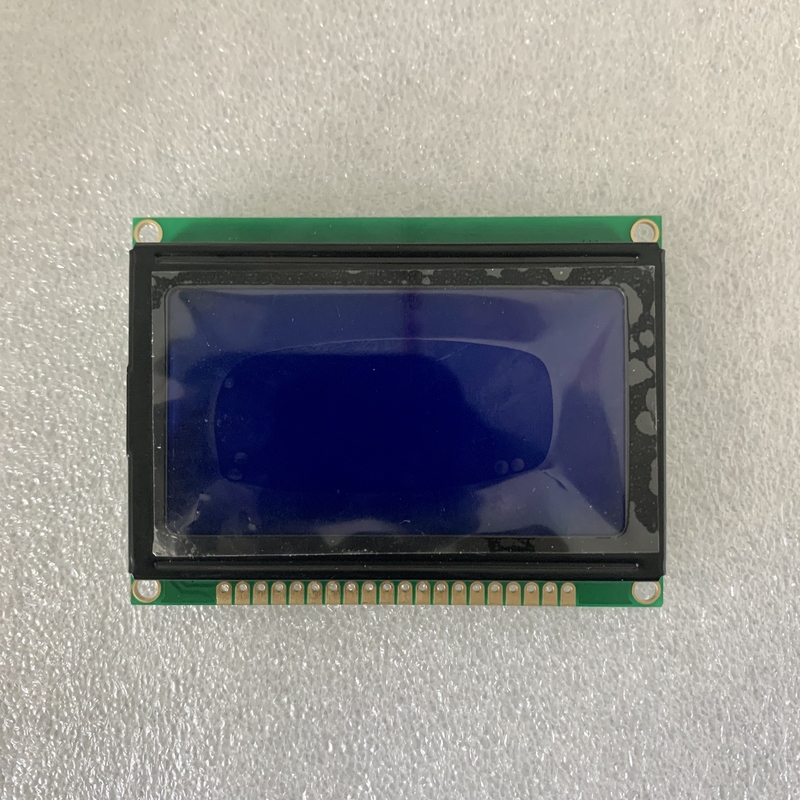

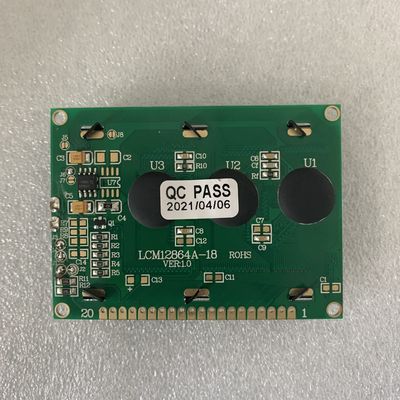

LCM12864A 128x64 LCD Display Module STN Blue Negative 8-bit MPU Interface White LED Side Backlight
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Royal Display or ODM/OEM |
| Certification: | SGS, ROHS |
| Model Number: | LCM12864A |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K pcs/month |
|
Detail Information |
|||
| Model: | LCM12864A | Display Type: | 128 × 64 Dots |
|---|---|---|---|
| Drive Condition: | 1/64 Duty, 1/9 Bias | Outline Dimension: | 75.0(L) × 55.0(W) × 12.0(T) Mm |
| Viewing Area: | 60.0(L) × 32.4(W) Mm | Dot Size: | 0.39(W) × 0.39(H) Mm |
| Highlight: | 128x64 LCD display module,STN blue negative LCD,8-bit MPU interface LCD |
||
Product Description
LCM12864A 128x64 LCD Display Module STN Blue Negative 8-bit MPU Interface White LED Side Backlight
The famous brands display we have
BOE: Large-scale production, AMOLED, all-size dominance. You could get BOE LCD Modules from us, or customize display here using BOE glass.
AUO: High-quality TFT displays, perfect for many automotive and industrial scenarios. You could share product drawing or part number with us, we will check for lead time and quotation for you.
Innolux: Both glass only or original displays are available here.
Tianma: Provide abundant solutions for industrial and custom displays.
Waveshare: It's embeded solutions integrator/ reseller.
E-paper displays: E-ink, Good display, DKE or other e-paper display brands.
If you are looking for more cost-effective or some products that are EOL, you could ask for recommendations, we will send you quotation and lead time based on your requirements.
Product Description
| Item | Description |
| Model | LCM12864A |
| Display Type | 128 × 64 Dots |
| LCD Type | STN, Negative (Blue), Transmissive |
| Drive Condition | 1/64 Duty, 1/9 Bias |
| Viewing Direction | 6 O’clock |
| Backlight | White LED Side Light |
| Interface | 8-bit MPU Interface |
| Driver IC | 0107, 0108 |
| Outline Dimension | 75.0(L) × 55.0(W) × 12.0(T) mm |
| Viewing Area | 60.0(L) × 32.4(W) mm |
| Dot Size | 0.39(W) × 0.39(H) mm |
| Dot Pitch | 0.43(W) × 0.43(H) mm |
| Operating Temp | -20℃ ~ 70℃ |
| Storage Temp | -30℃ ~ 80℃ |
Short Description:
128×64 Dot Matrix LCD Module, STN Blue Negative Display, 8-bit MPU Interface, White LED Side Backlight, Wide Operating Temperature for Industrial Instruments.
Our Advantages
Over 10-year expert in LCD modules, 20,000m² own factory; 12-month product warranty
OEM/ODM and customization services available, Professional R&D team and overseas sales team
100% inspection before shipment; fast delivery time; Items carry RoHS, CE and SGS marks
Products widely used in instruments and handheld devices, and the medical and automotive industries
Application
Our lcd module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, dv, security monitoring, carcorder, pmp, mid and education learning aid, pos machine etc.
| Product | Application |
| Small-size tft lcd display (1.44inch~4.3inch) | Mobile device, watch, toy, medical equipment, office electronic equipment, camera, air-condition display, etc. |
| Mid-size tft lcd display (5.0inch~10.0inch) | Mobile device, medical equipment, car, automotive product, industrial control equipment, pos, pda, household video doorbell, air-condition display, etc. |
| Big-size tft lcd display (10inch and above) | Educational product, automotive product, video door phone, audiovisual equipment, dvd player, media play, tablet pc, security products, etc. |
| Tn/stn//fstn/oled | Elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | Industrial control equipment, electronic product, toy, security product, it digital product, sports equipment, etc. |
FAQs
ABOUT TFT LCD DISPLAY
Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.
Product Overview
The LCM12864A is a high-performance 128×64 dot matrix LCD module featuring STN negative blue display technology for sharp and clear visuals. Equipped with white LED side backlight and an 8-bit MPU parallel interface, it is driven by ICs 0107 and 0108. With an operating temperature range of -20℃ to 70℃, it is ideal for industrial controls, testing instruments, medical devices, and portable terminals. Compact design, easy installation, and high reliability.
Features
Broad selection of off the shelf products
Sunlight readable options available
Capacitive and Resistive options available for every display
Most products are kept in stock and can ship same day
Multiple interfaces available
Customizable FPC cables, LED backlights, and bezels
