240*64 graphic STN blue negative transmissive LCD Module
Product Details:
| Place of Origin: | China |
| Brand Name: | ROYAL DISPLAY |
| Certification: | SGS, ROHS |
| Model Number: | RYG24060X |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | 13.9 USD exw |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A |
| Supply Ability: | 50K pcs/month |
|
Detail Information |
|||

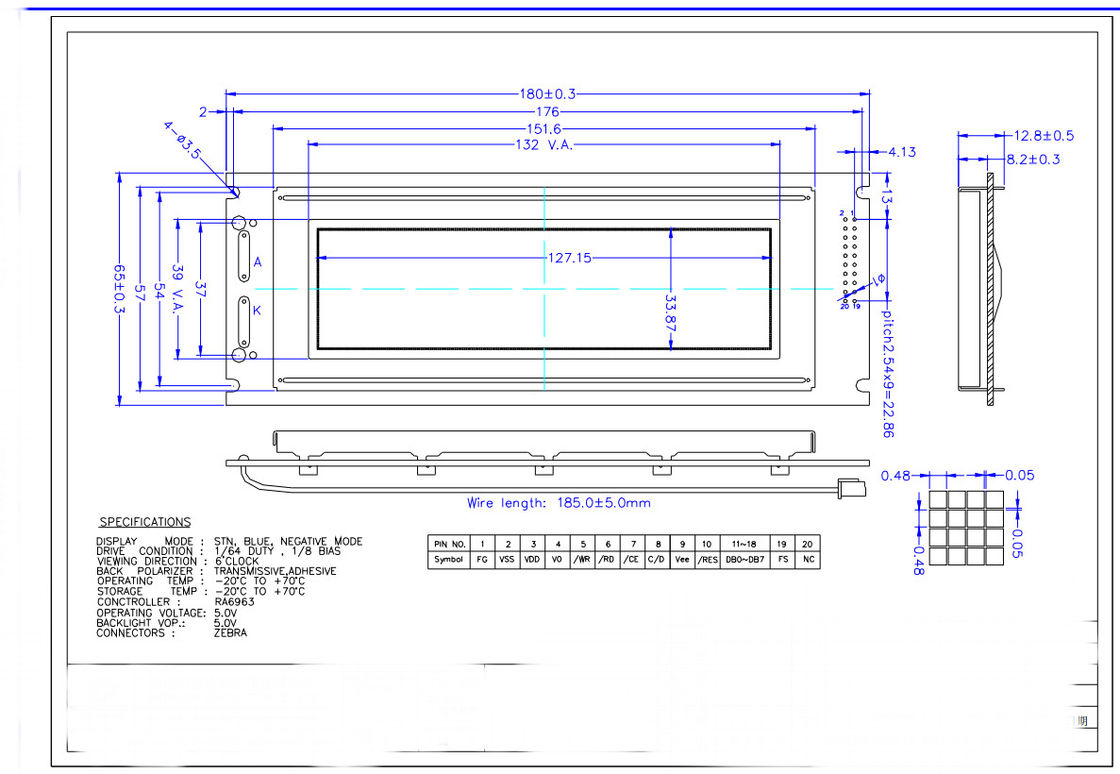

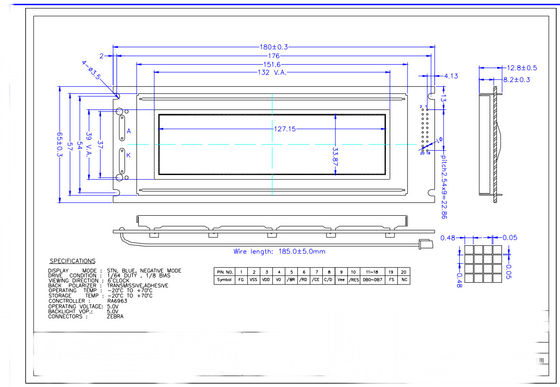

| Module Size: | 180*65*12.8 Mm | View Area: | 132*39 Mm |
|---|---|---|---|
| Dot Size: | 0.48*0.48 Mm | Dot Pitch: | 0.53*0.53 Mm |
| Driving Method: | 1/64 Duty, 1/8 Bias | LCD Controller: | RA6963 Or Equivalent |
| Operating Temp: | -20 To +70 Degree C | Brightness: | 200 Customizable |
Product Description
240*64 graphic STN blue negative transmissive LCD Module
Product Description
This product is 240*60 graphic LCD Module, the common used IC are T6963C, RA6963, SBN0064G, ST7920, etc.
We have common design for this kind of 240*60 graphic display, while the PCB might have some differences.
To make sure that our product matches your need perfectly, you could send us your drawing or spec. We will send you quotation and lead time. The modification of PCB and other material won't cost much, please feel free to contact us for more details.
| Item | Specification |
| Product Name | 240*60 dots Graphic LCD Module |
| Model No. | RYG24060X |
| Dot Format | 240*60 |
| LCD Display Mode | STN, transmissive, negative |
| View Angel | 6H 12H optional |
| LED Lifetime | 30,000 hrs |
| Backlight | WHITE |
| Drive IC | RA6963 or equavilent |
| Operation Voltage(V) | 5V or 3.3V |
| LCM technological conditions | RoHS |
| Operating Temp | -20º C to +70ºC |
| Storage Temp | -30º C to +80ºC |
Product Applications
Graphic LCD panels with a resolution of 240*60 pixels can be used in various applications that require graphical information display. Here are a few examples:
Industrial control panels;
Measurement instruments;
Medical equipment;
POS terminals;
Communication devices.
