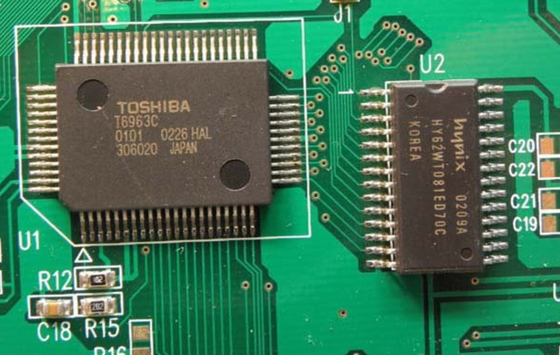

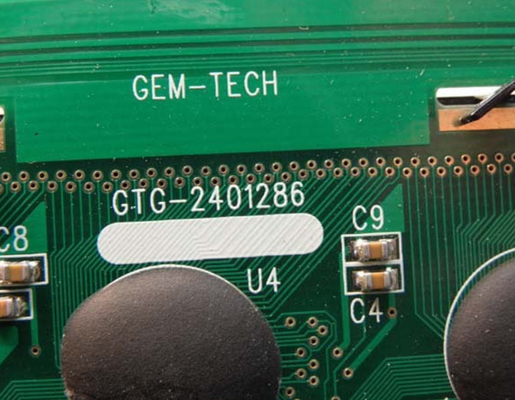

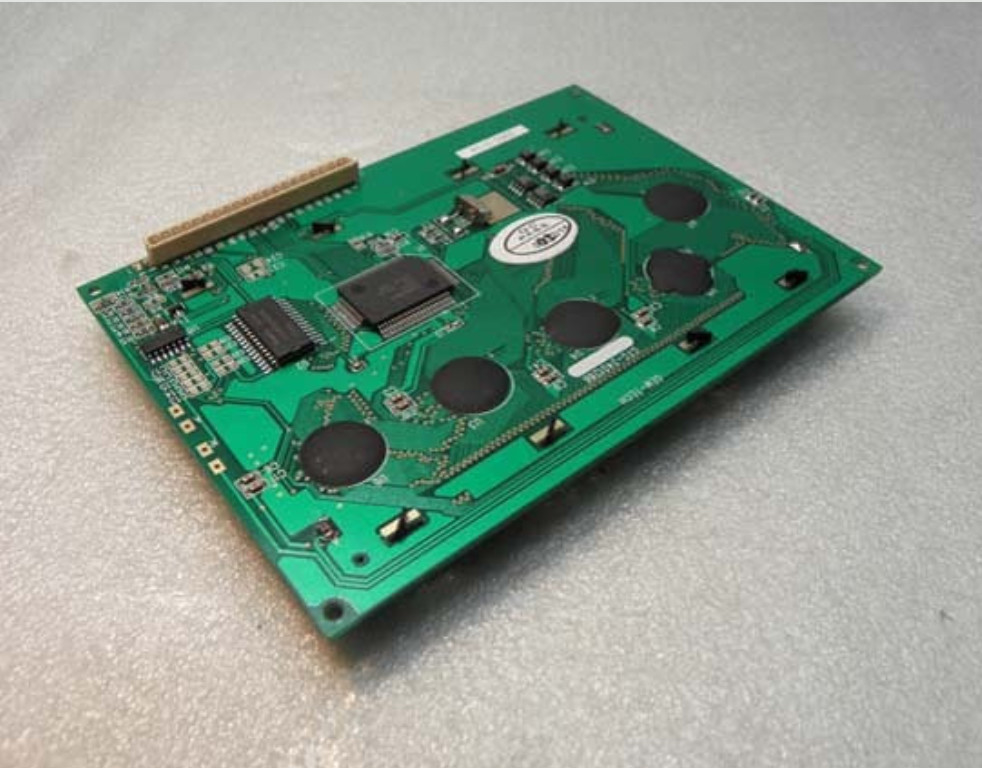

240*128 Big Size FSTN Transmissive Negative 20 Pin LCD Module Industrial Display


240*128 Big Size FSTN Transmissive Negative 20 Pin LCD Module Industrial Display


How to Choose Suitable Product

Display types:
a) By LCD technology: We can classified them as TN, STN, FSTN, DSTN, TFT, OLED LCD Modules. And we also sell E-paper displays, which is electrophoretic displays.
b) By backlight types: There are transmissive, transflective, reflective displays, and you can see if it negative ( dark text on light background) or positive (light text on dark background).
c) By interface: Parallel (8/16 bit, SPI, I2C, MCU, MIPI, LVDS, HDMI. And here are some common interfaces for different of LCD Modules:
Character/Graphic LCD: Parallel, I2C,
FSTN/STN LCD: Parallel, SPI, Serial,
Monochrome TFT LCD: 8/16/24-bit parallel RGB, SPI,
Color TFT LCD: 16/18/24-bit Parallel RGB, MIPI, DSI if with touch screen, there will be another interface for touch screen,
OLED: SPI, I2C, Parallel,
E-paper: SPI







Customize Your Own LCD Module

If you want to customize your own LCD Modules, here are some tips:
1)Display requirements: Resolution, Display type, Display mode, Color, View direction, Contrast Ratio, Brightness.
2) Electrical interface: Interface types, Controller IC, Voltage levels (e.g.,3.3 v, 5v or other), Touch panel (resistive or capacitve, single touch or multi touch)
3) Backlight and Viewing: Brightness, Dimming control, backlight voltage,
4) Mechanical specs: Active area, View area, Mounting type, Connector type ( Pin Header,FPC, etc.), if it cover panel, then if it's air bonding or optical bonding.
It would be the best if you already got the drawing and share with us, but if you need to build it from scratch, we would love to explore all the details with you. We would help you design the LCD Module and PCBA and optimize the drawing and samples till you satisfied.


Applications

It is a 240*128 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, and various instruments, such as evaluation instruments, power system equipment, laboratory instruments, medical instruments, fire protection systems, temperature and humidity transmissions, pressure transmissions, analytical instruments, environmental protection testing instruments, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.


Our Service

1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.

2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5. Professional Customized Service: Professional team provide OEM&ODM service.

6. Competitive Price: Give you a direct factory price.
7. Better After-sales Service: Long for one year warranty.
