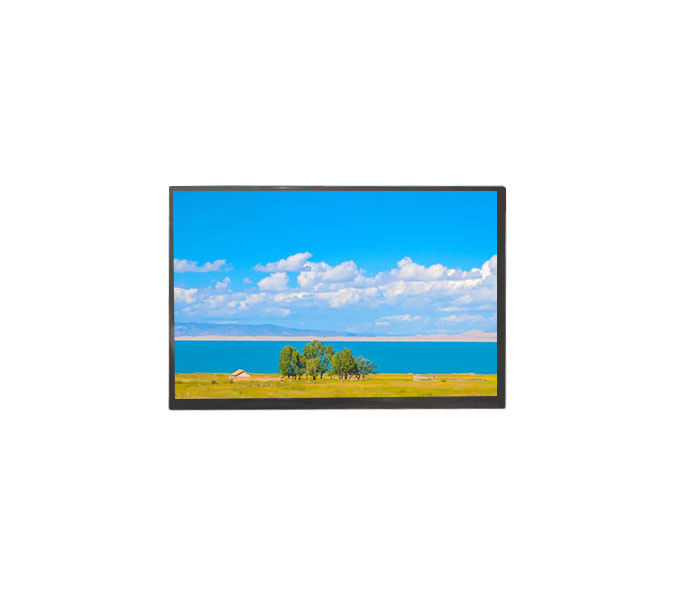

15.6'' 1920*1080 RGB Tianma All View OLED high contrast Lvds LCD Module

15.6'' 1920*1080 RGB Tianma All View TFT Lvds LCD Module

Product Description

TFT LCD (Thin Film Transistor) refers to a thin film transistor, that is, each liquid crystal pixel is driven by a thin film transistor integrated behind the pixel, so that it can achieve high speed, high brightness, and high contrast. It is currently very popular. One of the best LCD color display devices. Each pixel of the TFT is controlled by the TFT integrated on itself and is an active pixel. Therefore, not only can the speed be greatly improved, but the contrast and brightness can also be greatly improved, while the resolution has also reached a very high level. The table is our 5'' TFT LCD Display.

Product Features

1. Display Features

• Screen Size: 15.6 inches (diagonal)
• Resolution: 1920 × 1080 (Full HD)
• Aspect Ratio: 16:9
• Pixel Arrangement: RGB vertical stripe
• Color Depth: 16.7 million colors (8-bit RGB)
• Brightness: Typically 400 cd/m² (varies by model)
• Contrast Ratio: 800:1 to 1200:1 for accurate visuals
• Viewing Angle: Wide viewing angles (80°/80°/80°/80° or better)
• Response Time: Typically 25ms or faster

2. Interface & Connectivity

• Interface Type: LVDS (Low Voltage Differential Signaling), commonly 2-channel 8-bit LVDS
• Signal Input: Supports RGB data transmission
• Refresh Rate: Usually 60Hz (some high-end models support 120Hz)
• Connector Type: Standard LVDS connector for easy integration

3. Backlight & Power

• Backlight Type: LED backlight with long lifespan (~50,000 hours)
• Power Consumption: Typically 5-12V for display and 3.3V/12V for backlight
• Backlight Driver: External or integrated LED driver required

4. Durability & Environmental Properties

• Operating Temperature: -20°C to 70°C (varies by model)
• Storage Temperature: -30°C to 80°C
• Anti-Glare & Anti-Reflective Coating (for outdoor readability, optional)
• Low Power Consumption: Suitable for battery-powered devices

5. Additional Features

• Touch Panel Support: Can be paired with a capacitive or resistive touch panel
• Sunlight Readability (Optional): High-brightness versions available for outdoor use
• EMI Shielding (Optional): Reduces electromagnetic interference for industrial applications

Product Applications

1. Industrial & Embedded Systems

• Human-Machine Interfaces (HMIs): Used in industrial control panels for real-time monitoring.
• Embedded Systems: Integrated into Raspberry Pi, FPGA-based systems, and IoT applications.
• Medical Equipment: Display for diagnostic tools, patient monitoring, and imaging devices.

2. Consumer Electronics

• Laptops & Notebooks: Used in mid-range to high-end laptops.
• Gaming Monitors & Consoles: High-resolution display for gaming applications.
• Portable Media Players: Suitable for video playback and multimedia applications.

3. Automotive & Transportation

• Infotainment Displays: Integrated into car dashboards for navigation and media playback.
• Rear Seat Entertainment Systems: Used in luxury vehicles for passenger entertainment.
• Digital Instrument Clusters: Provides vehicle data visualization.

4. Medical & Healthcare Devices

• Portable Ultrasound & X-Ray Displays: Used for medical imaging.
• Patient Monitoring Systems: Displays heart rate, oxygen levels, and other vital stats.
• Surgical Displays: Provides high-resolution imaging support for surgeries.

5. Smart Devices & IoT

• Smart Home Control Panels: Used in home automation systems.
• Kiosks & POS Systems: Display for self-service kiosks, ATMs, and digital payment terminals.
• Smart Mirrors & Interactive Displays: Featured in modern smart home setups.

6. Broadcast & Professional Use

• Video Editing & Content Creation: Used by professionals for editing and color grading.
• Teleprompters: High-brightness displays for studio use.
• Surveillance Monitors: Security camera monitoring applications.

7. Aerospace & Defense

• Avionics Displays: Used in cockpit control panels for aircraft.
• group Equipment: Tactical displays for defense applications.

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe.
Small sizes products: tray + carton
Big sizes: slot + carton.
We can design packages to meet customers' requirements.

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service.
For large quantity orders: we ship by buyer's cargo agent in China.
We can ship by air or sea transportation by our cargo agent.

Delivery Time: Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks

FAQ

1. Can you provide some samples?
-Yes, we can offer samples for you and you just pay some delivery fee.

2. How can I get samples?
- Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect

3. How can I place an order?
- If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We will talk about more detailed information of your order. Any question, pls do not hestiate to contact us.

4. Can you design the lcd in acccordance with our demand?
-Sure, we have professional team to provide ODM&OEM service and any requirements, pls do not hestiate to tell me.

5. What is your payment method?
- We support make payment via TT/West Union/Paypal,50%-100% deposit in advance and balance before shipping as order amount.
