256*128 Wide Temperature Graphic LCD Module Winstar 100% Replace Industrial Display

Customer Reviews
Royal Display, Perfect LCD Supplier, Fast response, thanks for cooperation.

—— Beata from Poland

Received the lcds today, no damage and test well, thanks.

—— Natalya Kryukova from Russia

Fast delivery and good quality, I am happy with Royal Display, I will order more later.

—— Meerimgul from Turkey

High quality screen, fast service.

—— Daniel Castelo from Switzerland

I'm Online Chat Now

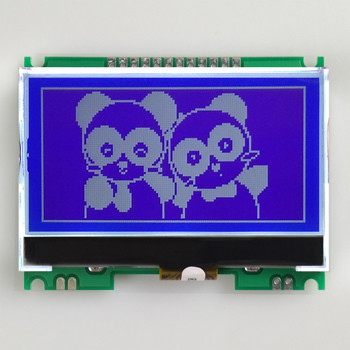

256*128 Wide Temperature Graphic LCD Module Winstar 100% Replace Industrial Display

256*128 Wide Temperature Graphic LCD Module Winstar 100% Replace Industrial Display
256*128 Wide Temperature Graphic LCD Module Winstar 100% Replace Industrial Display 256*128 Wide Temperature Graphic LCD Module Winstar 100% Replace Industrial Display

Large Image :  256*128 Wide Temperature Graphic LCD Module Winstar 100% Replace Industrial Display

Product Details:
Place of Origin: CHINA
Brand Name: Royal Display or ODM/OEM
Certification: SGS, ROHS
Model Number: WO256128A2
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: 4.99 USD EXW
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 15~25 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300K pcs/month
Detailed Product Description
Operating Temp: -20 To +70 Celsius Degree Storage Temp: -30 To +80 Celsius Degree

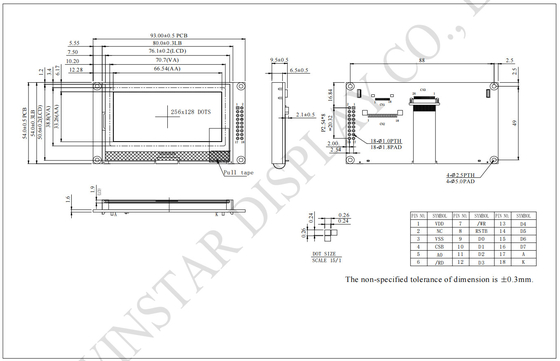

View Area: 70.7*38.8 Mm Outine Dimension: 93.0*54.0*9.5 Mm
Active Area: 66.54*33.26 Mm Drive Method: 1/128 Duty, 1/12 Bias
Drive IC: St75256 Or Equivalent DOT Size: 0.24*0.24 Mm
Highlight:

Industrial Graphic LCD Module

,

Wide Temperature Graphic LCD Module

,

Winstar 100% Replace Industrial Display

256*128 Wide Temperature Graphic LCD Module Winstar 100% Replace Industrial Display





Product Desctiption





Item Description
LCD Display FSTN
Polarizer Mode Transflective, Positive
Viewing Direction 6H 12H optional
Drive Method 1/128 duty, 1/12 bias
Logic Supply Voltage 3.3v
Operating Temp -20~+70ºC
Storage Temp -30~+80ºC
Connector FPC
Interface 8080

A 256*128 FSTN (Film Super-Twisted Nematic) LCD (Liquid Crystal Display) module is a type of graphic display that can show monochrome images and text. FSTN LCDs are known for their high contrast and wide viewing angles, making them suitable for various applications.
256*128 Wide Temperature Graphic LCD Module Winstar 100% Replace Industrial Display 0





Applications



A 256x128 LCD module, such as the Winstar WO256128A2 you mentioned earlier, can be used in various applications where a medium-sized graphical display is required. Here are a few common applications where a 256x128 LCD module can be utilized:

  1. Industrial Control Panels: These LCD modules are often used in industrial control panels for displaying various parameters, data, and graphics relevant to the industrial processes.

  2. Medical Devices: In medical devices like patient monitors, these displays can show vital signs, waveforms, and other relevant medical data.

  3. Test and Measurement Equipment: These LCD modules are suitable for displaying readings, graphs, and other data in test and measurement equipment.

  4. Consumer Electronics: In some consumer devices, such as audio equipment, security systems, or other home appliances, these displays can be used to show information or menus.

  5. Automotive Applications: These LCD modules can be found in automotive applications like car audio systems, dashboard displays, or other vehicle instrumentation.

  6. Smart Home Devices: In smart home devices like thermostats, energy monitors, or smart hubs, these displays can provide user interfaces for control and feedback.

  7. Communication Equipment: In networking devices, these displays can be used to show network status, configurations, or diagnostic information.

  8. Retail and Point-of-Sale Systems: These displays can be used in retail environments for showing product information, prices, or advertisements.

These are just a few examples of where a 256x128 LCD module can be applied. The specific use case would depend on the requirements of the project and the features of the LCD module itself.





Our Advantages



Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.

More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.

Our products have passed international quality certificates, including CE, FCC & RoHS. With high quality and competitive prices, as a result, our products are exported to Asia, Europe, North America, South America, Africa and the Middle East and are well received by consumers. Holding the philosophy of "innovation, efficient, strictness, responsibility", our company commits to provide professional services and guide our customers worldwide. For the fore-sales service, we have skilled engineers to answer all your questions and provide optimized solutions based on your project. For the after-sales service, we provide customized service as you required. We make efforts to meet customers' requirements and search for long-term cooperation. We will try our best to serve you and hope to become one of your friends and business partners. We are looking forward to working together with you and establish long term WIN-WIN business.





After Sale Service



1). Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2). Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3). Payment Terms: T/T, Western Union.

4). Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5). Service: Best after-sales service to ensure satisfaction from customers.

6). Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air

7). Warranty: Usually, product warranty for one year.

8). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
