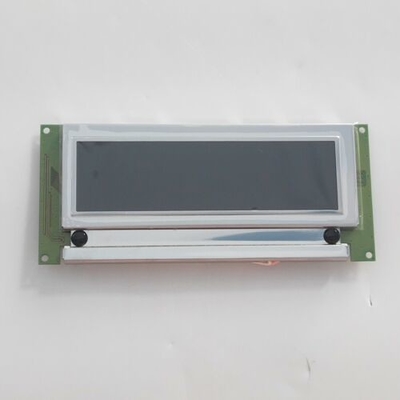

256*64 Graphic LCD Module STN Yellow Green 6H Positive Industrial Display

256*64 graphic LCD Module STN Yellow green 6H positive industrial display

Product Description

A 256x64 graphic LCD module refers to a type of display that has a resolution of 256 pixels in width and 64 pixels in height. It is commonly used in applications where graphical information needs to be displayed, such as in industrial control systems, instrumentation, and other electronic devices.

These modules typically utilize a monochrome display technology, where each pixel can be individually controlled to display various graphical elements. The display may use technologies like STN (Super Twisted Nematic), FSTN (Film-compensated Super Twisted Nematic), or other similar LCD technologies.

Graphic LCD modules often provide built-in controllers that simplify the interface with a microcontroller or other controlling device. They may use standard communication protocols such as SPI (Serial Peripheral Interface) or I2C (Inter-Integrated Circuit) for data transfer.

When using a 256x64 graphic LCD module, you would typically need to send commands and data to the display to control individual pixels and create the desired graphics or text. The specific commands and protocols would depend on the module's datasheet and controller used.

Product Applications

A 256x64 graphic LCD module can be used in various applications where graphical information needs to be displayed. Some common applications include:

1. Industrial Control Systems: These LCD modules are often used in industrial applications for displaying real-time data, status indicators, and control interfaces. They can be integrated into control panels, machinery, or monitoring systems.

2. Instrumentation: Graphic LCD modules find applications in various instruments such as oscilloscopes, multimeters, spectrum analyzers, and other measurement devices. They provide a visual representation of data, waveforms, or graphs.

3. Embedded Systems: These LCD modules are popular in embedded systems projects, where they can be used to create user interfaces, display sensor data, show menus, or provide visual feedback. They are commonly used in prototyping, robotics, and automation projects.

4. Consumer Electronics: Graphic LCD modules can be found in consumer electronic devices such as audio equipment, digital cameras, and small appliances. They can display information, settings, or graphic elements to enhance the user experience.

5. Medical Devices: LCD modules are used in medical devices for displaying vital signs, patient information, and diagnostic data. They are commonly found in patient monitors, blood pressure monitors, and medical imaging equipment.

6. Automotive Applications: These LCD modules can be integrated into automotive dashboards, instrument clusters, or infotainment systems. They display important information such as speed, fuel levels, navigation data, and entertainment interfaces.

7. Gaming Devices: Graphic LCD modules are used in handheld gaming consoles, portable gaming devices, and arcade machines. They provide the visual output for games, menus, and other interactive elements.

Our Service

1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.

2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.

3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.

4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5. Professional Customized Service: Professional team provide OEM&ODM service.

6. Competitive Price: Give you a direct factory price.

7. Better After-sales Service: Long for one year warranty.
