Product Details:
Payment & Shipping Terms:
|

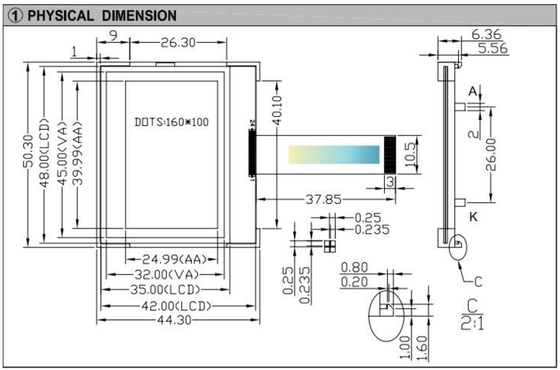

| Module Size: | 44.3*50.3*6.36 Mm | View Area: | 32*45 Mm |
|---|---|---|---|
| Dot Pitch: | 0.25*0.25 Mm | Dot Size: | 0.235*0.235 Mm |
| Control IC: | UC1608 | Active Area: | 24.99*39.99 Mm |
| High Light: | 160x100 Graphic LCD Module,Industrial Control Systems Graphic LCD Module |
||
160*100 graphic LCD Module 5.25v UC1608 FPC connector industrial display customizable
Product Description
A 160x100 graphic LCD refers to a type of liquid crystal display that has a resolution of 160 pixels in width and 100 pixels in height. This means that the display can accommodate up to 160 columns and 100 rows of graphical or textual information.
Graphic LCDs are commonly used in various electronic devices, including medical equipment, industrial control systems, consumer electronics, and more. They offer the ability to display images, icons, and custom graphical elements, making them versatile for different applications.
The display area of a 160x100 graphic LCD is typically measured in millimeters or inches. The physical size of the LCD can vary depending on the manufacturer and specific model. It is important to check the datasheet or product specifications for the exact dimensions of a particular display.
To interact with a 160x100 graphic LCD, you would typically use a microcontroller or other embedded system to send commands and data to the display. These commands would include instructions for drawing pixels, lines, shapes, and texts on the screen. The display may also support additional features such as backlight control, contrast adjustment, and touch input, depending on its capabilities.

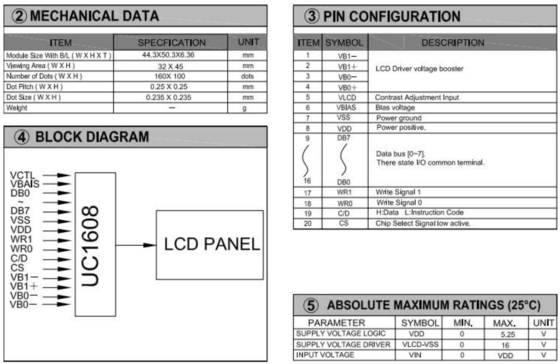

| ITEM | SPECIFICATION |
| Display Type | 160X100 dots |
| LCD Type | FSTN |
| Polarzier Mode | Transflective,Positive |
| Drive Method | TBC |
| Viewing Direction | 6H or 12H |
| LCD Driving Voltage | 5.25V |
| Controller & Driver | UC1608 |
| Connector | FPC |
| Backlight | White |
| Wide range of operating temperature | -20 to 70 ºC |
| Wide range of Storage temperature | -30 to 80 ºC |
Product Features
A 160x100 dots graphic LCD module offers several advantages for applications that require custom graphics and user interface elements.
*High Resolution: It provides a relatively high pixel density, allowing for the display of detailed graphics and images. This can enhance the visual appeal and clarity of the displayed content.
*Customization: A graphic LCD module allows for the individual control of each pixel, enabling the creation of custom graphics, icons, and user interface elements.
*Versatility: The ability to display custom graphics and images makes it suitable for a wide range of applications.
*User Interaction: The display of custom graphics and user interface elements allows for intuitive user interaction. It enables the presentation of buttons, menus, sliders, and other interactive elements, enhancing user experience and usability.
*Information Display: The high resolution enables the presentation of detailed information, such as graphs, charts, and data plots.
*Low Power Consumption: Graphic LCD modules generally consume less power compared to other display technologies like TFT-LCDs.
*Compact Size: This module is available in compact form factors, making it suitable for applications with limited space constraints.
*Cost-Effective: Graphic LCD modules are often more cost-effective compared to higher-resolution displays like TFT-LCDs.
Product Applications
It is a 160x100 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, and various instruments, such as evaluation instruments, power system equipment, laboratory instruments, medical instruments, fire protection systems, temperature and humidity transmissions, pressure transmissions, analytical instruments, environmental protection testing instruments, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.
Our Service
1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Professional Customized Service: Professional team provide OEM&ODM service.
6. Competitive Price: Give you a direct factory price.
7. Better After-sales Service: Long for one year warranty.
