Product Details:
Payment & Shipping Terms:
|
| Module Size: | 59*41*2.1mm | View Area: | 54*29mm |
|---|---|---|---|
| Dot Pitch: | 0.41*0.37mm | Dot Size: | 0.38*0.34mm |
| Driver IC: | ST7565R | Operating Temp: | -20 To +70 Celsius Degree |
| High Light: | ST7565R graphic LCD Module,FPC Gray graphic LCD Module,FSTN Transflective graphic LCD Module |
||

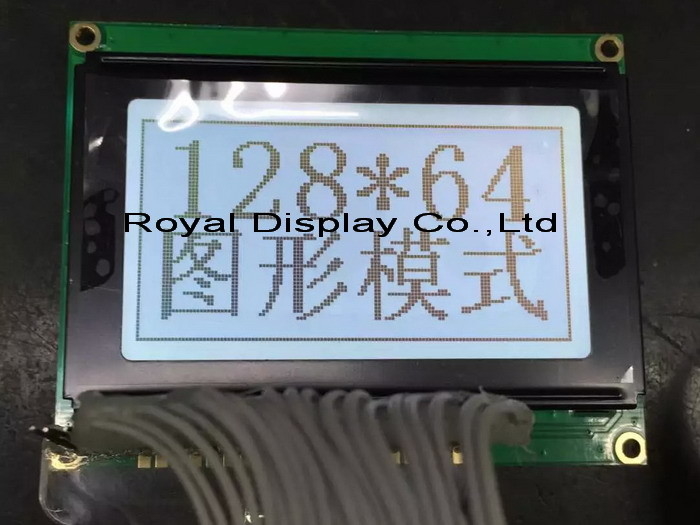

128*64 graphic LCD Module FPC Gray FSTN Transflective wide temperature 12H ST7565R with back light industrial display
Product Description
A graphic LCD (Liquid Crystal Display) is a type of display that can display graphical content and custom patterns. Unlike character-based LCDs that are limited to displaying predefined characters, a graphic LCD allows you to control individual pixels, enabling you to create custom shapes, images, and graphical user interfaces. A 128x64 graphic LCD module refers to a display panel with a resolution of 128 pixels in width and 64 pixels in height. It is commonly used for displaying graphical content, icons, and text in various electronic devices. Here are some data about a 128 x 64 dots graphic LCD.
| Item | Specification |
| Product Name | 128x64 dots Graphic LCD Module |
| Model No. | RYG12864O |
| Dot Format | 128x64 |
| LCD Display Mode | FASTN Monochrome, gray |
| View Angel | 12H |
| Driving Method | TBC |
| Backlight | WHITE |
| Drive IC | ST7565R |
| Operation Voltage(V) | 3.5v max |
| LCM technological conditions | RoHS |
| Operating Temp | -20º C~+70ºC |
| Storage Temp | -30º C~+80ºC |
Product Features
A 128x64 dots graphic LCD module offers several advantages for applications that require custom graphics and user interface elements.
*High Resolution: It provides a relatively high pixel density, allowing for the display of detailed graphics and images. This can enhance the visual appeal and clarity of the displayed content.
*Customization: A graphic LCD module allows for the individual control of each pixel, enabling the creation of custom graphics, icons, and user interface elements.
*Versatility: The ability to display custom graphics and images makes a 128x64 graphic LCD module suitable for a wide range of applications.
*User Interaction: The display of custom graphics and user interface elements allows for intuitive user interaction. It enables the presentation of buttons, menus, sliders, and other interactive elements, enhancing user experience and usability.
*Information Display: The high resolution enables the presentation of detailed information, such as graphs, charts, and data plots.
*Low Power Consumption: Graphic LCD modules generally consume less power compared to other display technologies like TFT-LCDs.
*Compact Size: This module is available in compact form factors, making it suitable for applications with limited space constraints.
*Cost-Effective: Graphic LCD modules are often more cost-effective compared to higher-resolution displays like TFT-LCDs.
Our Service
1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
6. Competitive Price: Give you a direct factory price.
7. Better After-sales Service: Long for one year warranty.
