| Module Dimension: | 58.0*55.0*7.5 Mm | View Area: | 55*18.0 Mm |
|---|---|---|---|
| Dot Pitch: | 0.40*0.50 Mm | Dot Size: | 0.36*0.36 Mm |
| LCD Driver: | ST7921 | Driving Method: | 1/32 Duty, 1/6 Bias |
| High Light: | monochrome color graphic LCD Module,ST7921 graphic LCD Module,128*32 graphic LCD Module |
||

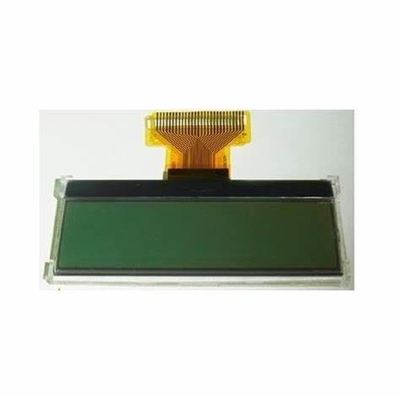

128*32 graphic LCD Module with ST7921 backlight 3.3V monochrome color customizable industrial display
Product Description
A graphic LCD (Liquid Crystal Display) is a type of display that can display graphical content and custom patterns. Unlike character-based LCDs that are limited to displaying predefined characters, a graphic LCD allows you to control individual pixels, enabling you to create custom shapes, images, and graphical user interfaces. FSTN is a display mode that stands for Film compensated Super Twisted Nematic. It is a type of LCD (Liquid Crystal Display) technology that provides improved contrast and viewing angles compared to standard TN (Twisted Nematic) displays. FSTN displays are known for their high-quality grayscale rendering and better readability in different lighting conditions.A display with 128x32 pixels in FSTN (Film compensated Super Twisted Nematic) mode refers to a specific type of graphical display that can show 128 columns and 32 rows of pixels. Here are some data about our 128x32 dots graphic products.

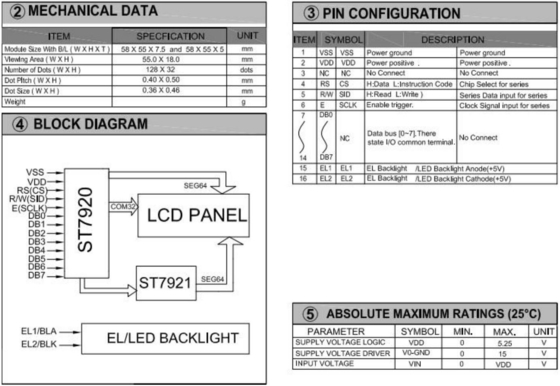

| Item | Specification |
| Product Name | 128x32dots Graphic LCD Module |
| Model No. | RYG12832D |
| Dot Format | 128x32 |

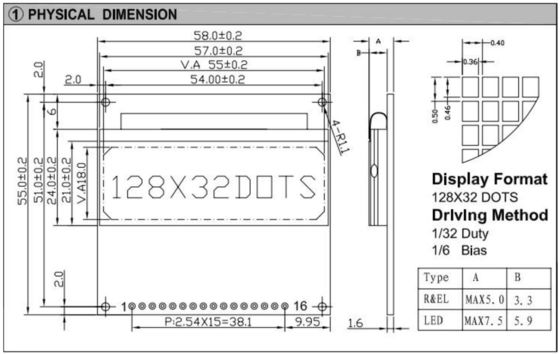

| Outline Size(mm) | 58.0*55.0*7.5 |
| Viewing Area(mm) | 55*18.0 |
| Viewing Angle | 12H and 6H |
| Dot Size(mm) | 0.36*0.36 |
| Dot Pitch(mm) | 0.40*0.50 |
| Driver IC | ST7921 |
| LCD Type | FSTN/Y-G, Transmissive, Positive,1/32Duty,1/6Bias |
| LCM technological conditions | RoHS |
| Operating Temp | -30º C~+70ºC |
| Storage Temp | -40º C~+85ºC |
Product Features
A 128x32 dots graphic LCD module offers several advantages for applications that require custom graphics and user interface elements.
1. Support display capacity: 128x 32 Pixels dots with FSTN mode.
2. On-chip Display Data RAM , Capacity: 128×32 = 4096 bits.
3. Serial interfaces are supported.
4. Abundant command functions Display data.
5. Static drive circuit equipped internally for indicators.
6. Low-power liquid crystal display power supply circuit equipped internally.
7. High-accuracy voltage adjustment circuit.
8. CR oscillator circuit equipped internally.
9. Extremely low power consumption.
Product Applications
It is a 128x32 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards.
This module is widely used in various instruments, smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.
Our Service
*Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
*Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
*Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
*Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
*Professional Customized Service: Professional team provide OEM&ODM service.
*Competitive Price: Give you a direct factory price.
*Better After-sales Service: Long for one year warranty.
