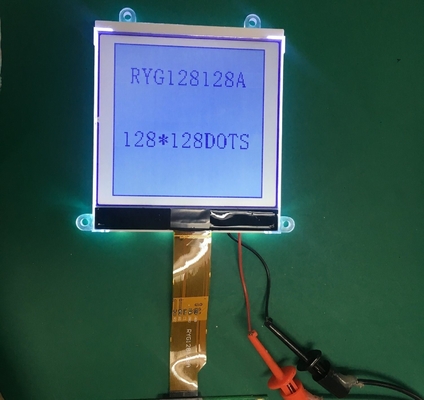

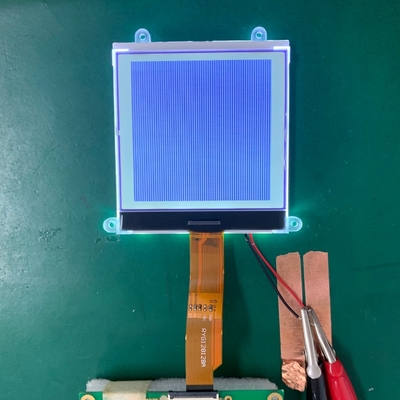

128*128 Graphic LCD Module STN Gray 6H With ST7541 Wide Temperature FPC Connector
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Royal Display |
| Certification: | SGS, ROHS |
| Model Number: | RYG128128A |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | 4.99 USD EXW |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| Delivery Time: | 15~25 working day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300K pcs/month |
|
Detail Information |
|||
| Polarizer Mode: | Transflective Positive | Driving Method: | 1/128 Duty, 1/12 Bias |
|---|---|---|---|
| Operating Temp: | -20 To +70 Celsius Degree | Driver IC: | ST7541 |

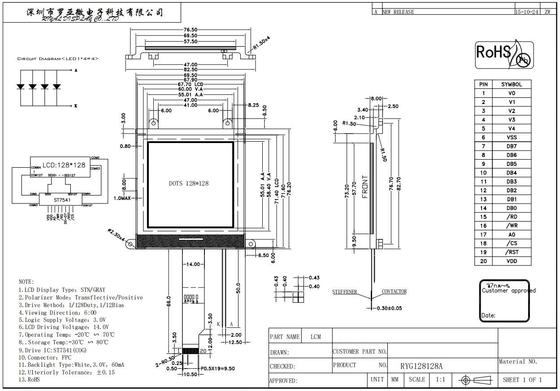

| Module Dimension: | 76.50*76.20*8 Mm | View Area: | 60.00*58.40 Mm |
| Highlight: | 128*128 graphic LCD Module,STN Gray graphic LCD Module,ST7541 graphic LCD Module |
||
Product Description
128*128 graphic LCD Module STN Gray 6H with ST7541 wide temperature FPC connector industrial display
Product Description
Resolution: The display has a resolution of 128 pixels in width and 128 pixels in height, resulting in a total of 16,384 pixels.
STN Technology: STN technology is a type of LCD technology that enhances contrast and viewing angles compared to standard twisted nematic (TN) LCDs. It achieves this by using a more pronounced twisting of liquid crystal molecules.
Monochrome Display: STN LCDs typically display information in a single color, often black and white or grayscale. The actual color depends on the specific implementation and can vary from blue, green, yellow, or white.
Passive Matrix: The 128x128 STN LCD is typically driven by a passive matrix, which means it uses a simpler and more cost-effective driving scheme compared to active matrix displays (such as TFT-LCDs).
Application: 128x128 STN LCDs are commonly used in various applications, including industrial equipment, measuring instruments, medical devices, consumer electronics, and other devices that require a simple monochrome display.
| Item | Description |
| LCD Display | STN |
| Polarizer Mode | Transflective, Positive |
| Viewing Direction | 6:00 |
| Drive Method | 1/128 duty, 1/12 bias |
| Logic Supply Voltage | 3.0v |
| Operating Temp | -20~+70ºC |
| Storage Temp | -30~+80ºC |
| Connector | COG+FPC |
| LCD driving vlotage | 14.0v |
Our Advantages
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on. With the capability of 300K different kinds of LCM/LCD per month.
Our products have passed international quality certificates, including CE, FCC & RoHS. With high quality and competitive prices, as a result, our products are exported to Asia, Europe, North America, South America, Africa and the Middle East and are well received by consumers. Holding the philosophy of "innovation, efficient, strictness, responsibility", our company commits to provide professional services and guide our customers worldwide. For the fore-sales service, we have skilled engineers to answer all your questions and provide optimized solutions based on your project. For the after-sales service, we provide customized service as you required. We make efforts to meet customers' requirements and search for long-term cooperation. We will try our best to serve you and hope to become one of your friends and business partners. We are looking forward to working together with you and establish long term WIN-WIN business.
Our Service
1). Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2). Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3). Payment Terms: T/T, Western Union.
4). Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5). Service: Best after-sales service to ensure satisfaction from customers.
6). Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air
7). Warranty: Usually, product warranty for one year.
8). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask yo
