Product Details:
Payment & Shipping Terms:
|

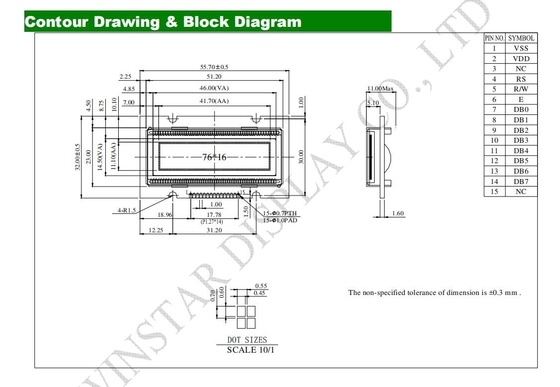

| Module Dimension: | 55.7 X 32.0 X 11.0(MAX) Mm | View Area: | 46.0 X 14.5 Mm |
|---|---|---|---|
| Active Area: | 41.7 X 11.1 Mm | Dot Size: | 0.45 X 0.60 Mm |
| Dot Pitch: | 0.45 X 0.60 Mm | Duty: | 1/16 |
| Size: | 1.7 Inch | ||
| High Light: | 76*16 dots Graphic OLED Module,1.7'' Monochrome OLED Module,WEG007616A |
||
1.7'' 76*16 dots Graphic OLED Module Monochrome Winstar WEG007616A wide temperature display
Product Description
WEG007616A is a monochrome OLED display module manufactured by Winstar Display Co., Ltd. This module features a 128x64 pixel monochrome OLED display, providing high contrast and clear image quality with a single color.
Here are some key features and specifications of the Winstar WEG007616A OLED module:
Display Resolution: The module has a resolution of 128x64 pixels, meaning it can display graphics and text with a reasonable level of detail.
Monochrome OLED Display: The WEG007616A module utilizes monochrome OLED technology, emitting light in a single color (typically white, yellow, or blue). Monochrome OLED displays offer high contrast, deep blacks, and excellent visibility.
Display Size: The exact display size of the WEG007616A module is not available in the provided information. However, based on the resolution, it is likely to have a small to medium-sized display, suitable for various applications.
Interface: The module interfaces with an external microcontroller or system using standard communication interfaces like SPI (Serial Peripheral Interface) or I2C (Inter-Integrated Circuit). This enables easy integration and control of the display module.
Wide Viewing Angle: OLED technology provides a wide viewing angle, ensuring good visibility from different orientations. This makes the WEG007616A module suitable for applications where the display may be viewed from various angles.
Low Power Consumption: OLED displays are known for their low power consumption compared to other display technologies. This makes the WEG007616A module energy-efficient, which is beneficial for battery-powered devices or applications with power constraints.
Operating Temperature Range: The module is designed to operate reliably across a specific temperature range, typically from -40°C to +80°C or similar. This ensures its usability in various environments and applications.
| ITEM | SPECIFICATION |
| Dot matrix | 76*16 dots |
| LCD Type | OLED. monochrome |
| Size | 1.7 inch |
| OLED interface | 6800, option 8080, SPI |
| View Area | 46.0 x 14.5 mm |
| Logic voltage | 5.3V |
| Duty | 1/16 |
| Wide range of operating temperature | -40 to +80 ºC |
| Wide range of Storage temperature | -40 to +85 ºC |
Applications
The Winstar WEG007616A monochrome OLED module can be used in a wide range of applications where a compact, high-contrast display is required. It is commonly found in devices such as portable electronics, industrial control panels, medical instruments, measurement devices, and more.
Our Service
1. Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
4. Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Professional Customized Service: Professional team provide OEM&ODM service.
6. Competitive Price: Give you a direct factory price.
7. Better After-sales Service: Long for one year warranty.
