3.55'' Winstar OLED Panel Weo025664D-CTP 256*64 Touch Wide Temperature

3.55'' Winstar OLED Panel Weo025664D-CTP 256*64 Touch Wide Temperature

Product Description

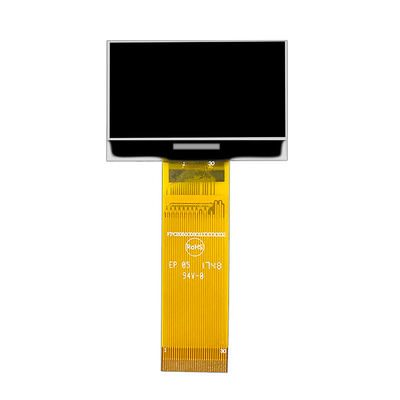

The WEO025664D-CTP is an OLED (Organic Light Emitting Diode) module manufactured by Winstar Display Co., Ltd. It is a compact and versatile display module that combines a 256x64 pixel OLED panel with a capacitive touch panel (CTP) for user interaction.

Here are some key features of the WEO025664D-CTP OLED module:

1. Display: The module features a 256x64 pixel OLED display, which provides high contrast and bright images. OLED technology enables each pixel to emit its own light, resulting in deep blacks and vibrant colors. The display size is approximately 2.66 inches diagonally.

2. Capacitive Touch Panel: The module also includes a capacitive touch panel, allowing users to interact with the display through touch gestures. Capacitive touch technology offers a more responsive and accurate touch experience compared to resistive touch panels.

3. I2C Interface: The WEO025664D-CTP module communicates with an external microcontroller or system using an I2C (Inter-Integrated Circuit) interface. This makes it easy to integrate the module into various applications and control the display and touch functions.

4. Wide Viewing Angle: The OLED display has a wide viewing angle, ensuring good visibility from different orientations. This makes the module suitable for applications where multiple users may view the display from various angles.

5. Low Power Consumption: OLED technology is known for its low power consumption compared to other display technologies like LCD. This makes the WEO025664D-CTP module energy-efficient, which is beneficial for portable and battery-powered devices.

6. Wide Operating Temperature Range: The module is designed to operate reliably across a wide temperature range, typically from -40°C to +80°C. This makes it suitable for various industrial and outdoor applications where temperature extremes may be encountered.

ITEM	SPECIFICATION
Pixels	256*64
LCD Type	OLED
Active Area	3.55 inch
OLED interface	6800, 8080, SPI
Surface	Normal Glare
OLED IC	SSD1322
CTP interface	I2C
Wide range of operating temperature	-20 to +70 ºC
Wide range of Storage temperature	-30 to +80 ºC

Applications

The WEO025664D-CTP OLED module can be used in a wide range of applications such as portable devices, wearable devices, industrial control panels, medical devices, instrumentation, and more. It offers a combination of high-quality display and touch functionality in a compact form factor.
