Product Details:
Payment & Shipping Terms:
|
| Viewing Area: | 65.50*38.00mm | Display Type: | STN/FSTN |
|---|---|---|---|
| Backlight: | White | Drive IC: | ST7567 |
| Operating Temp: | -20~+70℃ | Strorage Temp: | -30~+80℃ |
| Color: | Monochrome | Customized: | Could Be |
| High Light: | 128X64 STN LCD Module,Green STN LCD Module |
||

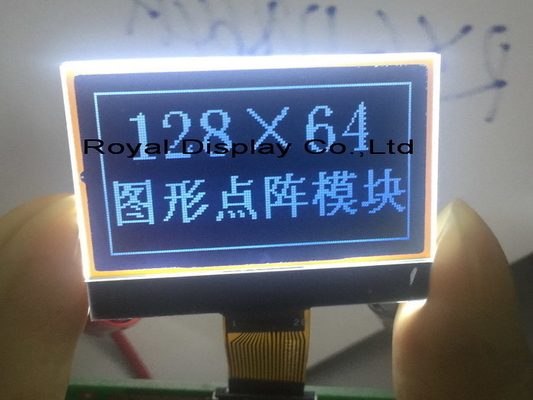

Description of 128*64 STN LCD Module RYP12864A
| Item | Description |
| Product Name | Transflective Positive 128*64 dots LCD Module |
| LCD type | STN |
| Model No. | RYG12864A |
| Dot Format | 128*64 dots |

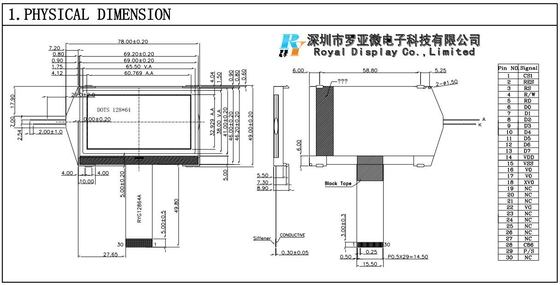

| Module Size | 78.0X49.0mm |
| Viewing Area | 65.50X38.00mm |
| Viewing Angle | 6 O' clock |
| Driver IC | ST7567 |
| Operating Temp | -20º C~+70ºC |
| Storage Temp | -30º C~+80º C |
Details of 128*64 STN LCD Module RYP12864A
Resolution: The display has a resolution of 128 pixels in width and 64 pixels in height, resulting in a total of 8,192 pixels.
STN Technology: STN technology is a type of LCD technology that enhances contrast and viewing angles compared to standard twisted nematic (TN) LCDs. It achieves this by using a more pronounced twisting of liquid crystal molecules.
Monochrome Display: STN LCDs typically display information in a single color, often black and white or grayscale. The actual color depends on the specific implementation and can vary from blue, green, yellow, or white.
Passive Matrix: The 128x64 STN LCD is typically driven by a passive matrix, which means it uses a simpler and more cost-effective driving scheme compared to active matrix displays (such as TFT-LCDs).
Application: 128x64 STN LCDs are commonly used in various applications, including industrial equipment, measuring instruments, medical devices, consumer electronics, and other devices that require a simple monochrome display.
Shipping Details:
For small quantity orders: we ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service, it is safe and fast.
For large quantity orders: we ship by buyer's cargo agent in China,
we can also ship by air or sea transportation by our cargo agent.
Delivery Details:
Ready-made Sample: within 1 week
Custom Sample: 1~2 weeks
Mass production: 3-4 weeks
Our Service Advantages
1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.
2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3. Payment Terms: T/T, Western Union.
4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5. Service: Best after-sales service to ensure satisfaction from customers.
6. Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air
7. Warranty: Usually, product warranty for one year.
8. Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
Special Customized
Royal Display Co., Ltd has been specializing in LCD business for more than 10 years, products range LCD Display, LCD Screen, LCD Module, Character LCD, LED backlight display, TFT display, Graphic LCD, 7 segment LED Display.
More than 90% of our products is specially customer designed to be used in Video and Audio system, financial, medical, industry equipment, testing devices, Electronic meters, facsimiles, many kinds of terminal equipment and so on.
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!
