Product Details:
Payment & Shipping Terms:
|
| Dot: | 192X64 Dots | Display Type: | FSTN, Transflective/Positive,1/64duty,1/10bias |
|---|---|---|---|
| Outline Size: | 134.2(L)X62.5(W)X6.0(T) Mm | View Area: | 128.0X48.3mm |
| Display Area: | 121.87X40.59 Mm | Dots Size: | 0.585X0.585 Mm |
| High Light: | 192X64 Dots Graphic LCD Display Module,Positive Graphic LCD Display Module |
||

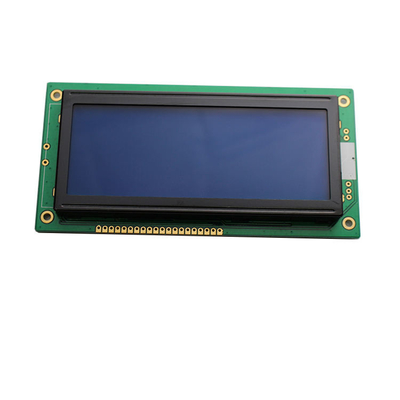

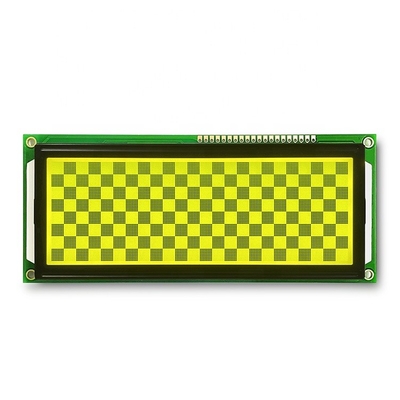

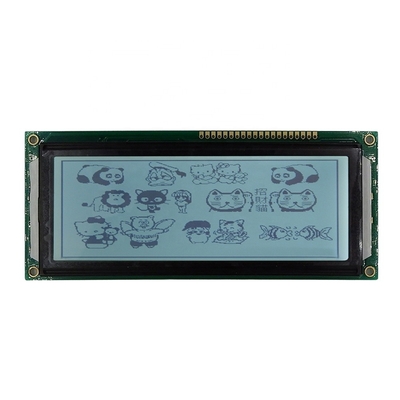

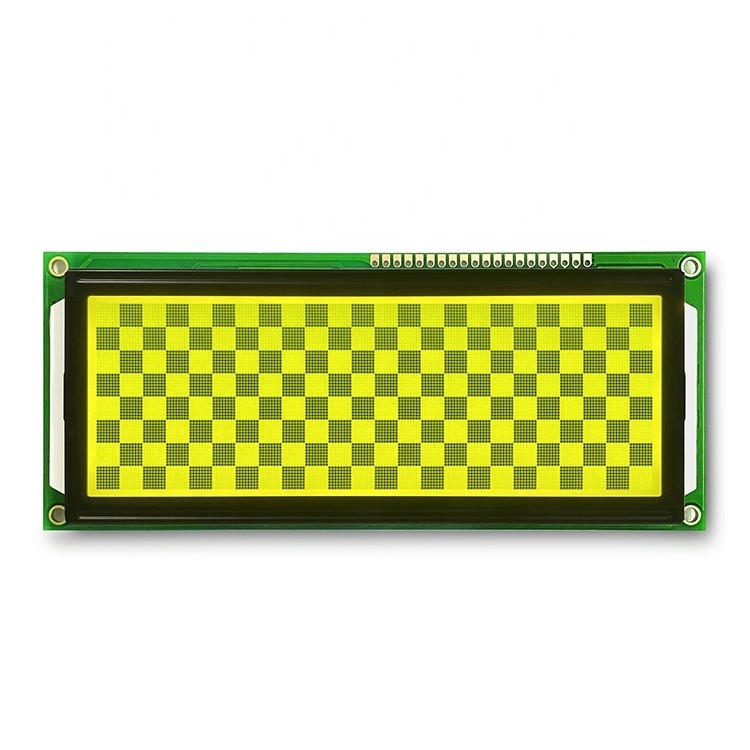

A graphic LCD (Liquid Crystal Display) is a type of display that can display graphical content and custom patterns.It has a standardized array of internal components. The most common type is a graphical dot matrix LCD screen module. The dot matrix LCD screen is composed of many display points, each with different number of points. The 192x64 dot matrix LCD screen has a horizontal number of 192 points and a vertical number of 64 points, totaling 192x64 points. By manipulating these points, we express the graphics or text we want to present in our field of vision.
The Datasheet of 160x80 Dots Graphic LCD Display Module
| ITEM | SPECIFICATION |
| Display Type | 192×64 dots |
| LCD Type | FSTN, Transflective/Positive,1/64Duty,1/10Bias |
| Outline Size | 134.2(L)×62.5(W)×6.0(T)mm |
| View Area | 128.0×48.3 mm |
| Viewing Direction | 12 O'clock |
| Display Area | 121.87×40.59 mm |
| Dots Size | 0.585×0.585 mm |
| Dots Pitch | 0.635×0.635 mm |
| Controller & Driver | UC1698U (COG) |
| Interface Mode | 6800, 8080; SPI 4-Wire, 3-Wire |
| VDD&VOP(Type) | 3.3 V & 15.0 V |
| Backlight Color | White, 5V, 150mA |
| Wide range of operating temperature | -30 to 70 |
| Wide range of Storage temperature | -30 to 80 |
1. Strong structure: the backlight of the LCD module has a retaining wall, welded FPC (socket FPC optional)
2. IC has powerful functions and good stability
3. Low display power consumption
4. Simple interface and convenient command operation
5. Operating temperature: -20°C -70°C
6. Storage temperature: -30°C -80°C
192x64 dot matrix graphic LCD screens are widely used in various electronic devices, such as digital multimeters, portable measuring instruments, electronic game consoles, mini TVs, etc. They can display simple graphics, numbers, symbols and text and provide basic information display functions. 192x64 dot matrix graphic LCD screen can be used in various instruments and meters, such as laboratory instruments, measuring equipment, industrial instruments, etc. They can also display measurement results, curve graphs, alarm information, etc., providing intuitive data display and monitoring functions. They are more suitable for displaying basic information such as simple graphics, text, and symbols, and can provide sufficient display capabilities in some scenarios.
*Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
*Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
*Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
*Fast Reply: Our sales will reply faster within 24 hours.
*Professional Customized Service: Professional team provide OEM&ODM service.
*Competitive Price: Give you a direct factory price.
*Better After-sales Service: Long for one year warranty.
Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Can you customize the product? How can I get the samples?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.
Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling &samples → Samples finished → Delivery via freight or sea collect.
Q: Can the LCD module be Export directly?
A: The products are through the relevant certification, it can be exported.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
