Product Details:
Payment & Shipping Terms:
|
| LCD Type: | Graphic | Dot: | 128X128 |
|---|---|---|---|
| Model Name: | LCM12864L | IC: | Ks0107 Or Equivalent |
| Display Mode: | Stn | Driving Method: | 1/64duty , 1/9bias |
| High Light: | 128X64 Dots Graphic LCD Module,6 O'clock Graphic LCD Module |
||

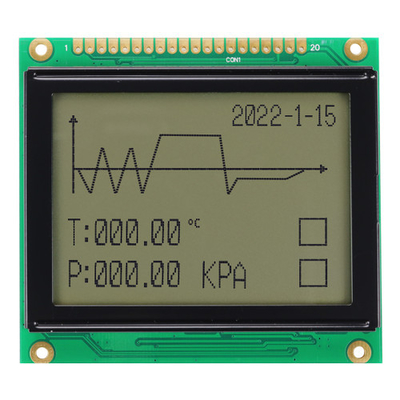

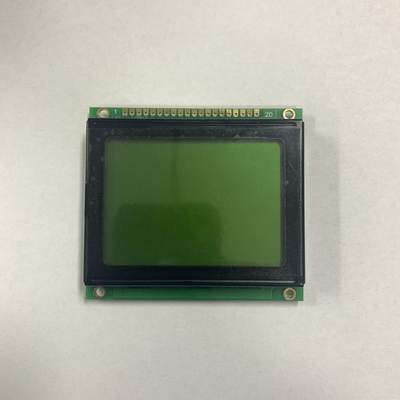

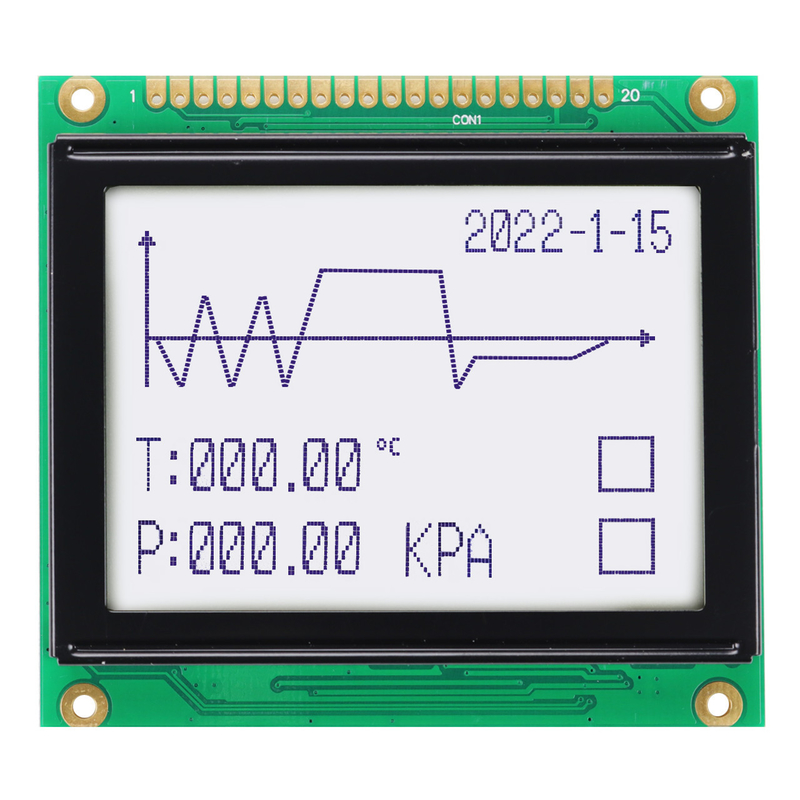

A graphic LCD (Liquid Crystal Display) is a type of display that can display graphical content and custom patterns. Unlike character-based LCDs that are limited to displaying predefined characters, a graphic LCD allows you to control individual pixels, enabling you to create custom shapes, images, and graphical user interfaces. A 128x64 graphic LCD module refers to a display panel with a resolution of 128 pixels in width and 64 pixels in height. It is commonly used for displaying graphical content, icons, and text in various electronic devices. Here are some data about a 128 x 64 dots graphic LCD.
The Datasheet of 128x64 Dots Graphic LCD Display Module
| Item | Specification |
| Product Name | 128x64 dots Graphic LCD Module |
| Model No. | LCM12864-18-B |
| Dot Format | 128x64 |
| LCD Display Mode | STN/BLUE/FSTN,Transmissive,Negative |
| View Angel | 6:00 |
| Driving Method | 1/65Duty,1/9Bias,9.0V |
| Backlight | White SIDE Light |
| Drive IC | 0107,0108 |
| Outline Dimension | 75(L) * 55(W) * 12(T) |
| Viewing Area | 60(L) * 32.4( W) |
| Dot size | 0.39(W) x 0.39(H)mm |
| Dot pitch | 0.43(W) x0.43(H)mm |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
1. Strong structure: the backlight of the LCD module has a retaining wall, welded FPC (socket FPC optional)
2. IC has powerful functions and good stability
3. Low display power consumption
4. Simple interface and convenient command operation
5. Operating temperature: -20°C -70°C
6. Storage temperature: -30°C -80°C
128x64 dot matrix graphic LCD screens are widely used in various electronic devices, such as digital multimeters, portable measuring instruments, electronic game consoles, mini TVs, etc. They can display simple graphics, numbers, symbols and text and provide basic information display functions. 128x64 dot matrix graphic LCD screen can be used in various instruments and meters, such as laboratory instruments, measuring equipment, industrial instruments, etc. They can also display measurement results, curve graphs, alarm information, etc., providing intuitive data display and monitoring functions. They are more suitable for displaying basic information such as simple graphics, text, and symbols, and can provide sufficient display capabilities in some scenarios.
*Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
*Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
*Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
*Fast Reply: Our sales will reply faster within 24 hours.
*Professional Customized Service: Professional team provide OEM&ODM service.
*Competitive Price: Give you a direct factory price.
*Better After-sales Service: Long for one year warranty.
Q1: Do you offer samples?
-Yes, We offer free samples for you, and you just need to pay some shipping fee.
Q2: Do you provide customized services?
-Yes, we have a professtional team to provide ODM&OEM service. And pls give us more specific information and your requirments about your applications.
Q3: What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
Q4: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system. We have professional team and advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment.
Q5: Is there any warranty?
A: Yes, we offer 12 months warranty for our products.
