Product Details:
Payment & Shipping Terms:
|
| DOT Matrix: | 128X64 Dots | Size: | 2.23inch |
|---|---|---|---|
| Display: | OLED(White) | Font Color: | Yellow/White/Green |
| Drive IC: | SSD1305 | Requirements On Environmental Protection: | RoHS |
| High Light: | 2.23'' OLED LCD Display,8 Bit Parallel OLED LCD Display |
||

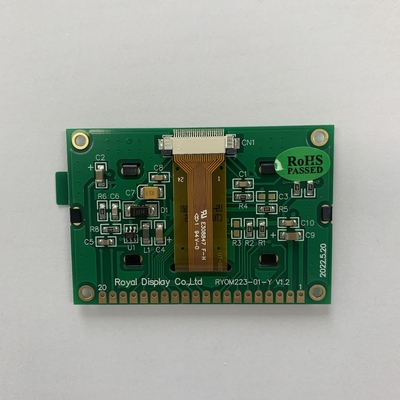

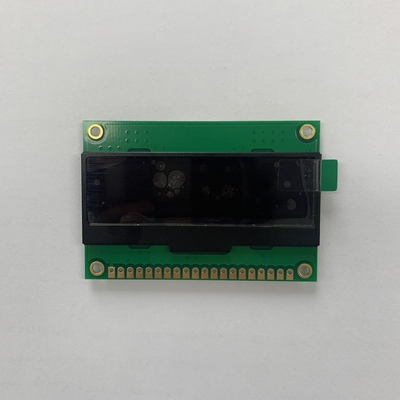

8 Bit Parallel 2.23'' OLED LCD Display 128x32 Dots Yellow/White/Green Font
Product Describtion
LED (Organic Light-Emitting Diode), also known as organic laser display and organic light-emitting semiconductor (Organic Electroluminescence Display, OLED). OLED is a current-type organic light-emitting device that emits light through the injection and recombination of carriers. The luminous intensity is proportional to the injected current. Under the action of the electric field in OLED, the holes generated by the anode and the electrons generated by the cathode will move, inject into the hole transport layer and electron transport layer respectively, and migrate to the light-emitting layer. When the two meet in the light-emitting layer, they generate energy excitons, which excite the light-emitting molecules and ultimately produce visible light.
The table contains some data of 2.23'' OLED Display
| ITEM | SPECIFICATION |
| Display Color | Y&B |
| Dot Matrix | 128x64 |
| MODULE SIZE | 26.7(W)x19.26(H)x1.227(D) |
| VIEWING AREA | 23.74 (W) x 13.2(H) |
| ACTIVE AREA | 21.74(W) x11.2 (H) |
| DOT SIZE | 0.15(W) x0.15(H) |
| DOT PITCH | 0.17(W) x0.17 (H) |
| Drive IC | SSD1306BZ |
| Viewing Angle | 160° |
| Aperture rate | 78% |
| Interface | 6800/8080 interface, 4 wire serial interface, I2C |
| ASSY.TYPE | COG |
| WEIGHT | TBD |
| Wide range of operating temperature | -30 to 70 |
| Wide range of Storage temperature | -40 to 85 |
The drawing of 2.23'' OLED Display
Product Features
OLED is an advanced display technology. Unlike traditional LCD screens, it does not require a backlight, but each pixel can emit light on its own. This self-luminous property gives OLED screens many advantages and a wide range of application scenarios.
1. High contrast.
2. Wide viewing angle
3. Thin and lightweight.
4. Energy saving and environmental protection
5. High refresh rate.
6. Display transparency
7. Long life time.
Product Applications
1. Industrial: Measuring & Meter, OA Equipment, POS & Server, Card Reader, Door Security, USB Key, Banking Device, Cryptocurrency, Hardware Wallet...
2. PC Peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen...
3. Communication: Mobile Phone, DECT Phone, Bluetooth Device, Router, Set-Top Box...
4. Automotive: Head Up Display, Car Audio, Speed Detector, ETC, Timer, Climate Control, Dashboard...
5. Medical: Glucose Meter, Oximeter, Blood-Pressure Meter, Thermometer, Beauty & Cosmetic Equipment...
6.Consuming: loT, Wearable Device, Remote Controller, Digital Camera, Game Machine, E-Cigarette, Audio Video Equipment...
Customized Service
We can provide different customized services to meet your requirements:
1. LCD customized
2. FPC interface customized
3. Outdimension customized
4. Touch panel customized
5. Optical bonding optional
6. Brightness customized
7. Driver board customized
8. Serial control board customized
FAQ
1.What's the MOQ of your product?
-Different MOQ requirements for bulk order.
2. How do you package the product?
-For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
3. How to deal with it if the goods are damaged when arrive?
-Please don't hesitate to contact me immediately, I will verify the damage and contact logistics soon to solve it for you ASAP.
4. Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.
5. Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
6. Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
