Product Details:
Payment & Shipping Terms:
|
| LCD Type: | Graphic | Dot: | 128X128 |
|---|---|---|---|
| Model Name: | RYP128128A-GGTWWN-A | IC: | St7541(Cog) |
| Display Mode: | Stn(Gray), Positive, Transflective | IC Package: | Cog |

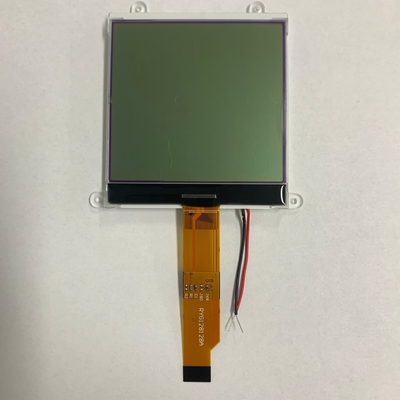

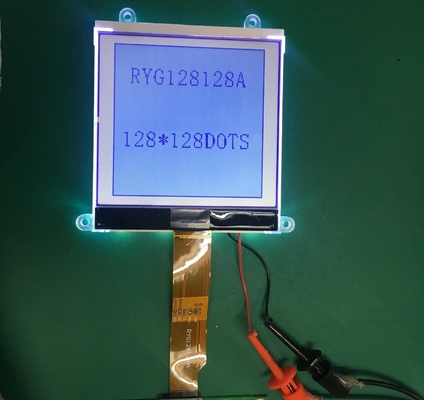

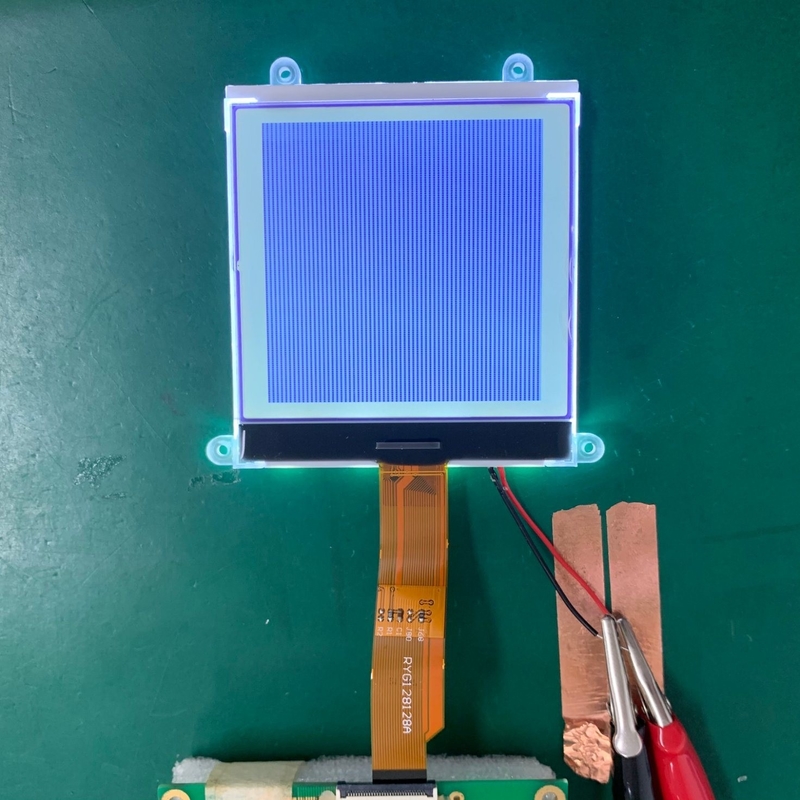

Graphic LCD is a liquid crystal display that can display graphics and text information. Compared with character screens, graphic LCD screens have higher display capabilities and flexibility and can display customized graphics, icons and complex images. Graphic LCD screens can display custom graphics and icons and are not limited to predefined character sets. It usually has a higher pixel resolution, making the display more fine and detailed. A 128x128 graphic LCD screen is a graphic LCD screen with 128 pixels in rows and 128 pixels in columns. This means the display can display 128x128 pixels simultaneously, for a total of 16,384 pixels.
The Datasheet of 128x64 Dots Graphic LCD Display Module
| ITEM | SPECIFICATION |
| Dot color | Sharp Blue |
| Dot Matrix | 240x64 |
| Outline Dimensions | 180(W) X75(H) X10.5(D) |
| Effective Viewing Area | 132.6(W)X39(H) |
| Display Format | 240 (W) X 64(H) |
| DOT Size | 0.48(W) X0.48(H) |
| DOT Spacing | 0.05 |
| Blackground Color | Grey |
| WEIGHT | 120 |
| Logic Supply Voltage | 6 |
| Wide range of operating temperature | -30 to 70 |
| Wide range of Storage temperature | -40 to 85 |
1. Strong structure: the backlight of the LCD module has a retaining wall, welded FPC (socket FPC optional)
2. IC has powerful functions and good stability
3. Low display power consumption
4. Simple interface and convenient command operation
5. Operating temperature: -20°C -70°C
6. Storage temperature: -30°C -80°C
It is a 128x64 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, and various instruments, such as evaluation instruments, power system equipment, laboratory instruments, medical instruments, fire protection systems, temperature and humidity transmissions, pressure transmissions, analytical instruments, environmental protection testing instruments, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.
*Best Quality Control : Every LCD tested with special instruments or main boards before delivery to ensure working.
*Correct Packaging Way: Packed in anti-static bags with foam box to ensure safety in transportation.
*Multiple Payment Methods: T/ T, Western Union,L/ C, PayPal.
*Reliable Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
*Professional Customized Service: Professional team provide OEM&ODM service.
*Competitive Price: Give you a direct factory price.
*Better After-sales Service: Long for one year warranty.
Q1: Do you offer samples?
-Yes, We offer free samples for you, and you just need to pay some shipping fee.
Q2: Do you provide customized services?
-Yes, we have a professtional team to provide ODM&OEM service. And pls give us more specific information and your requirments about your applications.
Q3: What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
Q4: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system. We have professional team and advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment.
Q5: Is there any warranty?
A: Yes, we offer 12 months warranty for our products.
