Product Details:
Payment & Shipping Terms:
|
| LCD Type: | Graphic | Dot: | 128x128 |
|---|---|---|---|
| Model Name: | RYP128128A-GGTWWN-A | Display Mode: | Stn(Gray), Positive, Transflective |
| IC: | St7541(Cog) | IC Package: | Cog |
A graphic LCD (Liquid Crystal Display) is a type of display that can display graphical content and custom patterns. Unlike character-based LCDs that are limited to displaying predefined characters, a graphic LCD allows you to control individual pixels, enabling you to create custom shapes, images, and graphical user interfaces. A 128 x 128 dots graphic LCD refers to a type of display that has a resolution of 128 pixels in both the horizontal and vertical directions, resulting in a total of 16,384 dots or pixels. Here is data about a 128 x 128 dots graphic LCD.

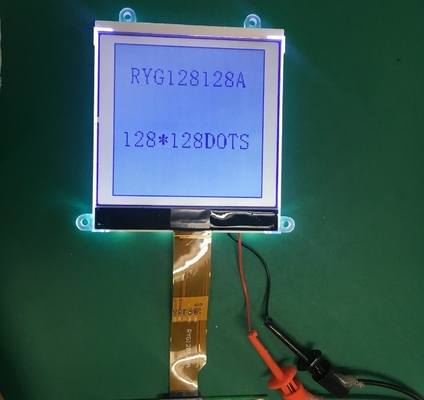

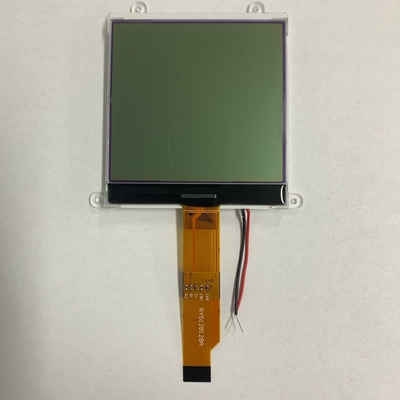

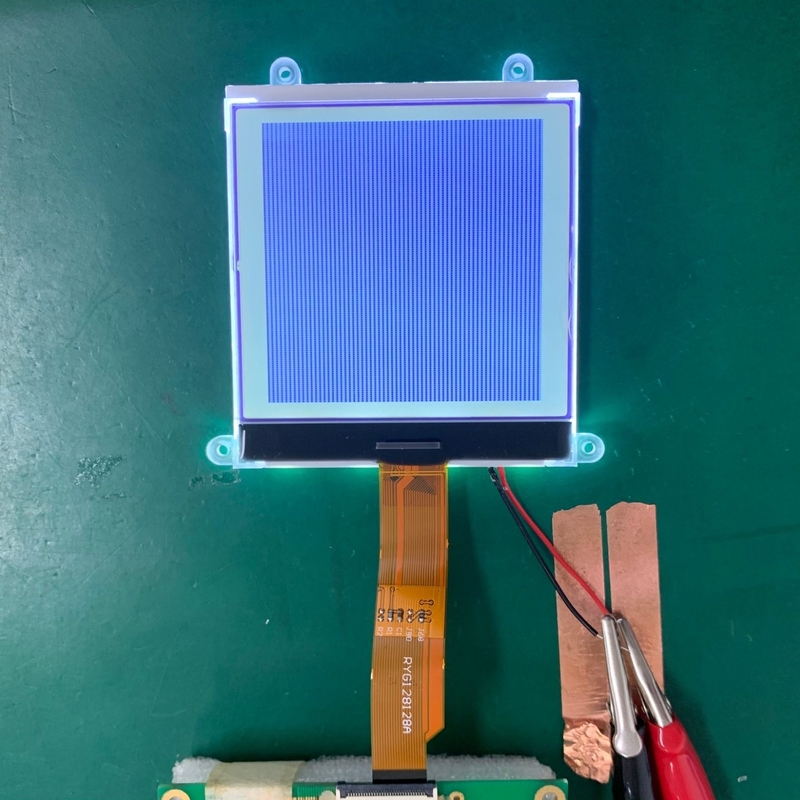

The Datasheet of 128x128 Dots Graphic LCD Display Module
| Item | Specification |
| Product Name | 128x128dots Graphic LCD Module |
| Model No. | RYG128128A-GGTWWN-A |
| Dot Format | 128x128 |
| Module Size(mm) | 67.7(W) x 138.3 (H) x 2.0MAX(T) |
| Viewing Area(mm) | 64.7(W) x 60.4MIN(H) |
| Effective Display Area | 55.01(W) x 55.01(H) |
| Viewing Angle | 6 O' clock |
| Dot Size(mm) | 0.4(W) X 0.4(H) |
| Dot Pitch(mm) | 0.43(W) X 0.43(H) |
| Driver IC | ST7541(cog) |
| Display mode | STN(GRAY), Positive, Transflective |
| Color | Display dot : Black Background: Gray |
| Interface Input Data | General interface |
| Driving Method | 1/128 Duty, 1/12 Bias |
| LCM technological conditions | RoHS |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
1. Strong structure: the backlight of the LCD module has a retaining wall, welded FPC (socket FPC optional)
2. IC has powerful functions and good stability
3. Low display power consumption
4. Simple interface and convenient command operation
5. Operating temperature: -20°C -70°C
6. Storage temperature: -30°C -80°C
It is a 128x128 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, and various instruments, such as evaluation instruments, power system equipment, laboratory instruments, medical instruments, fire protection systems, temperature and humidity transmissions, pressure transmissions, analytical instruments, environmental protection testing instruments, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.
We can provide different customized services to meet your requirements:
1. LCD customized
2. FPC interface customized
3. Outdimension customized
4. Touch panel customized
5. Optical bonding optional
6. Brightness customized
7. Driver board customized
8. Serial control board customized
Q1: Do you offer samples?
-Yes, We offer free samples for you, and you just need to pay some shipping fee.
Q2: Do you provide customized services?
-Yes, we have a professtional team to provide ODM&OEM service. And pls give us more specific information and your requirments about your applications.
Q3: What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
Q4: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system. We have professional team and advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment.
Q5: Is there any warranty?
A: Yes, we offer 12 months warranty for our products.
