Product Details:
Payment & Shipping Terms:
|
| LCD Type: | Graphic | Dot: | 128x64 |
|---|---|---|---|
| Model Name: | LM24008M | DOT Color: | Sharp Blue |
| Weight: | Approx 120g | Blackground Color: | Grey |

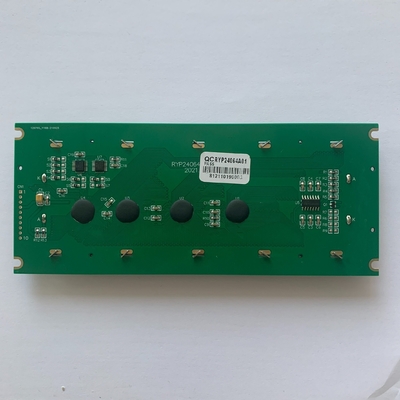

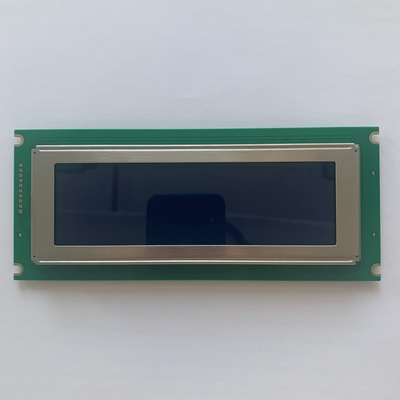

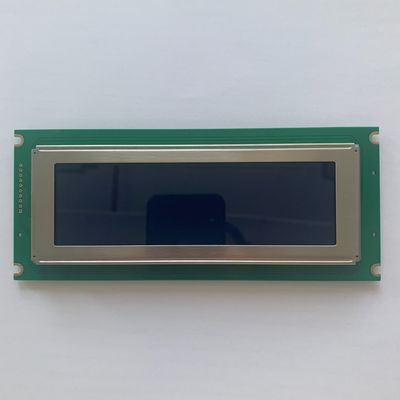

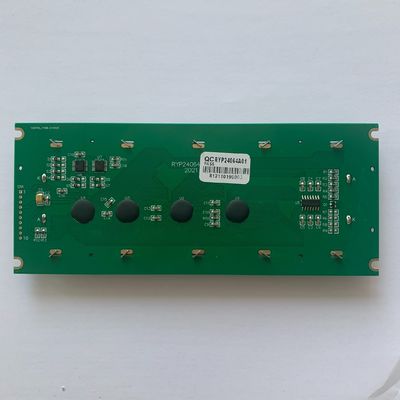

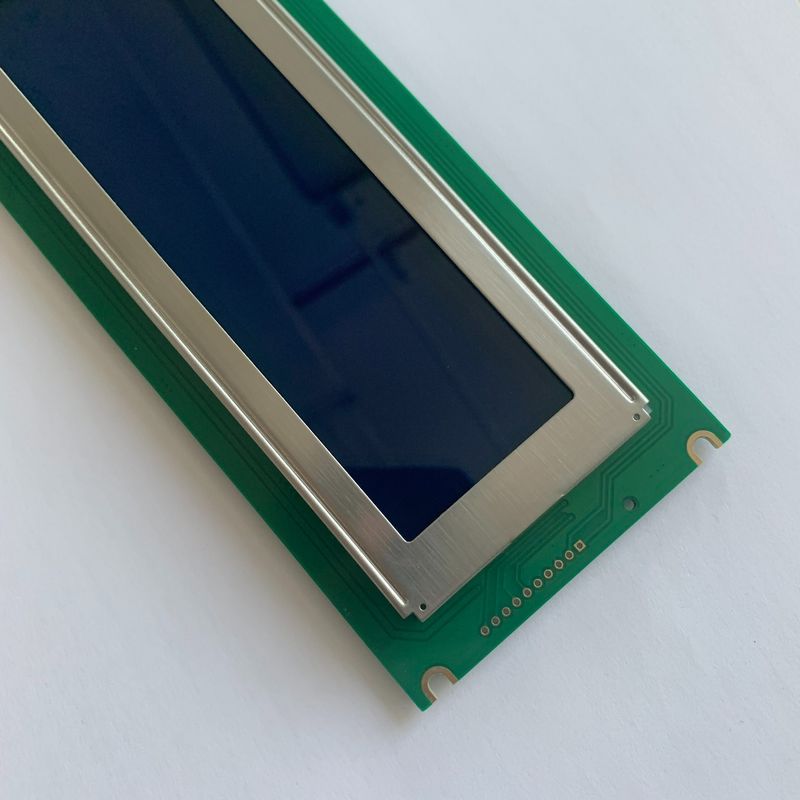

Dot-matric LCD unit LCD LM24008M is a 240x64 full dots graphic display unit. And it is a transflective type. One advantage of OLED displays is that each pixel emits its own light, allowing for precise control over individual pixels. When displaying predominantly dark content or black backgrounds, OLED pixels can be turned off, resulting in minimal power consumption for those pixels. This technology allows for each pixel to emit its own light, resulting in high contrast, deep blacks, and vibrant colors. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
The Datasheet of 128x64 Dots Graphic LCD Display Module
| ITEM | SPECIFICATION |
| Dot color | Sharp Blue |
| Dot Matrix | 240x64 |
| Outline Dimensions | 180(W) X75(H) X10.5(D) |
| Effective Viewing Area | 132.6(W)X39(H) |
| Display Format | 240 (W) X 64(H) |
| DOT Size | 0.48(W) X0.48(H) |
| DOT Spacing | 0.05 |
| Blackground Color | Grey |
| WEIGHT | 120 |
| Logic Supply Voltage | 6 |
| Wide range of operating temperature | -30 to 70 |
| Wide range of Storage temperature | -40 to 85 |
1. Strong structure: the backlight of the LCD module has a retaining wall, welded FPC (socket FPC optional)
2. IC has powerful functions and good stability
3. Low display power consumption
4. Simple interface and convenient command operation
5. Operating temperature: -20°C -70°C
6. Storage temperature: -30°C -80°C
It is a 128x64 dot matrix LCD screen with high image quality, wide viewing angle. All materials comply with environmental protection requirements and RoHS standards. This module is widely used in smart equipment, communication equipment, medical equipment, industrial control equipment, aerospace, security, furniture equipment, and various instruments, such as evaluation instruments, power system equipment, laboratory instruments, medical instruments, fire protection systems, temperature and humidity transmissions, pressure transmissions, analytical instruments, environmental protection testing instruments, etc. And the versatility and graphical capabilities of this module make it suitable for a wide range of applications where custom graphics and user interfaces are needed.
We can provide different customized services to meet your requirements:
1. LCD customized
2. FPC interface customized
3. Outdimension customized
4. Touch panel customized
5. Optical bonding optional
6. Brightness customized
7. Driver board customized
8. Serial control board customized
Q1: Do you offer samples?
-Yes, We offer free samples for you, and you just need to pay some shipping fee.
Q2: Do you provide customized services?
-Yes, we have a professtional team to provide ODM&OEM service. And pls give us more specific information and your requirments about your applications.
Q3: What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
Q4: How do you control quality?
A: All materials we purchase for making any orders are high quality and RoHS compliant, and Control quality with ISO 9001:2008, ISO 14001:2004 management system. We have professional team and advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment.
Q5: Is there any warranty?
A: Yes, we offer 12 months warranty for our products.
