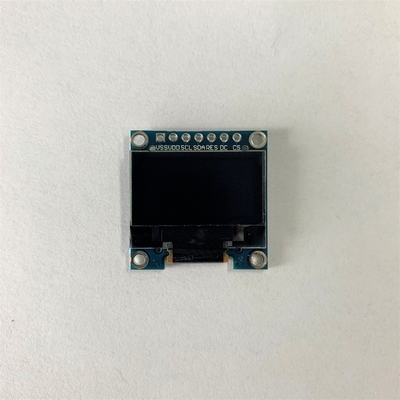

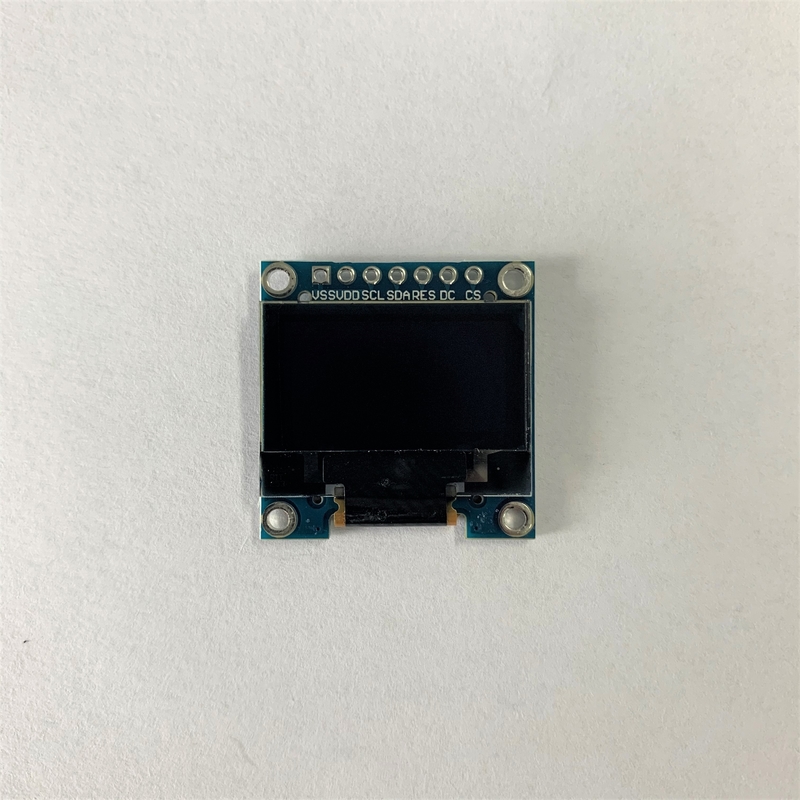

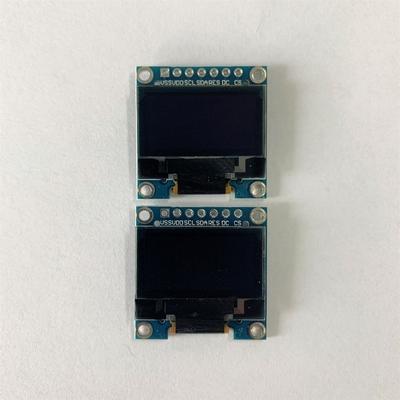

0.96'' OLED Display 128x64 Dots LCD Module with SSD1306 Driver IC
Product Describtion
One advantage of OLED displays is that each pixel emits its own light, allowing for precise control over individual pixels. When displaying predominantly dark content or black backgrounds, OLED pixels can be turned off, resulting in minimal power consumption for those pixels. This technology allows for each pixel to emit its own light, resulting in high contrast, deep blacks, and vibrant colors. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
The Datasheet of 0.96'' OLED Dispay
| ITEM |
SPECIFICATION |
| Display Size |
0.96 |
| Dot Matrix |
128x64 |
| Display |
OLED |
| VIEWING AREA |
23.74 (W) X 13.2(H) |
| DOT SIZE |
0.15X0.15 |
| DOT PITCH |
0.17(W) x0.17 (H) |
| Drive IC |
SSD130 |
| Drive Method |
VCC=3.3V~4.2V |
| Requirements On Environmentall Protectio |
ROHS |
| Wide range of operating temperature |
-30 to 70 |
| Wide range of Storage temperature |
-40 to 85 |
The Drawing of 0.96'' OLED Display
Product Features
OLED is an advanced display technology. Unlike traditional LCD screens, it does not require a backlight, but each pixel can emit light on its own. This self-luminous property gives OLED screens many advantages and a wide range of application scenarios.
1. High contrast: Each pixel can emit its own light, so OLED screens can achieve very high contrast, making the picture more vivid and clear.
2. Wide viewing angle: The self-illuminating properties of the OLED screen allow it to have a wider viewing angle range, maintaining a better display effect no matter which angle the screen is viewed from.
3. Thin and lightweight: Since it does not require a backlight, the structure of the OLED screen is simpler, making the screen thinner and lighter, and suitable for various thin and light devices.
4. Energy saving and environmental protection: The OLED screen only lights up the pixels when displaying content, while other areas are turned off, so the energy saving effect is significant and is conducive to environmental protection.
5. High refresh rate: The OLED screen has a fast response speed and can achieve a high refresh rate, which is better for playing videos, animations and other content.
6. Display transparency: OLED screens can be made into transparent displays and used in smart glass, transparent billboards and other scenes to create unique visual effects.
Product Applications
OLED displays have been widely used in smartphones, tablets, TVs, wearable devices, automotive displays, virtual reality headsets and other products. Its high contrast ratio, vivid colors and flexible properties have made OLED the display technology of choice for many consumer electronics products. Some common Application are can be seen in our daily life.
1. Industrial: Measuring & Meter, OA Equipment, POS & Server, Card Reader, Door Security, USB Key, Banking Device, Cryptocurrency, Hardware Wallet...
2. PC Peripheral: Keyboard, Mouse, Printer, Scanner, NAS, Digital Pen...
3. Communication: Mobile Phone, DECT Phone, Bluetooth Device, Router, Set-Top Box...
4. Automotive: Head Up Display, Car Audio, Speed Detector, ETC, Timer, Climate Control, Dashboard...
5. Medical: Glucose Meter, Oximeter, Blood-Pressure Meter, Thermometer, Beauty & Cosmetic Equipment...
6.Consuming: loT, Wearable Device, Remote Controller, Digital Camera, Game Machine, E-Cigarette, Audio Video Equipment...
Customized Service
We can provide different customized services to meet your requirements:
1. LCD customized
2. FPC interface customized
3. Outdimension customized
4. Touch panel customized
5. Optical bonding optional
6. Brightness customized
7. Driver board customized
8. Serial control board customized
FAQ
1.What's the MOQ of your product?
-Different MOQ requirements for bulk order.
2. How do you package the product?
-For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
3. How to deal with it if the goods are damaged when arrive?
-Please don't hesitate to contact me immediately, I will verify the damage and contact logistics soon to solve it for you ASAP.
4. What about the delivery time?
-For standard product,1 week for samples,4 weeks for bulk order; and for customization,3-4 weeks for samples,4 weeks for mass production after sample confirmation.
5. Is there any warranty for your products?
-Yes,we offer 12-month warranty for unartificial defect.
